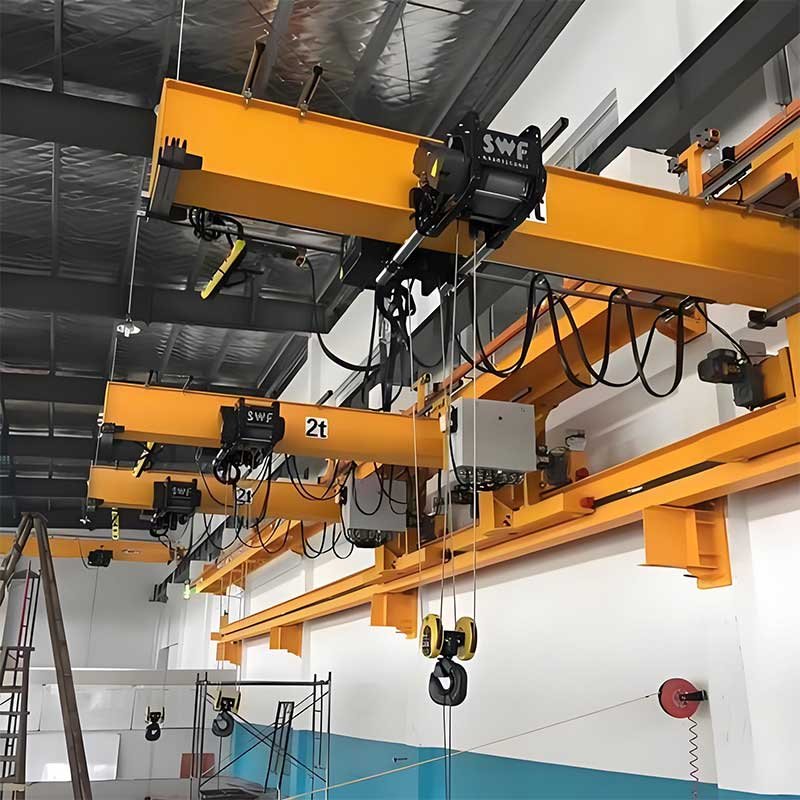

Wall Traveling Jib Crane
The wall traveling jib crane (also known as wall travelling jib crane or wall-mounted traveling jib crane) is one of the most widely used light-duty crane systems in industrial applications.
This type of crane is equipped with rails installed on factory walls, columns, or load-bearing beams, allowing the entire unit to travel longitudinally along the wall. At the same time, the jib arm can rotate, and the electric hoist can move horizontally along the jib, enabling efficient vertical lifting and wide-area coverage.
The wall traveling jib crane provides a cost-effective and space-saving lifting solution for factories, warehouses, workshops, logistics centers, and manufacturing plants.
As a professional wall traveling jib crane manufacturer, supplier, and exporter in China, MecBase offers high-quality and fully customizable solutions for global customers.
Technical Specifications (Wall Traveling Jib Crane Specifications)
The following technical specifications apply to our wall traveling jib crane, designed for flexible, efficient, and space-saving material handling along extended working areas.
This wall traveling jib crane is widely used in production lines, workshops, and warehouses, providing long-distance coverage along walls combined with precise lifting at multiple workstations, with fully customizable options available to meet specific project requirements.
| Parameter | Details |
| Rated Capacity | 0.5t / 1t / 2t / 3t / 5t (customizable) |
| Boom Length | Up to 8 meters |
| Traveling Rail Length | 10 – 60 meters |
| Work Duty | A3 / A4 |
| Power Supply | 220V / 380V / 440V, 50Hz / 60Hz |
| Control Mode | Pendant Control / Remote Control |
| Traveling Speed | 4 – 8 m/min |
| Rotation Angle | 180° – 270° |
Â
Why Choose an wall traveling jib crane?
- Large Coverage Area：The wall traveling jib crane can move along wall-mounted rails, significantly expanding the working range compared to standard jib cranes.
- Space-Saving Design：Installed along walls or columns, it maximizes workshop space utilization.
- Flexible & Efficient Operation：The combination of longitudinal traveling, jib rotation, and hoist movement enables precise positioning and efficient handling.
- Smooth & Reliable Performance：Provides stable starting and braking, ensuring safe and continuous operation.
- Durable & Long Service Life：Manufactured with high-quality steel and reliable components.
- Customizable Solutions：All parameters such as capacity, jib length, lifting height, and rail length can be customized based on project requirements.
Main Models & Configurations
We offer various types of wall traveling jib cranes, including:
By Capacity
- 0.5 ton wall traveling jib crane
- 1 ton wall traveling jib crane
- 2 ton wall traveling jib crane
- 3 ton wall traveling jib crane
- 5 ton wall traveling jib crane
Custom Solutions
- Customized wall traveling jib crane for special working conditions
- Extended rail systems for long-distance coverage
- Integration with overhead crane systems

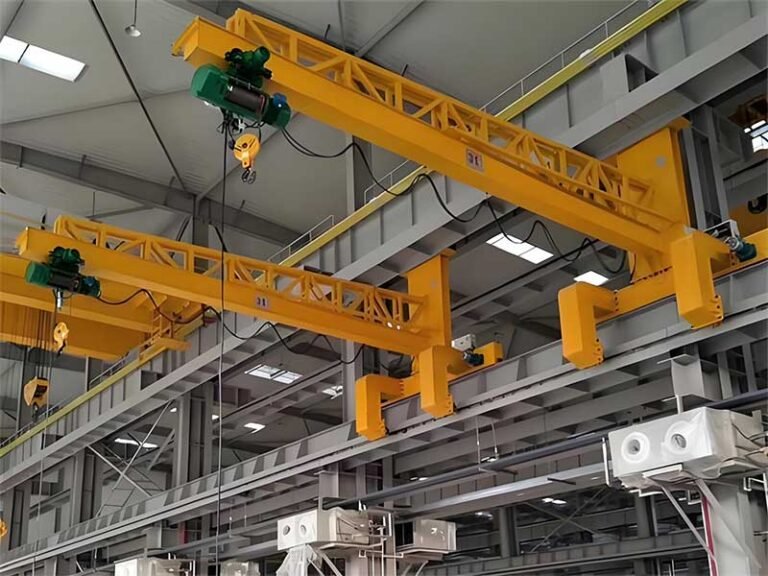

Applications
Wall traveling jib cranes are widely used in:
- Machinery processing and assembly workshops
- Warehouse and logistics material handling
- Mold and workpiece loading/unloading
- Automotive parts and hardware production
- Shipbuilding, railway, and maintenance workshops
- Space-saving light-duty lifting operations
Structural Composition
| Component | Function |
| Wall / Column Mounting Base | Fixed to wall or column, supports full load |
| Traveling Rail | Enables longitudinal movement along the wall |
| Slewing Mechanism | Allows jib rotation |
| Jib Arm | Supports hoist and horizontal movement |
| Electric Hoist | Performs vertical lifting |
| Control System | Pendant or remote control |
| Safety Devices | Limit switches, overload protection, etc. |
Â
Reference Price List
| Capacity | Boom Length | Rail Length | Price (USD) |
| 0.5 ton | 3–5 m | 10–20 m | $4,200 – $5,000 |
| 1 ton | 4–6 m | 15–30 m | $6,800 – $8,000 |
| 2 ton | 5–7 m | 20–40 m | $9,800 – $12,000 |
| 3 ton | 6–8 m | 25–50 m | $12,500 – $15,000 |
| 5 ton | 7–9 m | 30–60 m | $16,000 – $20,000 |
Prices vary depending on configuration and customization.
More Jib Crane Types
In addition to wall traveling jib cranes, we also offer:
- Wall Mounted Jib Crane
- Free Standing Jib Crane
- FEM Standard Jib Crane
- Articulated Jib Crane
- Balanced Jib Crane
Get a Quote for Wall Traveling Jib Crane
If you are looking for a reliable wall traveling jib crane for sale, MecBase provides:
- Professional consultation
- Customized engineering solutions
- Competitive factory pricing
- Fast global delivery
👉 Contact us today for a free quotation and technical support
FAQs About Wall Traveling Jib Crane
A crane installed on walls or columns that can move along rails, providing extended working coverage.
Typically from 0.5 ton to 10 tons, customizable.
Usually 3 m to 10 m, customizable.
- Pendant control
- Wireless remote control
- Strong load-bearing wall or column
- Stable and level installation surface
- Adequate working space for rotation
