Workstation Jib Cranes
Workstation Jib Cranes are widely used in industrial environments for efficient, flexible, and space-saving material handling at individual workstations. Designed to improve productivity and ergonomics, these cranes provide smooth operation, precise positioning, and reliable performance for repetitive lifting tasks.
Workstation jib cranes are available in multiple configurations, including wall-mounted jib cranes, wall-traveling jib cranes, and pillar (free-standing) jib cranes, offering versatile solutions for different workspace layouts and operational requirements.
The wall-mounted jib crane (cantilever crane) features an I-beam main girder fixed to walls or steel columns using specially designed brackets, allowing up to 180° rotation. This design eliminates the need for floor space while ensuring efficient and convenient lifting within a defined workstation area.
As a professional China workstation jib crane manufacturer and supplier, MecBase specializes in ergonomic design, structural calculation, and customized engineering solutions, delivering reliable and cost-effective lifting systems tailored for modern production lines and workstation applications.
Technical Specifications – Workstation Jib Cranes
The following technical specifications apply to our Workstation Jib Cranes, engineered for ergonomic lifting, high efficiency, and optimized workstation productivity.
Our workstation jib crane systems are widely used in assembly lines, production cells, workshops, and warehouses, enabling precise, repetitive lifting with minimal operator effort.
With modular design and flexible configurations, all specifications can be fully customized to meet specific workstation and workflow requirements.
Key Features of Workstation Jib Cranes
- Ergonomic Design for Workstations
Reduces manual handling and improves operator safety - Flexible Rotation (90°–360°)
Adaptable to different workstation layouts - Compact & Space-Saving Structure
Ideal for confined production environments - Smooth & Precise Operation
Compatible with electric chain hoists and optional VFD control - Multiple Installation Options
Wall-mounted, pillar-mounted, or wall-traveling systems - Easy Installation & Low Maintenance
Modular design reduces installation time and cost
| Parameter | Specification |
| Lifting Capacity | 0.25 – 3 ton |
| Arm Length (Radius) | 2 – 8 m (up to 10 m for light loads) |
| Lifting Height | 2 – 6 m (customized available) |
| Work Duty | A3 / A4 |
| Rated Voltage | 220V – 690V, 50–60Hz, 3 Phase AC |
| Working Temperature | -10℃ to +40℃ |
| Relative Humidity | ≤ 85% |
| Control Mode | Pendant Control / Remote Control |
| Rotation Angle | 180° / 270° / 360° |
| Hoist Type | Electric Chain Hoist |
| Reference Price Range | $800 – $4,500 / set |
Why Choose a Workstation Jib Crane?
Choosing a Workstation Jib Crane provides an efficient and ergonomic solution for repetitive lifting tasks at individual workstations.
Ergonomic & Space-Saving Design
Designed specifically for workstation use, these cranes reduce operator fatigue while maximizing workspace efficiency.
Easy Installation & High Flexibility
Modular structure allows quick installation, relocation, and integration into production lines.
Safe & Reliable Operation
Equipped with essential safety features such as:
- Overload protection
- Limit switches
- Emergency stop systems
Smooth & Controlled Performance
Ensures:
- Precise positioning
- Stable lifting and rotation
- Reduced manual effort
Customizable Configurations
Available in multiple designs:
- Wall-mounted workstation jib crane
- Pillar (free-standing) workstation jib crane
- Wall-traveling workstation jib crane
- Articulating jib crane (for complex movements)

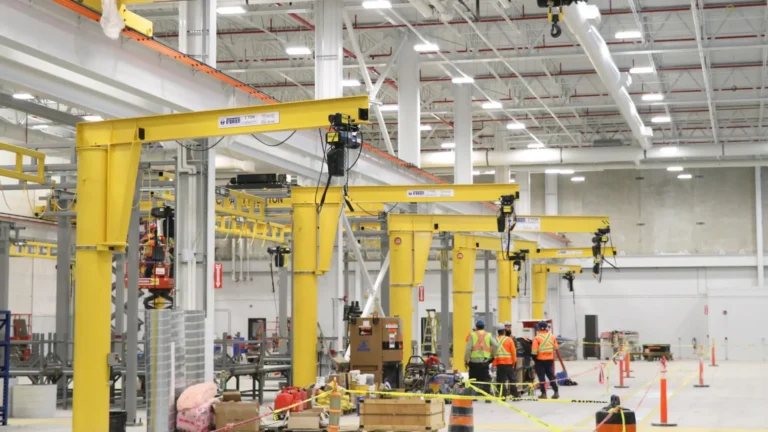

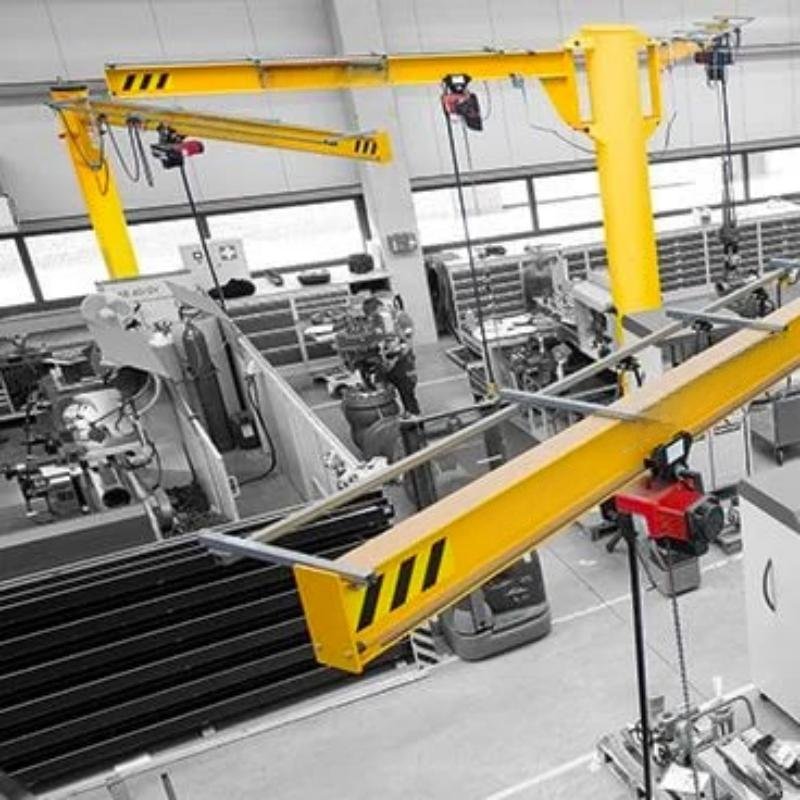

Applications of Workstation Jib Cranes
Workstation jib cranes are widely used in:
- Assembly and production lines
- Machine shops and maintenance areas
- Warehousing and logistics operations
- Manufacturing plants
- Welding and light fabrication workshops
They are ideal for high-frequency, small-load lifting tasks at individual workstations.
Structure & Components of Workstation Jib Crane
| Component | Function |
| Column / Wall Bracket | Supports the crane structure (pillar or wall-mounted) |
| Jib Arm | Main beam (I-beam / box girder) carrying the load |
| Slewing Mechanism | Enables rotation (90°–360° depending on type) |
| Electric Hoist | Lifting mechanism (chain or wire rope hoist) |
| Trolley | Moves hoist along the jib arm |
| Control System | Controls lifting and rotation |
| Safety Devices | Overload protection, limit switches, etc. |
Get a Quote for Workstation Jib Crane
Looking for a reliable Workstation Jib Crane supplier?
- Professional consultation
- Customized design solutions
- Competitive pricing
- Fast global delivery
👉 Contact us today for a free quotation and technical support
FAQs About FEM Standard Jib Crane
A Workstation Jib Crane is a light-duty lifting device designed for individual workstations, used to handle materials efficiently in assembly lines, workshops, and production areas. It improves productivity while reducing manual handling.
Most workstation jib cranes use:
- Electric chain hoist (most common)
Wire rope hoists may be used for higher capacities.
Yes. They are designed for frequent and repetitive operations, especially in assembly and production environments.
- Overload protection
- Limit switches
- Emergency stop system
- Motor protection
Optional features:
- Soft start (VFD)
- Anti-collision systems
You should consider:
- Load capacity
- Arm length (working radius)
- Lifting height
- Installation conditions (wall or floor)
- Frequency of use
👉 Consulting a professional supplier ensures the best fit for your application.
