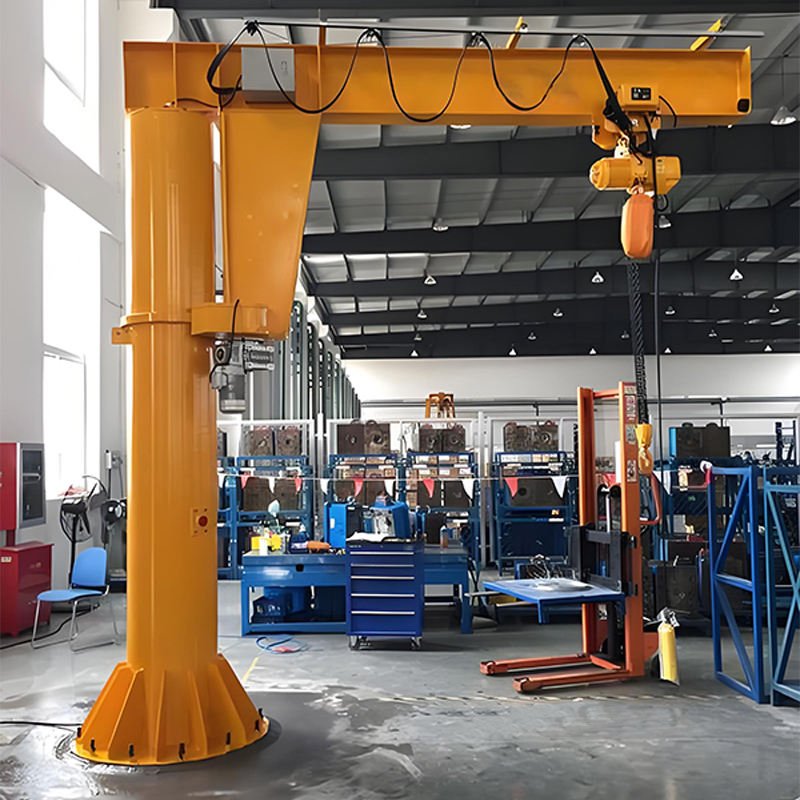

Free Standing Jib Cranes
The free standing jib crane, also known as the pillar jib crane, is our most widely used crane model. It provides cost-effective material handling solutions with a lifting capacity ranging from 0.5 tons to 16 tons and a maximum boom length of up to 12 meters, making it suitable for a variety of applications in factories, warehouses, workshops, logistics centers, and manufacturing plants.
MecBase is a professional China free standing jib crane supplier, specializing in free standing jib crane design and free standing jib crane design calculation. We provide high-quality lifting equipment and customized solutions to customers worldwide.
Whether you need a 1 ton free standing jib crane or a 5 ton free standing jib crane, our engineering team can deliver tailored solutions based on your project requirements.
Technical Specifications (free standing jib crane specifications)

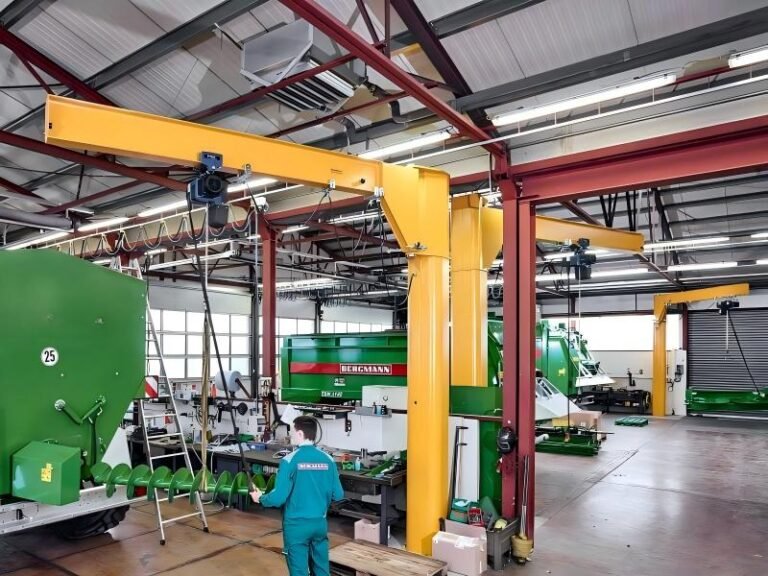

The following technical specifications apply to our free standing jib cranes, designed for simple, reliable, and cost-effective material handling in a wide range of industrial environments. These cranes are widely used in maintenance work, workshops, warehouses, and light to medium-duty applications, with customizable options available to meet specific project requirements.
| Parameter | Details |
| Rated Capacity | 0.25t / 0.5t / 1t / 2t / 3t / 5t / 8t / 10t / 12t / 16t (customizable) |
| Boom Length | Up to 12 meters (customizable) |
| Lifting Height | 0.5m to 10m |
| Work Duty | A3 / A4 / A5 |
| Power Supply | 380V, 50Hz, 3-phase AC |
| Control Mode | Pendant Control / Remote Control / Pendant + Remote Control |
| Traveling Speed | 14 m/min, 20 m/min |
Product Advantages
- Small footprint, maximizing space utilization
- Easy to install and flexible to operate
- Safe and reliable, with low maintenance and operating costs
- High efficiency for workstation handling
- Smooth and stable movement
- Customizable design
Main Models and Applications
We offer various models to meet different operational needs:

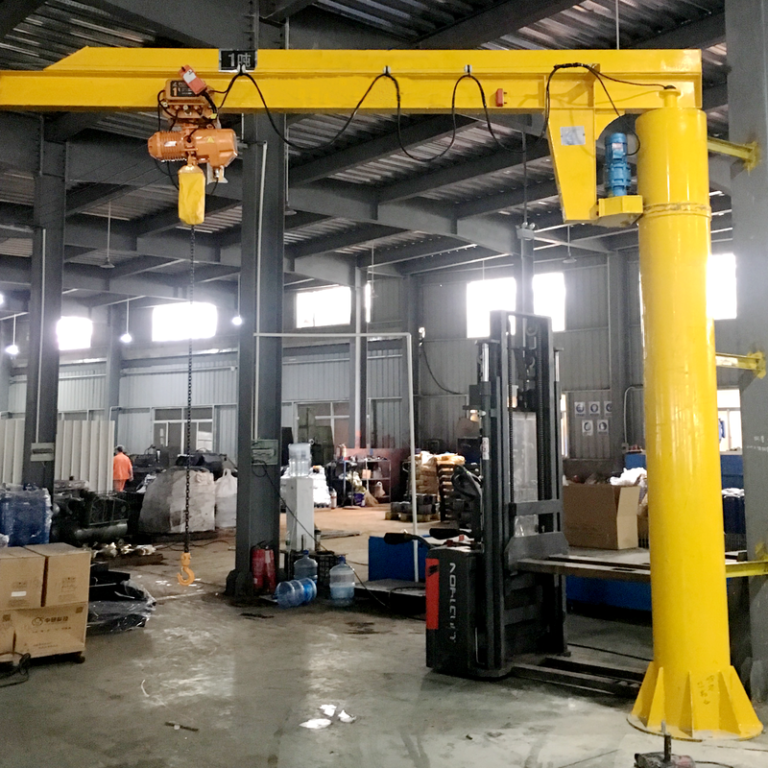

- 1 ton free standing jib crane
- 5 ton free standing jib crane
- Light duty free standing jib crane
- Heavy duty free standing jib crane
- Free standing I-beam jib crane
- Free standing articulating jib crane light duty
- Free standing workstation jib crane
- Free standing jib crane portable base
We also provide HD free standing jib crane and free standing pedestal jib crane series.
Free standing jib cranes are widely used in:
- Machining workshops
- Assembly production lines
- Warehouses and logistics loading areas
- Mold workshops and tool rooms
- Steel structures, foundries, and welding workshops
- Construction sites and outdoor working areas
For overseas markets such as Canada, we offer free standing jib crane canada solutions that meet local standards.
Structural Composition
| Component | Function |
| Column | Supports the entire crane, bearing all loads |
| Boom / Jib | Provides working radius, allowing the hoist to move along it |
| Slewing Mechanism | Enables 360掳 rotation of the boom |
| Electric Hoist | Lifts and lowers loads vertically |
| Trolley | Drives the hoist horizontally along the boom |
| Control System | Controls lifting, slewing, and traveling movements |
| Foundation Base | Fixes the crane firmly to the ground, ensuring stability |
| Safety Devices | Includes limit switches, overload protection, etc., to ensure safe operation |
Reference Price List (free standing jib crane price)
| Lifting Capacity | Boom Length (m) | Lifting Height (m) | Power Supply | Reference Price (USD) |
| 0.5 ton | 3 – 12 | 3 – 10 | 380V, 50Hz, 3ph AC | $1,500 – $5,000 |
| 1 ton | 3 – 12 | 3 – 10 | 380V, 50Hz, 3ph AC | $2,000 – $7,000 |
| 2 ton | 3 – 12 | 3 – 10 | 380V, 50Hz, 3ph AC | $2,500 – $9,000 |
| 3 ton | 3 – 12 | 3 – 10 | 380V, 50Hz, 3ph AC | $3,000 – $15,000 |
| 5 ton | 3 – 12 | 3 – 10 | 380V, 50Hz, 3ph AC | $5,000 – $20,000 |
| 10 ton | 3 – 12 | 3 – 10 | 380V, 50Hz, 3ph AC | $15,000 – $35,000 |
Foundation and Installation
We provide comprehensive free standing jib crane foundation design services, including the design and supply of free standing jib crane foundation anchor systems.
We also offer detailed free standing jib crane installation manual and support free standing jib crane installation guidance to ensure safe and proper commissioning.
More Jib Cranes Types
- Wall Mounted Jib Cranes
- Wall Travelling Jib Cranes
- FEM Standard Jib Cranes
- Articulating Jib Cranes
- Balance Jib Cranes
Get a Quote for Free Standing Jib Crane
If you are looking for a reliable free standing jib crane tailored to your operational needs, please contact MecBase for professional consultation and a competitive free standing jib crane price quotation.
FAQs About Free Standing Jib Crane
A free standing jib crane, also known as a pillar jib crane, is a type of overhead material handling equipment consisting of a vertical column (pillar) and a horizontal boom (jib) that can rotate 360°. It is designed to provide efficient lifting and load positioning in a defined work area without requiring support from the building structure.
Most free standing jib cranes are equipped with a slewing mechanism that allows the boom to rotate 360° manually (by hand) or electrically (with a motorized rotation system), depending on the model and user preference.
Free standing jib cranes are compatible with various hoist types, including:
- Manual chain hoists
- Electric chain hoists
- Electric wire rope hoists
- Air hoists (for explosive or hazardous environments)
The hoist typically travels along the boom via a trolley for horizontal load positioning.
Yes. A properly designed foundation is essential to ensure stability and safety. The foundation typically consists of a reinforced concrete base with anchor bolts to secure the column. MecBase provides foundation design drawings and installation manuals with each crane.
Yes. We offer full customization, including:
- Lifting capacity
- Boom length
- Lifting height
- Rotation type (manual or motorized)
- Hoist type and brand
- Control method
- Corrosion protection for outdoor or harsh environments
- Special colors or coatings
To select the appropriate crane, consider:
- Maximum load weight
- Working radius (distance from column to load)
- Lifting height
- Frequency of use
- Environmental conditions (indoor/outdoor, temperature, corrosive factors)
- Power availability (electric or manual)
Our engineering team can assist with selection and provide a tailored solution.
