Articulating Jib Cranes
The articulating jib crane, also known as the articulated jib crane, is one of the most flexible and efficient lifting solutions in modern industry. Featuring a multi-joint articulating arm design, it allows operators to easily maneuver around obstacles and perform precise material handling in confined or complex workspaces.
With a lifting capacity typically ranging from 50 kg to 5 tons and a maximum boom length of up to 10 meters, the articulating jib crane is widely used in factories, warehouses, workshops, logistics centers, and manufacturing plants where space optimization and flexibility are critical.
MecBase is a professional China articulating jib crane manufacturer and supplier, specializing in articulated jib crane design and engineering calculation. We provide high-quality lifting equipment and customized solutions to customers worldwide.
Whether you need a light duty articulating jib crane, a portable articulating jib crane, or a wall mounted articulating jib crane, our engineering team can deliver tailored solutions based on your project requirements.
Technical Specifications of Articulating Jib Cranes
The following technical specifications apply to our articulating jib cranes, designed for flexible, efficient, and space-saving material handling in complex working environments.
Our articulated jib cranes are widely used in precision assembly, maintenance operations, and multi-station lifting applications, with fully customizable options available to meet specific project requirements.
| Parameter | Specification |
| Capacity | 50 kg – 5 ton |
| Boom Length | Up to 10 m (customizable) |
| Lifting Height | 6 – 15 m |
| Duty Class | A3 / A4 |
| Power Supply | 380V / 50Hz / 3-phase (optional 110V/230V) |
| Control Mode | Pendant / Button / Remote |
| Traveling Speed | 6.5 – 40 m/min |
Why Choose an Articulated Jib Crane?
Choosing the right articulated jib crane can significantly improve efficiency and safety. Unlike traditional cranes, articulating arm jib cranes allow:
- Multi-angle positioning
- Obstacle avoidance
- Compact operation in tight spaces
- High precision material handling
Because of these advantages, articulating jib cranes are becoming one of the most popular lifting solutions worldwide.
Types of Articulating Jib Cranes
Wall Mounted Articulating Jib Crane
A wall mounted articulating jib crane is installed on a load-bearing wall and typically provides 180° rotation. It is ideal for workshops with limited floor space.

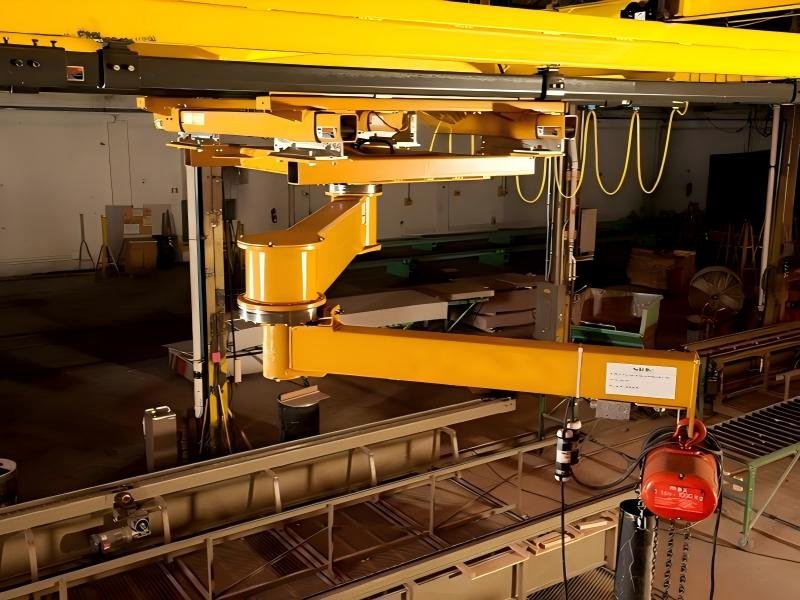

Ceiling Mounted Articulating Jib Crane
A ceiling mounted articulating jib crane is suspended from the building structure, maximizing ground space efficiency.

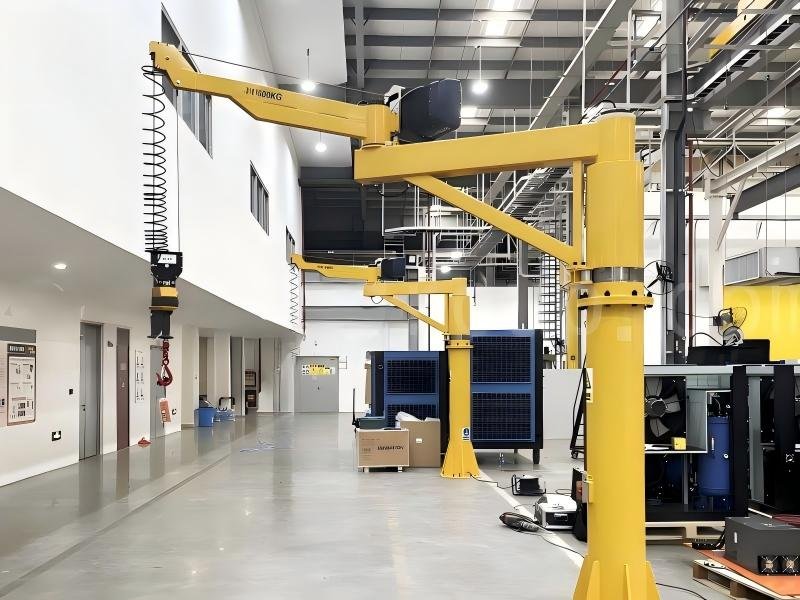

Column Mounted Articulating Jib Crane
The column mounted articulating jib crane is fixed on a concrete foundation and offers full 360° rotation.

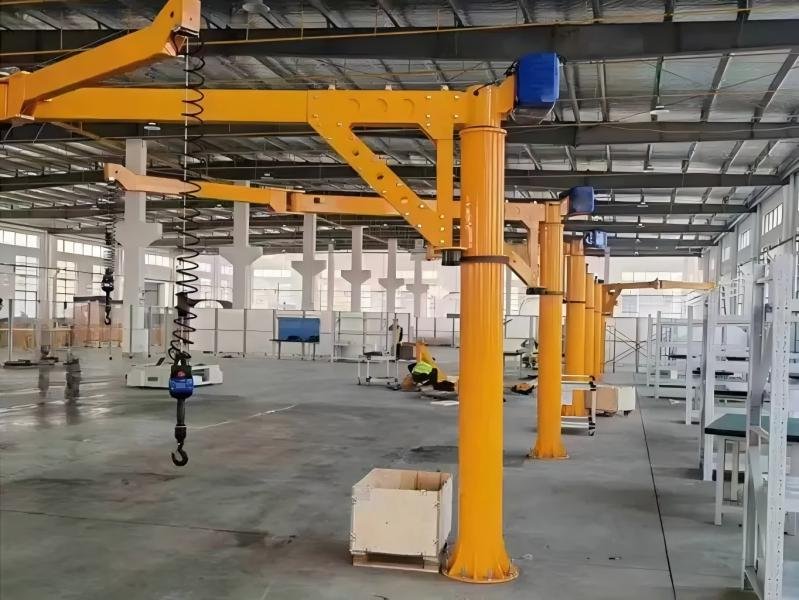

Free Standing Articulating Jib Crane
A free standing articulating jib crane (or freestanding articulating jib crane) is independently installed on the floor, providing flexible layout options.

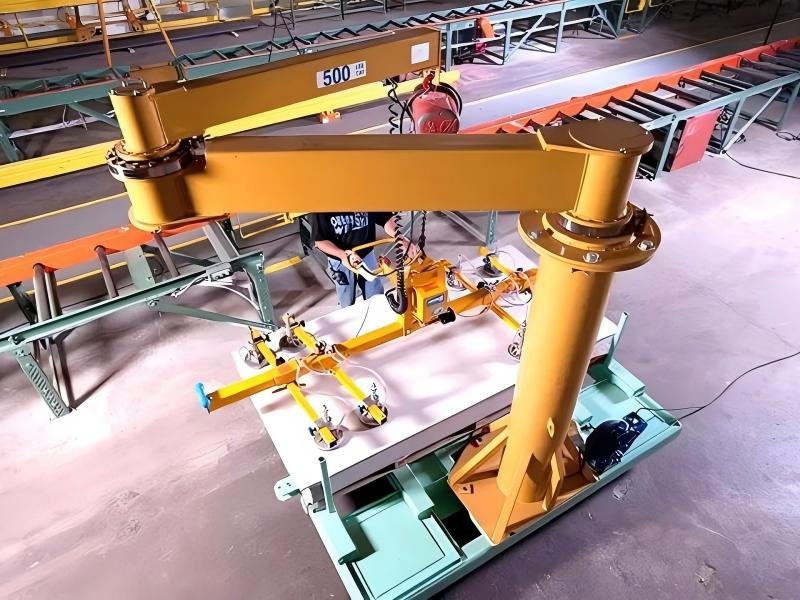

Portable Articulating Jib Crane
A portable articulating jib crane or portable articulated jib crane is designed for mobility and multi-station use.

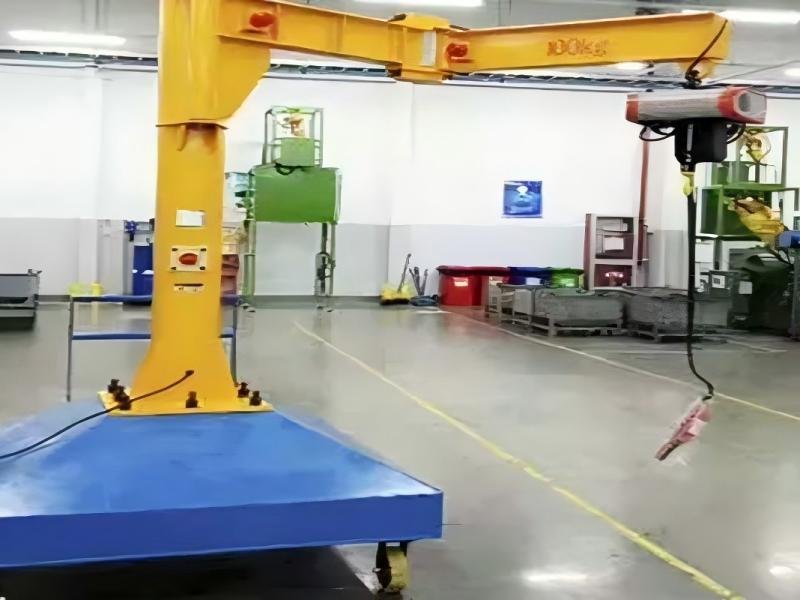

Mobile Articulated Jib Crane
A mobile articulated jib crane allows easy relocation and is suitable for temporary lifting tasks.

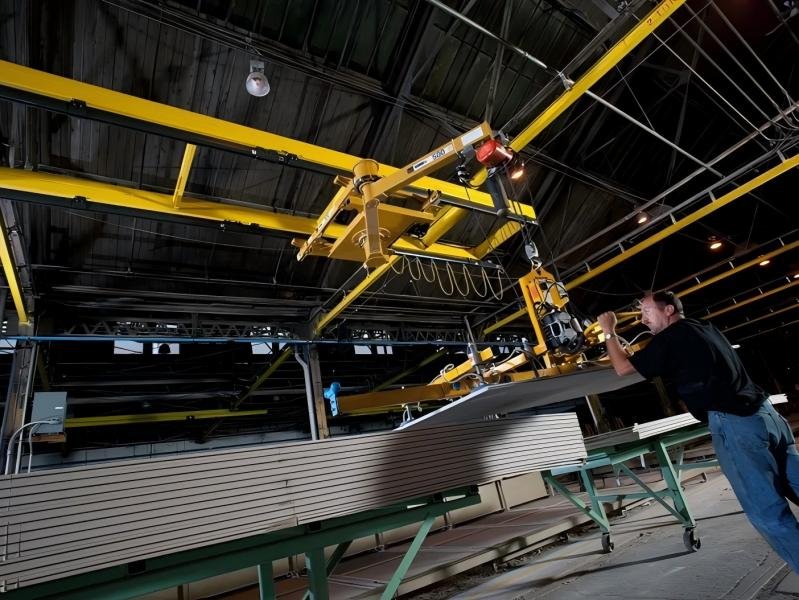

Bridge Mounted Articulating Jib Crane
The bridge mounted articulating jib crane integrates with overhead crane systems for extended coverage.

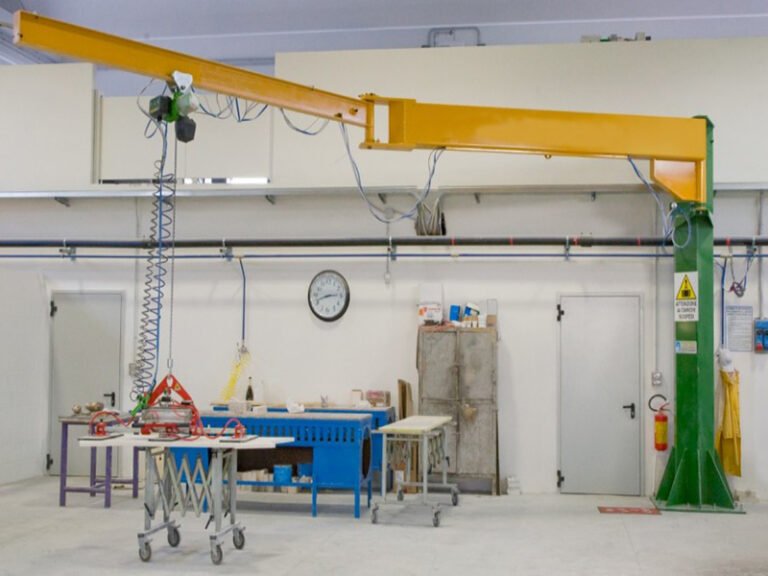

Applications of Articulating Jib Cranes
Articulating jib cranes are widely used in:
- Machinery manufacturing
- Warehouse & logistics handling
- Mold and component transfer
- Automotive parts production
- Precision assembly
Small models such as small articulating jib crane are ideal for light industrial tasks.
Articulating Jib Crane Parts & Accessories
We supply complete articulating jib crane parts, including:
- Articulating arms
- Hoists and lifting mechanisms
- Control systems
- Safety devices
High-quality components ensure long service life and reliable performance.
Articulating Jib Crane Price
The articulating jib crane price varies depending on capacity, boom length, and installation type.
Typical price range:
| Capacity | Boom Length | Installation | Price |
| 50 kg | 1.5–2.5 m | Portable | $1,100–1,800 |
| 100 kg | 2–3 m | Portable | $1,300–2,200 |
| 250 kg | 2.5–4 m | Portable / Wall | $1,800–4,000 |
| 0.5 ton | 3–6 m | Wall | $4,200–5,500 |
| 1 ton | 4–8 m | Wall / Column | $6,000–9,000 |
| 2 ton | 5–10 m | Column | $9,200–12,000 |
| 5 ton | 6–12 m | Column | $18,000–25,000 |
For an accurate articulating jib crane price, it is recommended to request a customized quotation.
More Articulating Jib Crane Types
In addition to articulated jib crane and articulating jib crane, we also supply:
- Wall Mounted Jib Cranes
- Freestanding (floor-mounted) cantilever crane
- FEM standard cantilever crane
- Wall Travelling Jib Cranes
- Balanced jib crane
Get Your Articulating Jib Crane Quote Today
If you are looking for:
- Articulating jib crane manufacturers
- Portable articulating jib crane
- Wall-mounted articulating jib cranes
- Custom articulating jib crane design
👉 Contact us now for a free quotation and technical consultation.
FAQs About Articulating Jib Cranes
It is a kind of jib crane with hinged boom, which can fold and rotate to bypass obstacles and work in narrow space.
Articulating type has multi-joint folding boom; standard type uses single fixed boom.
Normally 0.05t–10t, customized for over 10t.
Yes, with anti-rust, weather-proof treatment.
Wall-mounted: 180°; column-mounted: 360°.
Yes, to meet safety and load-bearing standards.
Regular lubrication, wire rope & electrical inspection, monthly check & yearly overall maintenance.
Overload limiter, limit switch, emergency stop, slewing stopper, etc.
