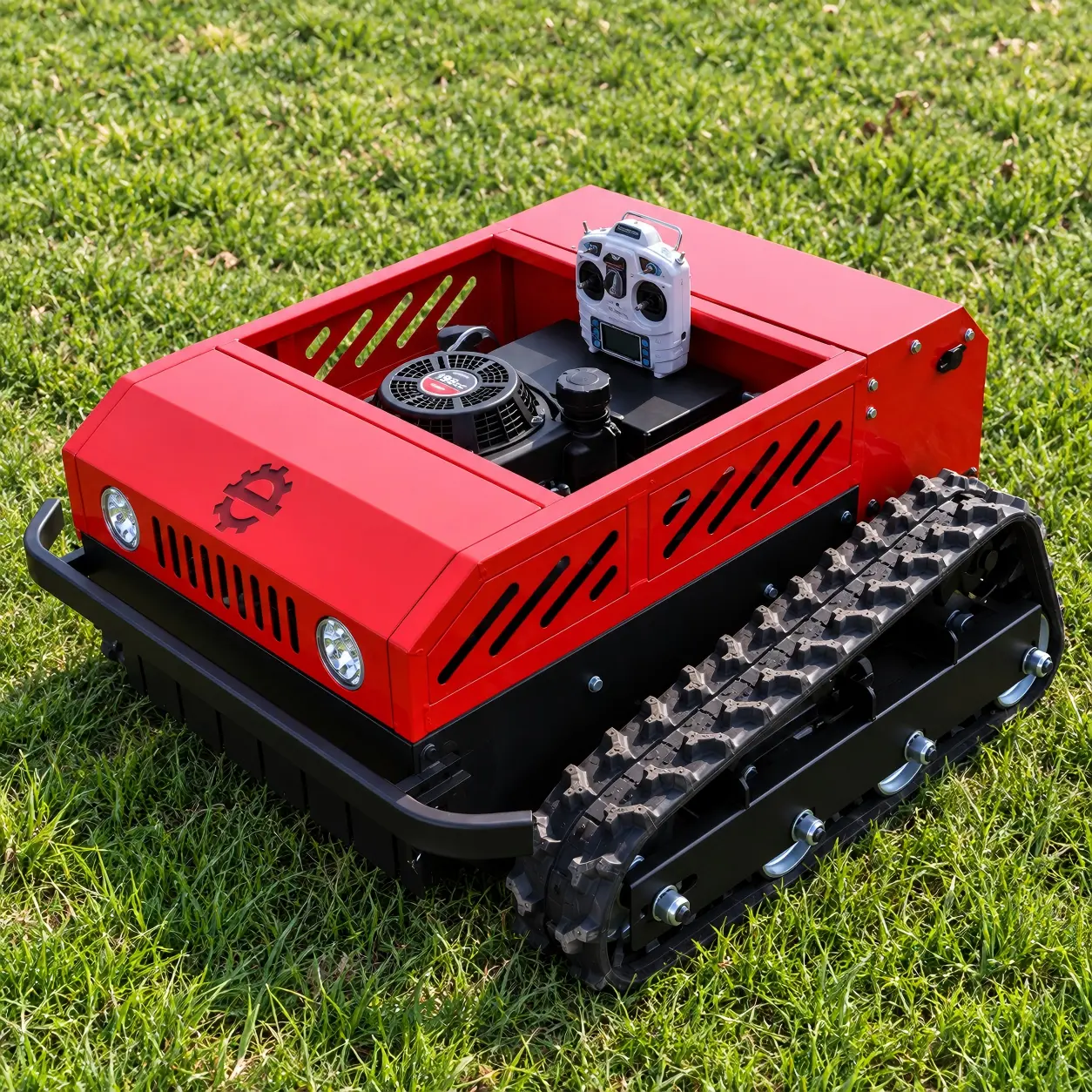

SDL224-55B Tracked Remote Control Mower
Compact tracked remote control mower with higher-power dual drive motors for slopes, orchards and vegetation management.
The SDL224-55B combines a 550 mm cutting width, 224 cc Loncin gasoline engine and dual 800 W electric track motors. Compared with the SDL224-55A, its higher drive-motor output and heavier tracked platform provide an alternative configuration for demanding terrain and vegetation management applications.
550 mm Cutting Width · 224 cc Engine · 800 W × 2 Drive · 175 kg
Higher-Power Tracked Drive in a Compact Platform
The SDL224-55B uses two 800 W electric drive motors with a tracked self-propelled system. Its compact 550 mm cutting width makes it suitable for working around orchards, landscaped areas, slopes and locations where larger mowing equipment may have limited maneuverability.
Wireless remote operation allows the operator to control the mower from a distance.
Key Features
800 W × 2 Tracked Drive
Dual electric drive motors power the tracked propulsion system for maneuvering across uneven terrain.
550 mm Cutting Width
Compact cutting width for orchards, slopes and areas with restricted access.
224 cc Loncin Engine
4-stroke gasoline engine combined with a 2,000 W onboard generator.
Wireless Remote Control
Remote operation allows the mower to be controlled from a distance.
10–180 mm Cutting Height
Wide cutting-height adjustment for different grass and vegetation conditions.
Technical Specifications
| Specification | Details | Specification | Details |
| Model | SDL224-55B | Product Type | Tracked Remote Control Mower |
| Cutting Width | 550 mm | Cutting Height | 10–180 mm |
| Travel Speed | 0–3 km/h | Max. Working Slope | <45°* |
| Operation | Wireless Remote Control | Drive System | Electric Tracked Self-Propelled |
| Drive Motors | 800 W × 2 | Drive Voltage | 24 V |
| Max. Remote Range | 680 m* | Charging System | Engine Self-Charging |
| Generator Output | 2,000 W | Fuel Tank Capacity | 1.9 L |
| Engine Brand | Loncin | Engine Displacement | 224 cc |
| Engine Type | Gasoline, Vertical Shaft, 4-Stroke | Starting System | Electric Start |
| Machine Dimensions | 1020 × 1000 × 510 mm | Machine Weight | 175 kg |
| Package Dimensions | 1100 × 1080 × 670 mm | Gross Weight | 207 kg |
| Applications | Slopes, Orchards, Landscaping, Lawns | Vegetation | Tall Grass & Weeds |
* Manufacturer-rated value. Actual slope capability and remote-control range may vary depending on terrain, surface conditions, obstacles and operating conditions.
Typical Applications
Slopes & Embankments
Tracked mobility for vegetation maintenance on sloped and uneven terrain.
Orchards
Compact 550 mm cutting width for maneuvering around trees and restricted working areas.
Tall Grass & Weeds
Adjustable cutting height for different vegetation conditions.
Landscaping
Remote-controlled mowing for landscaped areas and general vegetation maintenance.
Find the Right Mower for Your Application
Tell us your terrain, vegetation type, working slope, working area and required cutting width.
MecBase can help you compare available remote control mower configurations and select a suitable model for your application.
SDL224-55A vs SDL224-55B
| Specification | SDL224-55A | SDL224-55B |
| Cutting Width | 550 mm | 550 mm |
| Engine | Loncin 224 cc | Loncin 224 cc |
| Drive Motors | 500 W × 2 | 800 W × 2 |
| Machine Weight | 131 kg | 175 kg |
| Cutting Height | 20–180 mm | 10–180 mm |
| Travel Speed | 0–3 km/h | 0–3 km/h |
| Generator | 2,000 W | 2,000 W |
| Positioning | Compact & Lightweight | Higher-Power Tracked Drive |
SDL224-55A — Choose the lighter 131 kg configuration when compactness and transportability are priorities.
SDL224-55B — Choose the 800 W × 2 drive configuration when higher drive-motor output and a heavier tracked platform are preferred.
How to Choose the Right Remote Control Mower
Before selecting the SDL196-50A or a larger tracked model, consider:
Terrain — lawn, uneven ground, slope or rough terrain?
Vegetation — maintained grass, weeds or dense vegetation?
Working slope — what angle will the machine normally work on?
Access width — does the machine need to pass through gates or narrow areas?
Cutting width — is maneuverability or mowing coverage more important?
Operating time — how many hours will the mower normally work?
For more demanding slopes, rough terrain or heavier vegetation, a tracked or heavier-duty mower configuration may be more appropriate.
