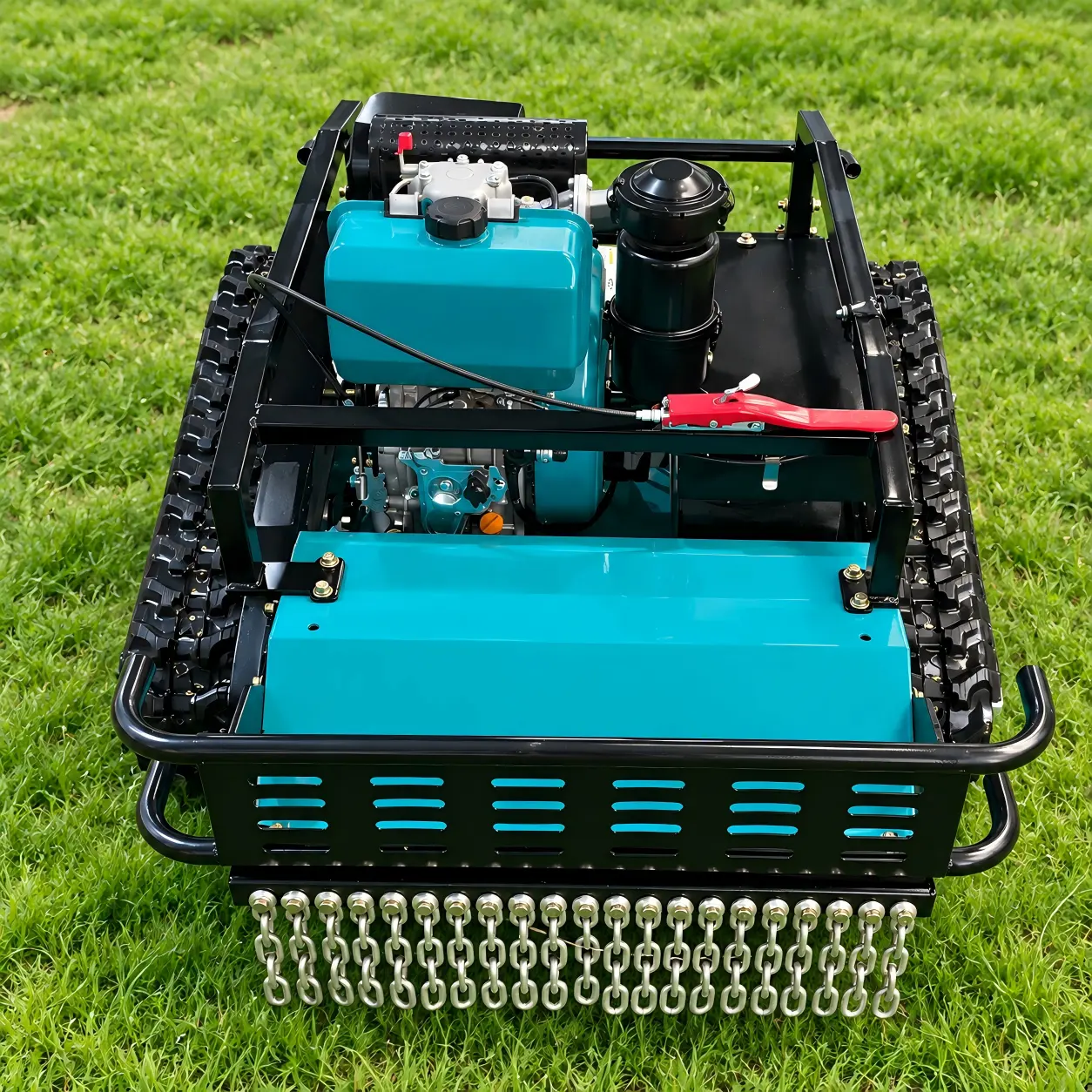

SDL Diesel 188-60A Tracked Remote Control Mower
Compact diesel tracked remote control mower for orchards, slopes, tall grass and confined working areas.
The SDL Diesel 188-60A combines a 600 mm cutting width, Yuchai Diesel 188 engine and dual 600 W electric track motors in a compact 188 kg platform. Its smaller dimensions make it suitable for orchards, landscaping and vegetation management applications where maneuverability and diesel power are both required.
600 mm Cutting Width · Yuchai Diesel Engine · 600 W × 2 Drive · 188 kg
Compact Diesel Power for Versatile Mowing
The SDL Diesel 188-60A is the compact model in the MecBase diesel tracked mower range.
With a 600 mm cutting width and 188 kg machine weight, it offers a smaller alternative to the 800 mm and 1000 mm Diesel 195 models. Electric tracked propulsion and wireless remote control make it suitable for vegetation management across orchards, slopes and uneven ground.
Key Features
600 mm Cutting Width
Compact cutting width for orchards, narrow access areas and smaller working spaces.
Yuchai Diesel 188 Engine
Diesel-powered configuration in a compact tracked platform.
600 W × 2 Tracked Drive
Dual electric drive motors provide tracked self-propelled movement.
32 Swinging Blades
Multi-blade cutting system for grass, weeds and vegetation management.
Wireless Remote Control
Allows the operator to control the mower from a distance.
Technical Specifications
| Specification | Details | Specification | Details |
| Model | SDL Diesel 188-60A | Product Type | Diesel Tracked Remote Control Mower |
| Cutting Width | 600 mm | Travel Speed | 0–3 km/h |
| Max. Working Slope | <45°* | Operation | Wireless Remote Control |
| Drive System | Electric Tracked Self-Propelled | Drive Motors | 600 W × 2 |
| Drive Voltage | 24 V | Max. Remote Range | 680 m* |
| Charging System | Engine Self-Charging | Generator Output | 1,500 W |
| Engine Brand | Yuchai | Engine Model | Diesel 188 |
| Fuel Type | No. 0 Diesel | Fuel Tank Capacity | 5.5 L |
| Starting System | Electric / Recoil Start | Track Type | Engineering Rubber Track |
| Blade System | 32 Swinging Blades | Transmission | V-Belt |
| Machine Dimensions | 1280 × 1040 × 700 mm** | Machine Weight | 188 kg |
| Package Dimensions | 1380 × 1140 × 860 mm | Gross Weight | 238 kg |
| Applications | Slopes, Orchards, Landscaping | Vegetation | Tall Grass & Weeds |
Typical Applications
Orchards
Compact 600 mm cutting width for vegetation management around trees and restricted working areas.
Slopes & Uneven Terrain
Tracked propulsion and remote operation for vegetation maintenance across uneven ground.
Tall Grass & Weeds
32-blade cutting system for grass, weeds and general vegetation management.
Landscaping
Compact tracked dimensions for green areas and locations where larger diesel mowers may be less maneuverable.
Find the Right Diesel Mower
Tell us your terrain, vegetation type, working slope, working area and required cutting width.
MecBase can help you compare gasoline and diesel remote control mower configurations for your application.
SDL Diesel 188-60A vs SDL Diesel 195-80B
| Specification | SDL Diesel 188-60A | SDL Diesel 195-80B |
| Cutting Width | 600 mm | 800 mm |
| Engine | Yuchai Diesel 188 | KOOP Diesel 195 |
| Drive Motors | 600 W × 2 | 800 W × 2 |
| Blade System | 32 Swinging Blades | 48 Swinging Blades* |
| Travel Speed | 0–3 km/h | 0–5 km/h |
| Generator | 1.5 kW | 2.5 kW |
| Machine Weight | 188 kg | 378 kg |
| Remote Deck Lift | — | Yes |
| Positioning | Compact Diesel | Heavy-Duty Diesel |
SDL Diesel 188-60A — A compact 600 mm diesel configuration where maneuverability and smaller machine size are priorities.
SDL Diesel 195-80B — A larger 800 mm diesel configuration with remote deck lift for heavier-duty vegetation management.
How to Choose the Right Remote Control Mower
Before selecting the SDL196-50A or a larger tracked model, consider:
Terrain — lawn, uneven ground, slope or rough terrain?
Vegetation — maintained grass, weeds or dense vegetation?
Working slope — what angle will the machine normally work on?
Access width — does the machine need to pass through gates or narrow areas?
Cutting width — is maneuverability or mowing coverage more important?
Operating time — how many hours will the mower normally work?
For more demanding slopes, rough terrain or heavier vegetation, a tracked or heavier-duty mower configuration may be more appropriate.
