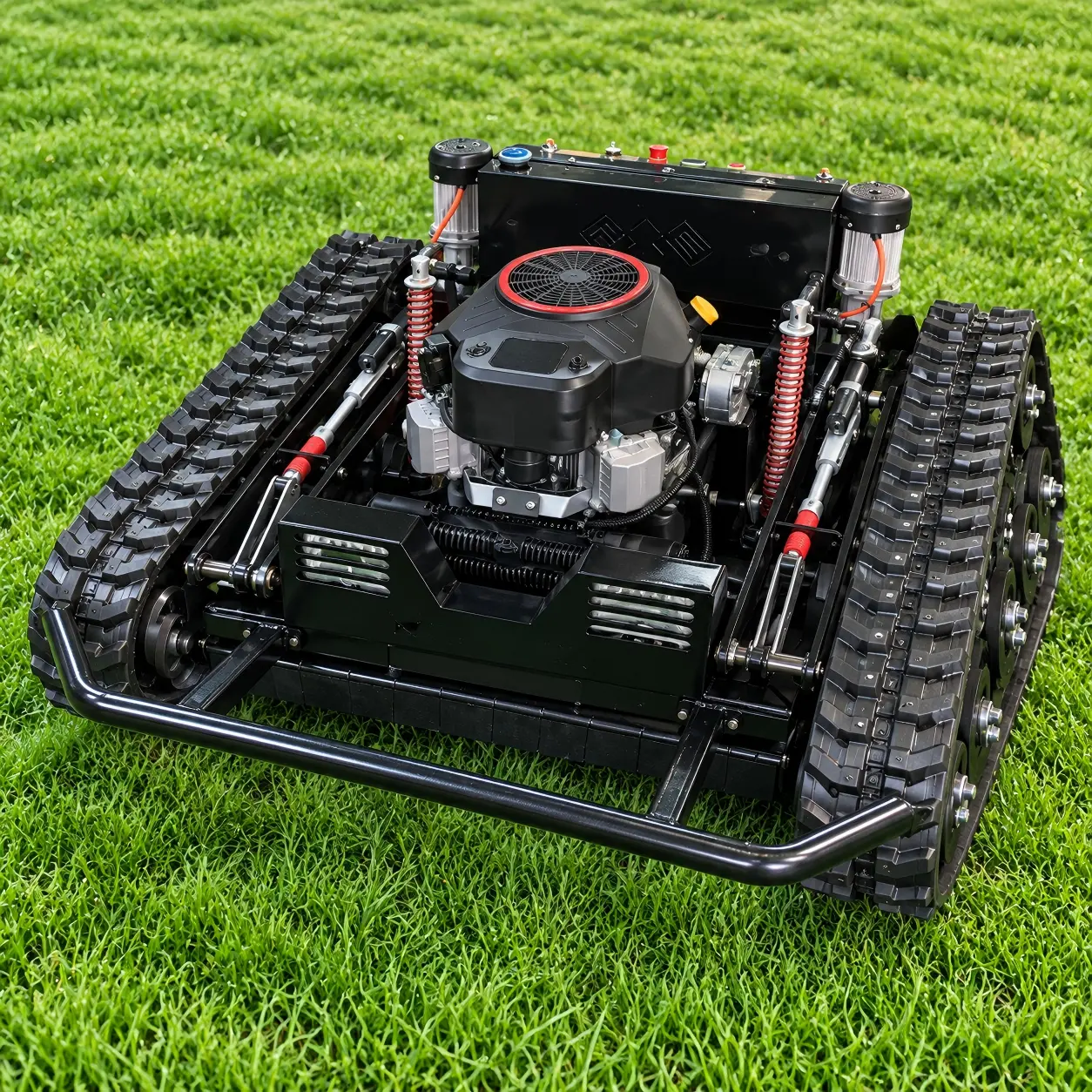

SDL764-90A Heavy-Duty Tracked Remote Control Mower
High-power tracked remote control mower for large areas, slopes and demanding vegetation management.
The SDL764-90A combines a 900 mm cutting width, 764 cc / 27 HP Loncin twin-cylinder gasoline engine and dual 1500 W electric track motors in a heavy-duty 406 kg platform. Designed for larger working areas and demanding vegetation management, it provides increased cutting coverage, high drive-motor output and remote-controlled operation.
900 mm Cutting Width · 764 cc / 27 HP Engine · 1500 W × 2 Drive · 406 kg
High-Power Mowing for Larger Working Areas
The SDL764-90A is designed for applications requiring greater engine capacity, wider mowing coverage and a heavier tracked platform.
Compared with the 800 mm SDL608-80B, it increases the cutting width to 900 mm, engine displacement to 764 cc, and specified track-drive motor output to 1500 W × 2.
Key Features
764 cc / 27 HP Twin-Cylinder Engine
High-displacement Loncin gasoline engine for demanding mowing applications.
900 mm Cutting Width
Wider cutting coverage for larger vegetation management areas.
1500 W × 2 Tracked Drive
Dual electric drive motors power the tracked self-propelled system.
0–280 mm Deck Adjustment
Wide deck adjustment range for varying vegetation and terrain conditions.
Wireless Remote Control
Allows the operator to control the mower from a distance.
Technical Specifications
| Specification | Details | Specification | Details |
| Model | SDL764-90A | Product Type | Heavy-Duty Tracked Remote Control Mower |
| Cutting Width | 900 mm | Deck Adjustment Range | 0–280 mm |
| Travel Speed | 0–5 km/h | Max. Working Slope | ≤60°* |
| Operation | Wireless Remote Control | Drive System | Electric Tracked Self-Propelled |
| Drive Motors | 1500 W × 2 | Drive Voltage | To Be Confirmed** |
| Max. Remote Range | 680 m* | Charging System | Engine Self-Charging |
| Generator Output | 5,000 W | Fuel Tank Capacity | 8 L |
| Engine Brand | Loncin | Engine Displacement | 764 cc |
| Engine Power | 27 HP | Cylinders | Twin-Cylinder |
| Engine Type | Gasoline, Vertical Shaft, 4-Stroke | Starting System | Electric Start |
| Machine Dimensions | 1560 × 1450 × 690 mm | Machine Weight | 406 kg |
| Package Dimensions | 1630 × 1520 × 890 mm | Gross Weight | 474 kg |
| Applications | Slopes, Embankments, Orchards, Landscaping | Vegetation | Tall Grass & Weeds |
Typical Applications
Large-Area Vegetation Management
900 mm cutting width provides increased mowing coverage for larger working areas.
Slopes & Embankments
Heavy tracked platform for remote vegetation maintenance across sloped and uneven terrain.
Tall Grass & Weeds
High-displacement engine configuration for demanding vegetation management.
Orchards & Landscaping
Suitable for larger orchards, agricultural areas and professional landscape maintenance.
Find the Right Mower for Your Application
Tell us your terrain, vegetation type, working slope, working area and required cutting width.
MecBase can help you compare tracked remote control mower configurations for your application.
SDL608-80B vs SDL764-90A
| Specification | SDL608-80B | SDL764-90A |
| Cutting Width | 800 mm | 900 mm |
| Engine | Loncin 608 cc | Loncin 764 cc |
| Engine Power | — | 27 HP |
| Engine Configuration | — | Twin-Cylinder |
| Drive Motors | 1200 W × 2 | 1500 W × 2 |
| Deck Adjustment | 0–280 mm | 0–280 mm |
| Travel Speed | 0–5 km/h | 0–5 km/h |
| Generator | 3 kW | 5 kW |
| Machine Weight | 337 kg | 406 kg |
| Positioning | Heavy-Duty | High-Power Heavy-Duty |
SDL608-80B — 800 mm heavy-duty configuration for demanding vegetation management.
SDL764-90A — Larger 900 mm configuration with a 764 cc twin-cylinder engine and higher specified track-drive motor output for larger working areas.
How to Choose the Right Remote Control Mower
Before selecting the SDL196-50A or a larger tracked model, consider:
Terrain — lawn, uneven ground, slope or rough terrain?
Vegetation — maintained grass, weeds or dense vegetation?
Working slope — what angle will the machine normally work on?
Access width — does the machine need to pass through gates or narrow areas?
Cutting width — is maneuverability or mowing coverage more important?
Operating time — how many hours will the mower normally work?
For more demanding slopes, rough terrain or heavier vegetation, a tracked or heavier-duty mower configuration may be more appropriate.
