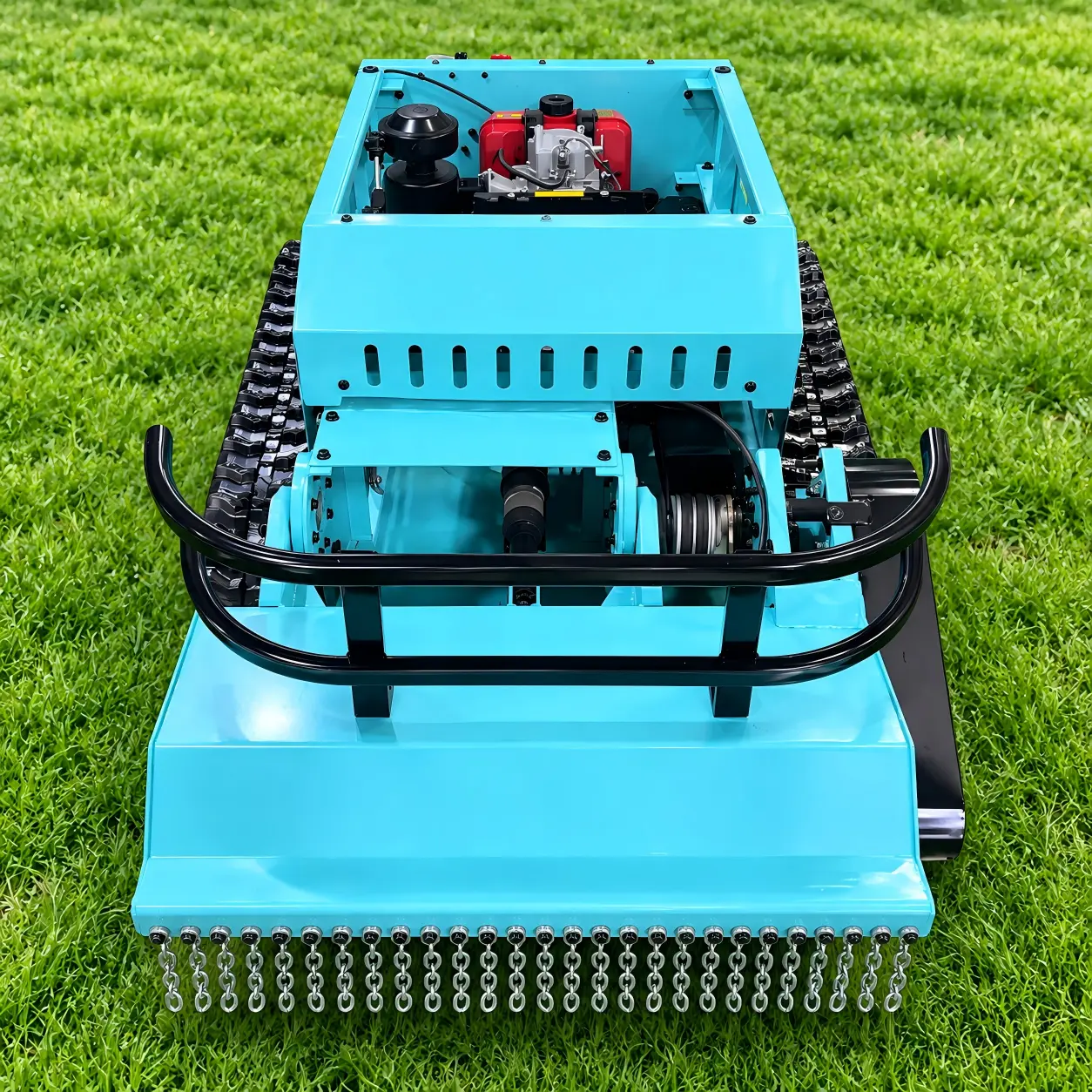

SDL Diesel 195-100 Tracked Remote Control Mower
Heavy-duty diesel tracked remote control mower with remote deck lift for slopes, orchards and demanding vegetation management.
The SDL Diesel 195-80B combines an 800 mm cutting width, KOOP Diesel 195 engine, dual 800 W electric track motors and a heavy-duty 378 kg tracked platform. With remote-controlled deck adjustment and a multi-blade cutting system, it is designed for tall grass, weeds, slopes, orchards and professional vegetation management.
800 mm Cutting Width · KOOP Diesel Engine · 800 W × 2 Drive · Remote Deck Lift
Wider Cutting Coverage for Larger Areas
The SDL Diesel 195-100 expands the Diesel 195 platform to a 1000 mm cutting width, providing 200 mm more cutting coverage than the SDL Diesel 195-80B.
Its tracked drive, remote deck lift and 60-blade cutting system make it suitable for tall grass, weeds, orchards, slopes and larger vegetation management areas.
Key Features
1000 mm Cutting Width
Wide cutting deck for greater coverage across larger working areas.
KOOP Diesel 195 Engine
Diesel-powered configuration for professional vegetation management.
800 W × 2 Tracked Drive
Dual electric motors provide tracked self-propelled movement.
Remote-Controlled Deck Lift
Allows deck adjustment from the remote controller, with a specified lift range of 0–450 mm.
60 Swinging Blades
Multi-blade cutting system with 20 straight and 40 curved blades.
Technical Specifications
| Specification | Details | Specification | Details |
| Model | SDL Diesel 195-100 | Product Type | Diesel Tracked Remote Control Mower |
| Cutting Width | 1000 mm | Deck Lift Range | 0–450 mm |
| Deck Adjustment | Remote-Controlled | Travel Speed | 0–5 km/h |
| Max. Working Slope | <50°* | Operation | Wireless Remote Control |
| Drive System | Electric Tracked Self-Propelled | Drive Motors | 800 W × 2 |
| Electrical System | To Be Confirmed** | Max. Remote Range | 680 m* |
| Charging System | Engine Self-Charging | Generator Output | 2,500 W |
| Engine Brand | KOOP | Engine Model | Diesel 195 |
| Fuel Type | No. 0 Diesel | Fuel Tank Capacity | 5.5 L |
| Starting System | Electric Start | Track Type | Engineering Rubber Track |
| Blade System | 60 Swinging Blades | Blade Configuration | 20 Straight + 40 Curved |
| Transmission | V-Belt | Machine Weight | 390 kg |
| Machine Dimensions | 1770 × 1220 × 750 mm | Gross Weight | 490 kg |
| Package Dimensions | 1870 × 1320 × 940 mm | Applications | Slopes, Orchards, Tall Grass, Landscaping |
Typical Applications
Large-Area Vegetation Management
1000 mm cutting width provides greater mowing coverage for larger working areas.
Tall Grass & Weeds
60-blade cutting system for grass, weeds and overgrown vegetation.
Slopes & Embankments
Tracked mobility and remote operation for vegetation maintenance on uneven terrain.
Orchards & Landscaping
Suitable for larger orchards, agricultural areas and professional landscape maintenance.
Find the Right Diesel Mower
Tell us your terrain, vegetation type, working slope, working area and required cutting width.
MecBase can help you compare gasoline and diesel remote control mower configurations for your application.
SDL Diesel 195-80B vs SDL Diesel 195-100
| Specification | SDL Diesel 195-80B | SDL Diesel 195-100 |
| Cutting Width | 800 mm | 1000 mm |
| Engine | KOOP Diesel 195 | KOOP Diesel 195 |
| Drive Motors | 800 W × 2 | 800 W × 2 |
| Blade System | 48 Swinging Blades* | 60 Swinging Blades |
| Deck Lift Range | 0–450 mm | 0–450 mm |
| Travel Speed | 0–5 km/h | 0–5 km/h |
| Generator | 2.5 kW | 2.5 kW |
| Machine Width | 1050 mm | 1220 mm |
| Machine Weight | 378 kg | 390 kg |
| Positioning | Heavy-Duty Diesel | Wide-Cut Diesel |
* The supplier states 48 blades for the 195-80B, although its detailed blade-count breakdown should still be confirmed.
SDL Diesel 195-80B — 800 mm configuration when a more compact machine width is preferred.
SDL Diesel 195-100 — 1000 mm wide-cut configuration for greater mowing coverage across larger areas.
How to Choose the Right Remote Control Mower
Before selecting the SDL196-50A or a larger tracked model, consider:
Terrain — lawn, uneven ground, slope or rough terrain?
Vegetation — maintained grass, weeds or dense vegetation?
Working slope — what angle will the machine normally work on?
Access width — does the machine need to pass through gates or narrow areas?
Cutting width — is maneuverability or mowing coverage more important?
Operating time — how many hours will the mower normally work?
For more demanding slopes, rough terrain or heavier vegetation, a tracked or heavier-duty mower configuration may be more appropriate.
