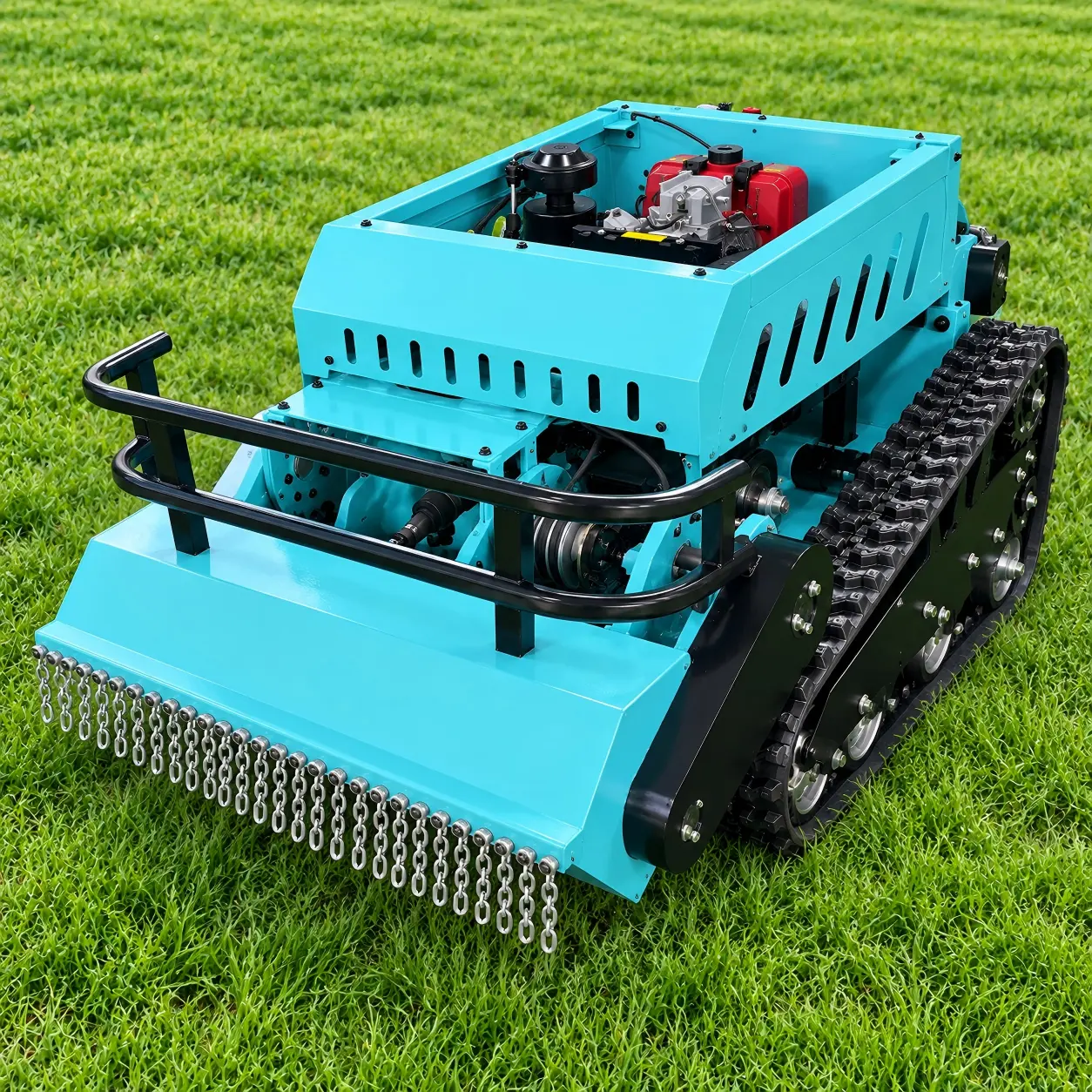

SDL Diesel 195-80B Tracked Remote Control Mower
Heavy-duty diesel tracked remote control mower with remote deck lift for slopes, orchards and demanding vegetation management.
The SDL Diesel 195-80B combines an 800 mm cutting width, KOOP Diesel 195 engine, dual 800 W electric track motors and a heavy-duty 378 kg tracked platform. With remote-controlled deck adjustment and a multi-blade cutting system, it is designed for tall grass, weeds, slopes, orchards and professional vegetation management.
800 mm Cutting Width · KOOP Diesel Engine · 800 W × 2 Drive · Remote Deck Lift
Heavy-Duty Diesel Mowing with Remote Deck Adjustment
The SDL Diesel 195-80B combines diesel power with electric tracked propulsion for demanding mowing applications.
Its 800 mm cutting width provides efficient coverage, while the remote-controlled deck lift allows the operator to adjust the cutting deck without approaching the machine. The tracked chassis and 378 kg machine weight provide a substantial platform for operation across uneven terrain.
Key Features
KOOP Diesel 195 Engine
Diesel-powered configuration for heavy-duty vegetation management.
800 mm Cutting Width
Provides wider mowing coverage for larger working areas.
800 W × 2 Tracked Drive
Dual electric drive motors power the tracked self-propelled system.
Remote-Controlled Deck Lift
Deck lift can be adjusted remotely with a specified adjustment range of 0–450 mm.
48 Swinging Blades
Multi-blade cutting system designed for grass, weeds and vegetation management.
Technical Specifications
| Specification | Details | Specification | Details |
| Model | SDL Diesel 195-80B | Product Type | Diesel Tracked Remote Control Mower |
| Cutting Width | 800 mm | Deck Lift Range | 0–450 mm |
| Deck Adjustment | Remote-Controlled | Travel Speed | 0–5 km/h |
| Max. Working Slope | <50°* | Operation | Wireless Remote Control |
| Drive System | Electric Tracked Self-Propelled | Drive Motors | 800 W × 2 |
| Electrical System | To Be Confirmed** | Max. Remote Range | 680 m* |
| Charging System | Engine Self-Charging | Generator Output | 2,500 W |
| Engine Brand | KOOP | Engine Model | Diesel 195 |
| Fuel Type | No. 0 Diesel | Fuel Tank Capacity | 5.5 L |
| Starting System | Electric / Recoil Start | Track Type | Engineering Rubber Track |
| Blade System | 48 Swinging Blades*** | Transmission | V-Belt |
| Machine Dimensions | 1770 × 1050 × 750 mm | Machine Weight | 378 kg |
| Package Dimensions | 1840 × 1130 × 940 mm | Gross Weight | 468 kg |
| Applications | Slopes, Embankments, Orchards, Landscaping | Vegetation | Tall Grass & Weeds |
Typical Applications
Tall Grass & Weeds
Multi-blade cutting system for heavier vegetation and overgrown areas.
Slopes & Embankments
Tracked mobility and remote operation for vegetation management on uneven and sloped terrain.
Orchards
Suitable for vegetation management across orchard and agricultural areas.
Large-Area Landscaping
800 mm cutting width and diesel configuration for professional landscape maintenance.
Find the Right Diesel Mower
Tell us your terrain, vegetation type, working slope, working area and required cutting width.
MecBase can help you compare gasoline and diesel remote control mower configurations for your application.
SDL608-80B vs SDL764-90A
| Specification | SDL452-80A | SDL Diesel 195-80B |
| Power Type | Gasoline | Diesel |
| Cutting Width | 800 mm | 800 mm |
| Engine | Loncin 452 cc | KOOP Diesel 195 |
| Drive Motor(s) | 1 kW¹ | 800 W × 2 |
| Deck Adjustment | 10–180 mm | Remote Deck Lift |
| Deck Lift Range | — | 0–450 mm |
| Blade System | Not Specified | 48 Swinging Blades |
| Fuel Tank | 8 L | 5.5 L |
| Machine Weight | 233 kg | 378 kg |
| Positioning | Wide-Cut Gasoline | Heavy-Duty Diesel |
¹ Supplier data for SDL452-80A states 1 kW without clarifying whether it is per motor or total drive output.
SDL452-80A — A lighter gasoline-powered 800 mm tracked configuration.
SDL Diesel 195-80B — A heavier diesel-powered configuration with remote deck lift and a specified 48-blade cutting system.
How to Choose the Right Remote Control Mower
Before selecting the SDL196-50A or a larger tracked model, consider:
Terrain — lawn, uneven ground, slope or rough terrain?
Vegetation — maintained grass, weeds or dense vegetation?
Working slope — what angle will the machine normally work on?
Access width — does the machine need to pass through gates or narrow areas?
Cutting width — is maneuverability or mowing coverage more important?
Operating time — how many hours will the mower normally work?
For more demanding slopes, rough terrain or heavier vegetation, a tracked or heavier-duty mower configuration may be more appropriate.
