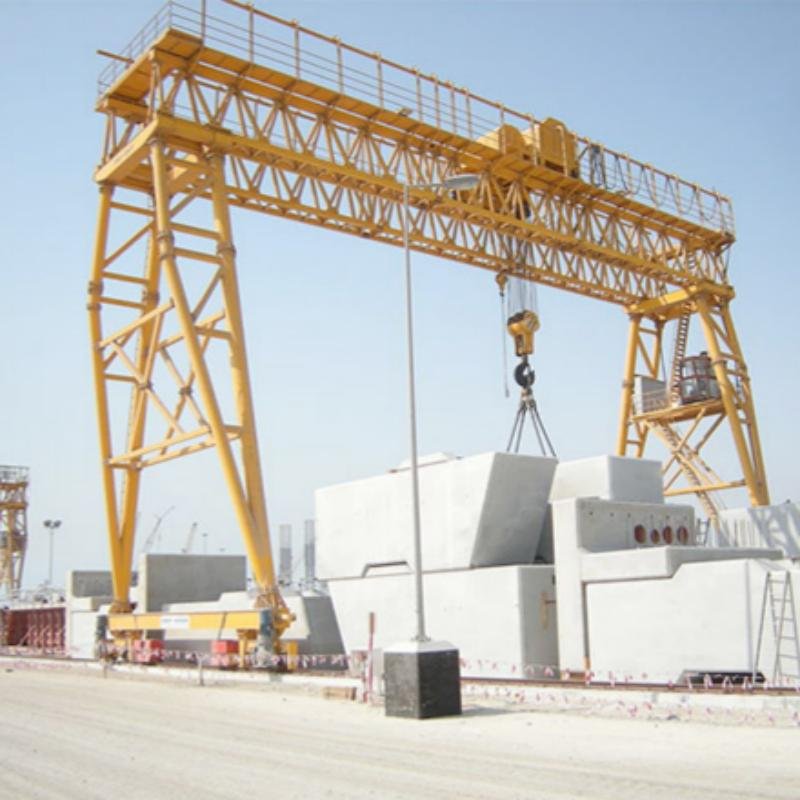

Truss Gantry Cranes
MecBase is a leading truss gantry crane manufacturer in China, specializing in high-quality truss gantry cranes, including single girder truss gantry crane, double girder truss gantry crane, and portable truss gantry crane systems. As an experienced gantry crane supplier and exporter, we deliver reliable, durable, and cost-effective gantry crane solutions to customers worldwide.
As a professional truss gantry crane factory, MecBase provides a full range of industrial truss gantry cranes designed for efficient material handling. Compared with traditional box-type gantry cranes, our truss gantry crane design offers a lighter structure, lower wind resistance, and reduced steel consumption, making it an ideal choice for outdoor lifting applications.
Our truss gantry cranes are widely used in shipyards, construction sites, bridge construction projects, container yards, and logistics centers. These gantry crane systems provide flexible lifting solutions, reduce infrastructure investment, and significantly improve operational efficiency and workplace safety.
China Wholesale Truss Gantry Crane Supplier & Global Exporter
As a trusted China gantry crane manufacturer, we offer a complete range of truss gantry cranes with various lifting capacities, spans, and configurations. Whether you need a portable gantry crane (0.5 ton / 1 ton), a standard industrial gantry crane (5 ton / 10 ton / 20 ton), or a heavy-duty truss gantry crane up to 300+ tons, our engineering team can provide fully customized gantry crane solutions based on your project requirements.
We support OEM & ODM services and provide complete technical support, drawings, and installation guidance for every gantry crane system.
Technical Specifications (Truss Gantry Crane Specifications)
The following technical specifications apply to our truss gantry cranes, engineered for high performance, durability, and flexibility in demanding working environments.
Our truss gantry crane systems are especially suitable for outdoor operations, large-span material handling, and windy environments. With optimized structural design, these industrial gantry cranes ensure stable lifting performance, easy operation, and long service life.
All gantry crane specifications can be customized, including lifting capacity, span length, lifting height, power supply, traveling system, and control methods.
| Parameter | Specification |
| Lifting Capacity | 3 t – 100 t |
| Span Length | 12 m – 30 m |
| Lifting Height | 6 m – 12 m |
| Working Duty | A3 |
| Rated Voltage | 220 V – 660 V, 50–60 Hz, 3 Phase AC |
| Working Temperature | -25°C to +40°C |
| Relative Humidity | ≤ 85% |
| Control Mode | Cabin Control |
Â
Why Choose a Truss Gantry Crane?
Choosing a truss gantry crane offers significant advantages for outdoor and large-span lifting applications. Compared with traditional box-type gantry cranes, a truss gantry crane features a lightweight steel structure, which reduces material costs and foundation requirements.
The open truss design also provides lower wind resistance, making it especially suitable for windy environments such as shipyards, bridge construction sites, and container yards. In addition, truss gantry cranes are easier to transport, install, and maintain, which helps reduce overall project costs.
With flexible configurations, high efficiency, and reliable performance, truss gantry cranes are an ideal solution for modern industrial material handling.

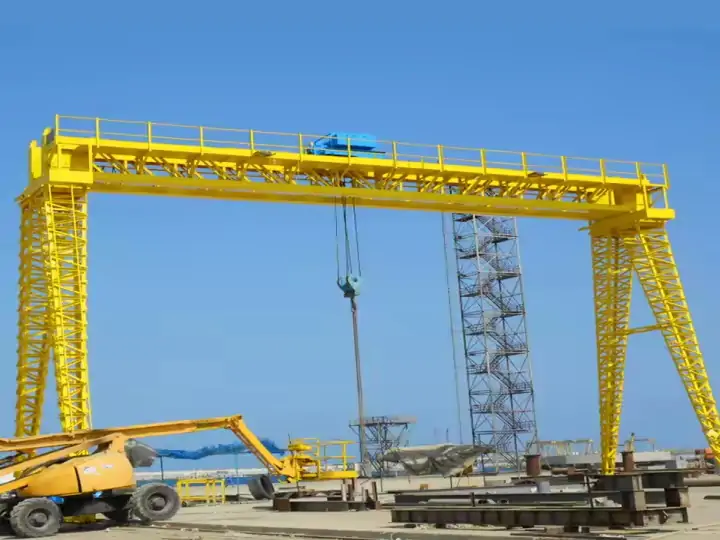

Applications of Truss Gantry Cranes
Truss gantry cranes are widely used across various industries due to their adaptability and cost efficiency.
Typical applications include:
- Shipyards and marine engineering
- Bridge and highway construction projects
- Outdoor construction sites
- Container yards and logistics terminals
- Steel fabrication and storage yards
- Precast concrete plants
These cranes are particularly suitable for outdoor operations where large span and wind resistance are critical factors.
Structure & Components of Truss Gantry Cranes
A truss gantry crane is composed of several key structural and functional components:
- Truss Main Girder – Lightweight truss structure with high strength and low wind resistance
- Supporting Legs – Rigid or flexible legs to support the crane structure
- Hoisting Mechanism – Electric hoist or winch system for lifting operations
- Crane Traveling System – Wheels and motors for longitudinal movement on rails
- Trolley System – Moves along the main girder for precise load positioning
- Electrical Control System – Includes control panels, wiring, and safety devices
- Operator Cabin (Optional) – For cabin-controlled gantry crane operations
Each component is engineered to ensure safety, stability, and long-term durability.
Get Your Quote Today
Looking for a reliable Truss Gantry Crane supplier?
👉 Contact MecBase now to get:
✔️ Free technical consultation
✔️ Fast quotation within 24 hours
✔️ Customized crane solution
✔️ Competitive factory price
FAQs About Truss Gantry Cranes
A truss gantry crane is a type of gantry crane with a truss-structured main beam, designed to reduce weight and improve wind resistance, making it ideal for outdoor use.
Truss gantry cranes are lighter, more cost-effective, and better for windy environments, while box girder gantry cranes offer higher rigidity and are suitable for heavy-duty indoor applications.
Yes, all truss gantry cranes can be fully customized, including lifting capacity, span, lifting height, power supply, and control system.
Common control modes include pendant control, remote control, and cabin control, depending on operational needs.
