Single Girder Gantry Cranes

The single girder gantry crane is one of the most widely used and cost-effective lifting solutions for light to medium-duty material handling applications.

This type of gantry crane features a single main girder supported by two legs, running on ground-mounted rails or wheels. The electric hoist travels along the girder, enabling smooth horizontal movement, while the crane itself moves longitudinally along the working area, providing efficient three-dimensional material handling.

Single girder gantry cranes are designed with a compact structure, offering excellent performance with lower weight and reduced cost compared to double girder systems.

As a professional single girder gantry crane manufacturer, supplier, and exporter in China, MecBase offers high-quality and fully customizable solutions for global customers.

Technical Specifications (Single Girder Gantry Crane Specifications)

The following technical specifications apply to our single girder gantry cranes, designed for efficient, reliable, and flexible material handling.

Our single girder gantry cranes are widely used in production lines, workshops, and outdoor applications, providing stable lifting performance, easy operation, and cost-effective solutions. All specifications can be customized to meet specific project requirements.

Parameter	Specification
Lifting Capacity	1 ton – 32 ton
Span Length	4 m – 35 m
Lifting Height	6 m, 9 m, 12 m, or customized
Duty Class	A3 / A4 / A5
Rated Voltage	220V – 690V, 50/60 Hz, 3 Phase AC
Working Temperature	-25°C to +40°C (Humidity ≤ 85%)
Control Mode	Pendant Control / Wireless Remote Control / Cabin Control
Reference Price Range	USD 6,000 – 30,000 per set

Why Choose a Single Girder Gantry Crane?

Wide Coverage Area: The single girder gantry crane travels along ground rails or wheels, providing extensive coverage across the working area and enabling efficient material handling over large spaces.
Cost-Effective Solution: With a simpler structure and lighter weight compared to double girder cranes, it offers a more economical option for light to medium-duty applications.
Flexible & Efficient Operation: The combination of crane traveling, trolley movement, and hoisting allows precise load positioning and smooth material handling.
Space-Saving Design: No need for building-mounted runway beams, making it ideal for outdoor yards or facilities with limited structural support.
Smooth & Reliable Performance: Ensures stable starting, braking, and operation, delivering safe and continuous performance in daily use.
Durable & Long Service Life: Manufactured with high-quality steel and reliable components, ensuring long-term durability and low maintenance.
Customizable Solutions: Key parameters such as lifting capacity, span, lifting height, and travel length can be fully customized to meet specific project requirements.

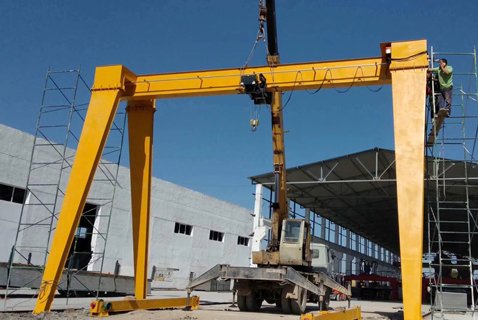

Applications

Single girder gantry cranes are widely used in:

Workshops & manufacturing plants
Warehouses & logistics centers
Construction sites
Steel & fabrication yards
Outdoor storage areas

👉 Especially suitable for light to medium-duty operations in open spaces.

Structure & Components

A single girder gantry crane mainly consists of:

Main Girder: Load-bearing beam supporting the hoist
Gantry Legs: Provide stability and transfer load to ground
Electric Hoist: Lifting mechanism (wire rope or chain)
Traveling System: Enables crane movement along rails
Electrical & Control System: Ensures safe and precise operation

👉 These components enable efficient three-dimensional material handling.

More Single Girder Gantry Crane Types

hoist single girder gantry crane
10 ton single girder gantry crane
15 ton single girder gantry crane
single girder semi gantry crane
single box girder gantry crane
single girder truss gantry crane
single girder travelling gantry crane

Get Your Quote Today

Looking for a reliable single girder gantry crane supplier?

👉 Contact MecBase now to get:

✔️ Free technical consultation
✔️ Fast quotation within 24 hours
✔️ Customized crane solution
✔️ Competitive factory price

FAQs About Single Girder Gantry Crane

What is a gantry crane used for?

Gantry cranes are used for lifting and moving heavy materials in industries such as manufacturing, warehousing, construction, shipyards, and ports. They are especially useful where overhead crane systems are not available.

Do gantry cranes require rails?

Not always. Some gantry cranes run on rails for stability and precision, while others use wheels or rubber tires for greater flexibility.

How do I choose the right gantry crane?

You should consider lifting capacity, span, lifting height, working environment (indoor/outdoor), duty class, and mobility requirements (rail or wheel-mounted).

What is the difference between single girder and double girder gantry cranes?

Single girder gantry cranes are lighter and more cost-effective, while double girder gantry cranes offer higher capacity, greater stability, and larger span.

What safety features do gantry cranes have?

Common safety features include overload protection, limit switches, emergency stop systems, and for outdoor cranes, wind brakes or rail clamps.
