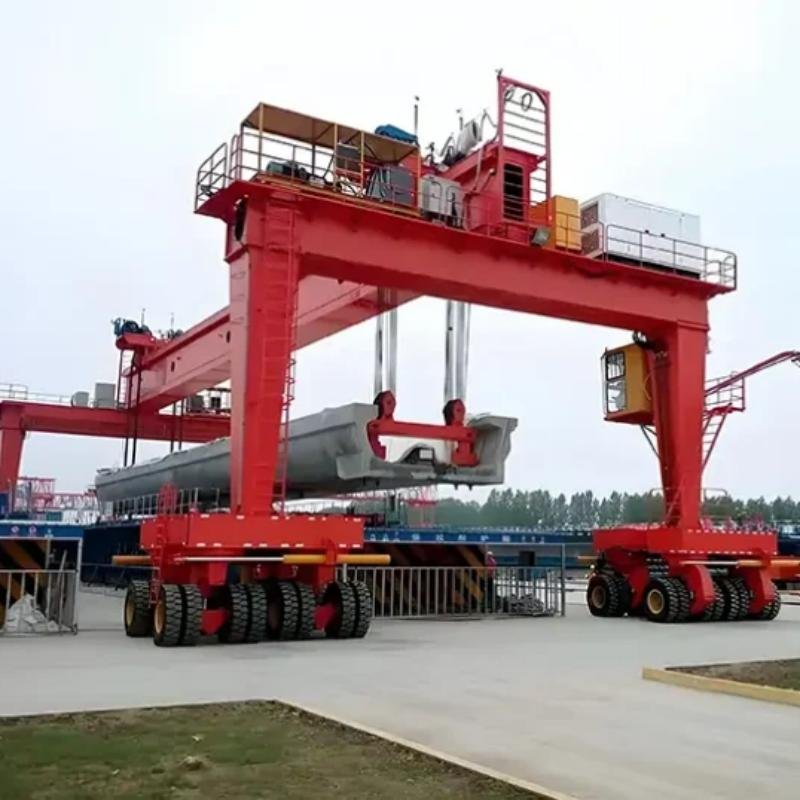

Casting Yard Gantry Cranes
MecBase is a professional manufacturer, supplier, and exporter of Casting Yard Gantry Cranes in China, specializing in heavy-duty lifting equipment for precast concrete yards, bridge construction, and large infrastructure projects worldwide.
With advanced engineering capabilities and extensive export experience, we deliver high-performance, durable, and precision-engineered gantry crane solutions designed for handling precast beams, girders, and large concrete segments.
Our casting yard gantry cranes are engineered for high efficiency, synchronized lifting, and long service life, making them ideal for demanding construction environments and continuous operation.
China Wholesale Casting Yard Gantry Crane Supplier & Global Exporter
We offer a complete range of casting yard gantry cranes, specifically designed for heavy lifting, large-span operations, and repetitive beam handling processes.
Whether you require single-beam handling systems or multi-point synchronized lifting solutions, our engineering team provides fully customized crane systems tailored to your project requirements.
Typical Capacity Range:
- 50 ton, 100 ton, 200 ton
- Heavy-duty configurations up to 500+ tons
Technical Specifications (Casting Yard Gantry Crane Specifications)
The following technical specifications apply to our Casting Yard Gantry Cranes, engineered for high load capacity, structural stability, and safe operation in demanding construction environments.
Our casting yard gantry crane systems are specifically designed for handling long-span precast concrete beams and heavy structural components, ensuring stable lifting, precise positioning, and synchronized operation.
With an optimized structural design, these cranes provide high strength, minimal deflection, and excellent resistance to dynamic loads, ensuring reliable performance during continuous operation.
Key Design Features
- Heavy-Duty Double Girder or Truss Structure
Designed for large-span beam handling and high load capacity - Synchronized Lifting System
Ensures safe and balanced lifting of long precast beams - Multi-Point Lifting Capability
Suitable for handling long girders and segments - High Stability & Precision
Designed for accurate positioning during casting and storage - Durable for Outdoor Use
Equipped with anti-corrosion coating and wind-resistant design - Continuous Operation Capability
Ideal for repetitive production cycles in precast yards
| Parameter | Specification |
| Lifting Capacity | 20 – 900 ton |
| Span Length | 24 – 55 m |
| Lifting Height | 9 – 60 m |
| Work Duty | A3 |
| Rated Voltage | 220V – 690V, 50–60Hz, 3 Phase AC |
| Working Temperature | -25℃ to +40℃ |
| Relative Humidity | ≤ 85% |
| Control Mode | Cabin Control |
| Reference Price Range | $10,000 – $600,000 / set |
Why Choose a Casting Yard Gantry Crane?
Choosing a Casting Yard Gantry Crane provides significant advantages for precast concrete production, bridge construction, and large infrastructure projects.
Unlike standard gantry cranes, casting yard gantry cranes are specifically engineered for handling long, heavy precast beams and segments, ensuring safe, stable, and synchronized lifting operations.
The heavy-duty double girder or truss structure delivers exceptional rigidity and load distribution, enabling stable lifting even for ultra-heavy and long-span concrete elements. Advanced engineering design minimizes deflection and ensures precise positioning during casting, storage, and transportation processes.
These cranes are also equipped with synchronized lifting systems, anti-sway technology, and advanced control systems, providing smooth operation, improved accuracy, and enhanced safety in complex construction environments.
With high efficiency, reliable performance, and long service life, casting yard gantry cranes are an essential solution for modern bridge and infrastructure projects.

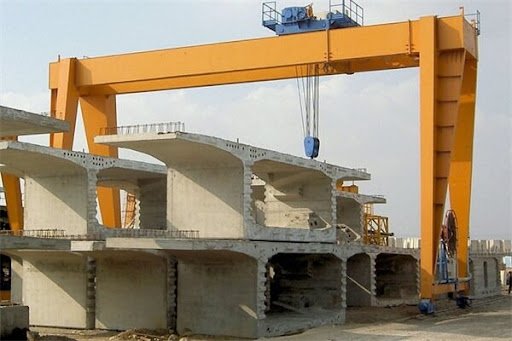

Applications of Casting Yard Gantry Cranes
Casting yard gantry cranes are widely used in industries requiring heavy lifting and precise beam handling.
Typical applications include:
- Precast concrete beam yards
- Bridge construction and highway projects
- High-speed railway infrastructure
- Viaduct and metro construction sites
- Large-scale infrastructure projects
These cranes are particularly suitable for handling long-span precast girders where stability, synchronization, and precision are critical.
Structure & Components of Casting Yard Gantry Crane
| Component | Description |
| Main Girder (Double Girder or Truss Structure) | High-strength structure designed for heavy loads and large spans |
| Supporting Legs | Rigid or flexible legs ensuring structural stability |
| Hoisting Mechanism | Winch trolley or multi-point lifting system for beam handling |
| Synchronized Lifting System | Ensures balanced lifting of long precast beams |
| Crane Traveling System | Rail-mounted or wheel-mounted system for yard movement |
| Trolley System | Enables precise positioning along the girder |
| Electrical Control System | Includes control panels, safety systems, and intelligent control |
| Operator Cabin | Standard configuration for high-precision lifting operations |
Note:
Each component is engineered to ensure maximum safety, structural stability, and reliable performance in demanding construction environments.
Get Your Quote Today
Looking for a reliable Casting Yard Gantry Crane supplier?
👉 Contact MecBase now to get:
- ✔️ Free technical consultation
- ✔️ Fast quotation within 24 hours
- ✔️ Customized crane solutions
- ✔️ Competitive factory pricing
FAQs About FEM Double Girder Gantry Cranes
A Casting Yard Gantry Crane is a heavy-duty gantry crane designed for precast concrete production yards, mainly used to lift, transport, and position precast beams, girders, and concrete segments in infrastructure projects.
They are specifically designed for:
- Handling long and heavy precast beams
- Multi-point or synchronized lifting
- Higher safety and precision requirements
This makes them more suitable for bridge construction and beam handling.
Common types include:
- Double girder gantry cranes
- Truss gantry cranes (for large spans and outdoor use)
- Rail-mounted gantry cranes
The selection depends on project requirements and yard layout.
You should consider:
- Maximum beam weight and dimensions
- Required span and lifting height
- Frequency of operation
- Precision and synchronization requirements
👉 Working with an experienced manufacturer ensures optimal performance and safety.
