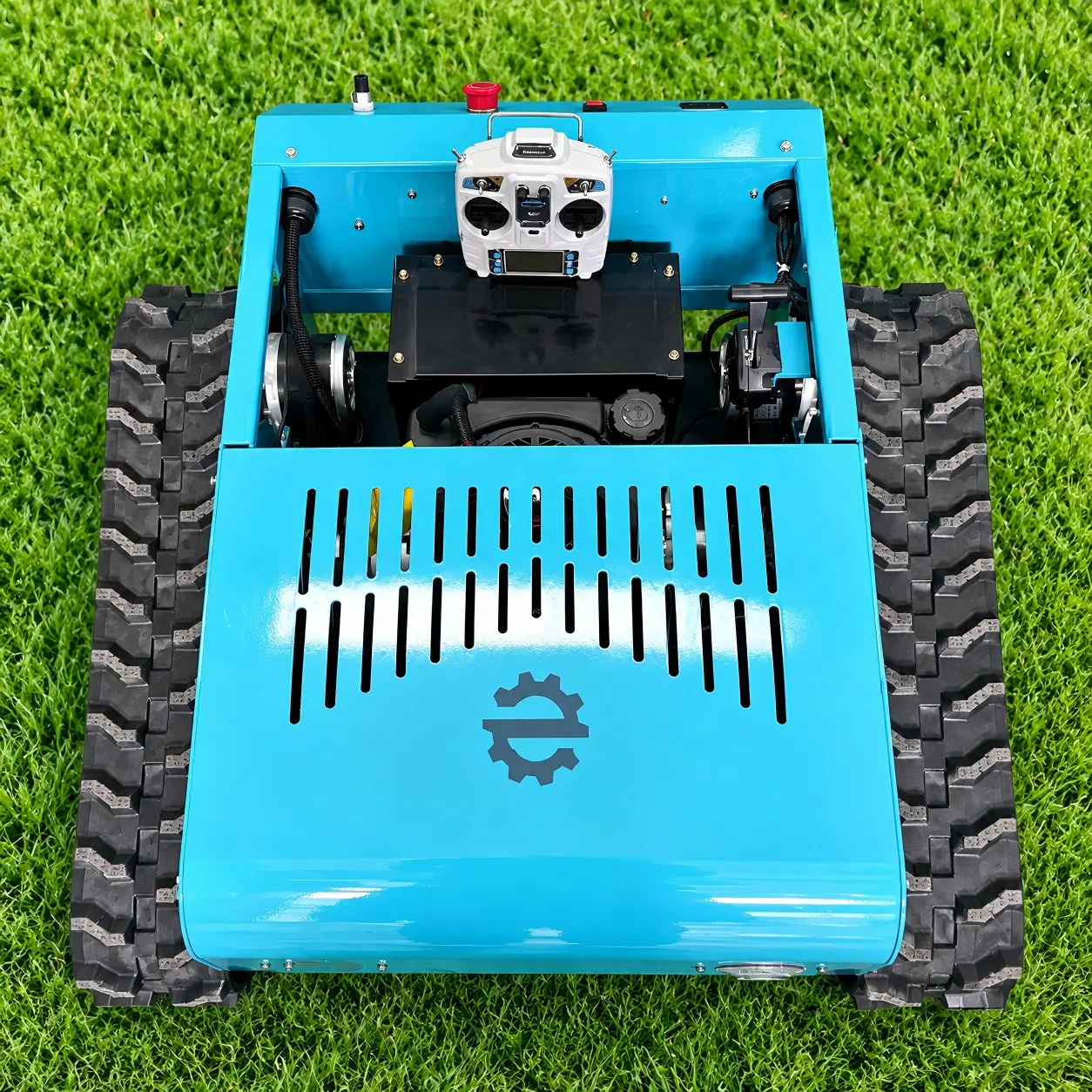

SDL224-55A tracked remote control mower with 550 mm cutting width

SDL224-55A Tracked Remote Control Mower

Compact tracked remote control mower for slopes, orchards, tall grass and landscaping applications.

The SDL224-55A combines a 550 mm cutting width, 224 cc Loncin gasoline engine and dual 500 W electric track motors in a compact 131 kg platform. Wireless remote operation and tracked mobility make it suitable for vegetation management on slopes, orchards and uneven terrain.

550 mm Cutting Width · 224 cc Engine · 500 W × 2 Drive · 131 kg

Inquiry Now

Built for Compact & Uneven Working Areas

The SDL224-55A uses an electric tracked self-propelled system for improved mobility across uneven ground. Its compact dimensions and 550 mm cutting width make it particularly suitable for orchards, slopes, landscaped areas and locations where larger machines have limited access.

Key Features

Tracked Drive
Dual 500 W electric drive motors provide independent tracked propulsion.

Compact 550 mm Cutting Width
Suitable for orchards, narrow access areas and general vegetation maintenance.

224 cc Loncin Engine
Gasoline-powered cutting system combined with a 2 kW onboard generator and engine self-charging system.

Wireless Remote Control
Allows the operator to control the mower from a distance.

20–180 mm Cutting Height
Suitable for different grass and vegetation conditions.

Technical Specifications

SpecificationDetailsSpecificationDetails
ModelSDL224-55AProduct TypeTracked Remote Control Mower
Cutting Width550 mmCutting Height20–180 mm
Deck Adjustment Range10–180 mmTravel Speed0–3 km/h
Max. Working Slope45°*OperationWireless Remote Control
Drive SystemElectric Tracked Self-PropelledDrive Motors500 W × 2
Drive Voltage24 VMax. Remote Range680 m*
Charging SystemEngine Self-ChargingGenerator Output2,000 W
Engine BrandLoncinEngine Displacement224 cc
Engine TypeGasoline, Vertical Shaft, 4-StrokeStarting SystemRecoil / Electric Start
Fuel Tank Capacity1.9 LMachine Weight131 kg
Machine Dimensions920 × 960 × 530 mmGross Weight168 kg
Package Dimensions1000 × 1080 × 720 mmApplicationsSlopes, Orchards, Landscaping, Lawns

* Manufacturer-rated value. Actual slope capability and remote-control range may vary depending on terrain, surface conditions, obstacles and operating conditions.

Typical Applications

Slopes & Embankments
Remote mowing for sloped and uneven terrain.

Orchards
Compact dimensions for working around trees and restricted areas.

Tall Grass & Weeds
Adjustable cutting height for different vegetation conditions.

Tall Grass & Weeds
Adjustable cutting height for different vegetation conditions.

Find the Right Mower for Your Application

Tell us your terrain, vegetation type, working slope, working area and required cutting width.

We can help you compare available remote control mower configurations.

Get An Quote Now

SDL224-55A vs SDL224-55B

SpecificationSDL224-55ASDL224-55B
Cutting Width550 mm550 mm
Engine224 cc Loncin224 cc Loncin
Drive Motors500 W × 2800 W × 2
Machine Weight131 kg175 kg
Cutting Height20–180 mm10–180 mm
Travel Speed0–3 km/h0–3 km/h
PositioningCompact & LightweightHigher-Power Drive

Choose SDL224-55A for a lighter, more compact tracked mower.

Choose SDL224-55B when higher drive-motor output is preferred.

Explore All Remote Control Mowers

How to Choose the Right Remote Control Mower

Before selecting the SDL196-50A or a larger tracked model, consider:

Terrain — lawn, uneven ground, slope or rough terrain?

Vegetation — maintained grass, weeds or dense vegetation?

Working slope — what angle will the machine normally work on?

Access width — does the machine need to pass through gates or narrow areas?

Cutting width — is maneuverability or mowing coverage more important?

Operating time — how many hours will the mower normally work?

For more demanding slopes, rough terrain or heavier vegetation, a tracked or heavier-duty mower configuration may be more appropriate.
