Precast concrete component production—including wall panels, concrete pipes, rail sleepers, utility poles, and more—is characterized by heavy loads, high-frequency operations, and large spatial spans. MecBase provides customized lifting equipment solutions for precast production lines and storage yards, covering the entire workflow from mold handling and component transfer to finished product stacking.
Core Application Scenarios

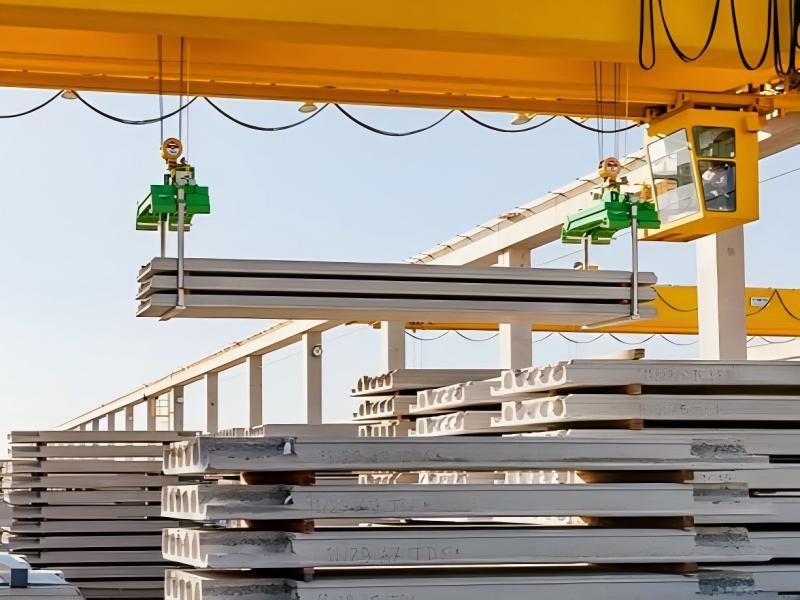

Precast Component Lifting and Stacking
During the transfer of precast components from casting beds to storage yards, lifting equipment must accomplish:
- Dual-Crane Synchronized Lifting: Two cranes working in tandem to lift large precast beams, ensuring balanced load distribution
- Single-Crane Double-Point Operation: One crane equipped with dual lifting devices to handle two components simultaneously, improving operational efficiency
The equipment travels longitudinally along yard rails, while the trolley moves laterally and the hook raises/lowers to enable precise three-dimensional transfer and stacking of components.

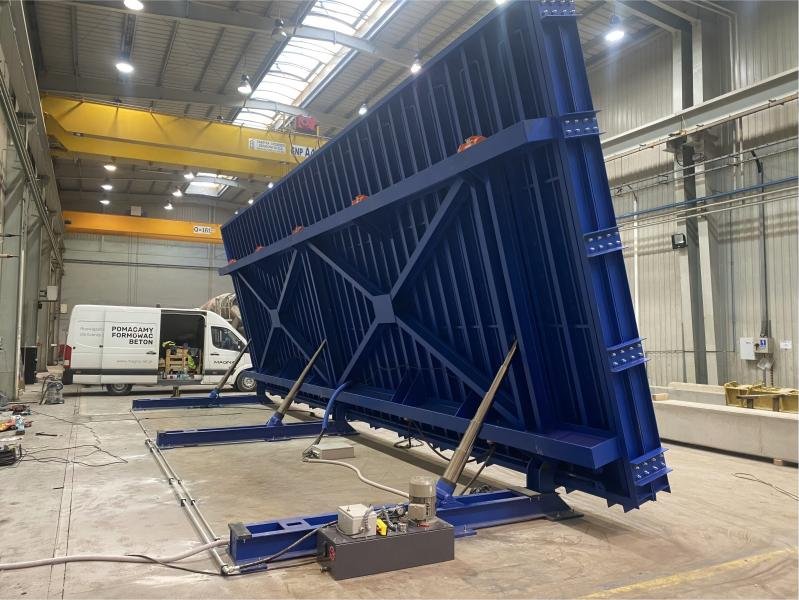

Mold Handling and Maintenance
Steel molds in precast plants typically weigh 2–5 tons and require frequent transfer between production lines and curing areas. Lifting equipment must meet the following requirements:
- Dense lifting cycles, supporting two-shift or three-shift continuous operations
- Precise positioning capability to prevent mold deformation from collisions
- Optional configurations for mold flipping, cleaning, and maintenance operations
Solution Selection Options
Based on site conditions and operational requirements, MecBase offers three primary structural solution directions:

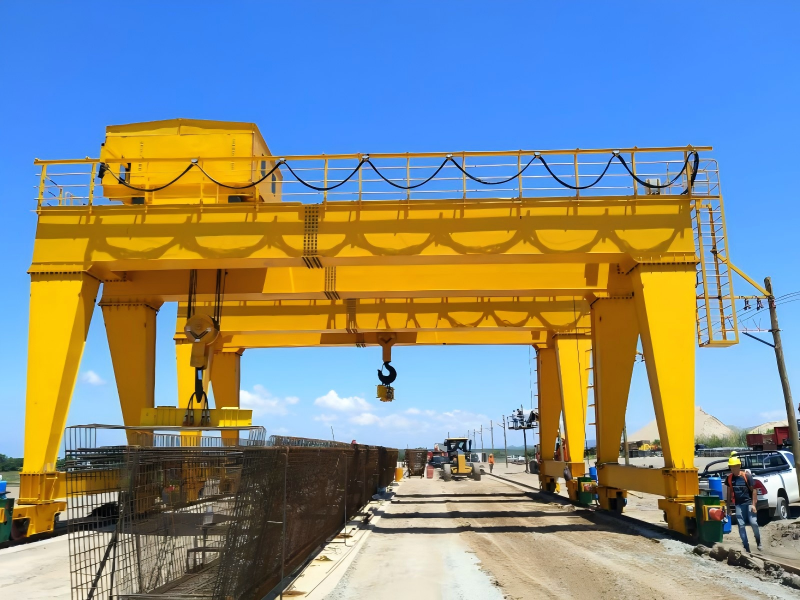

Box Girder Double Girder Gantry Solution
Suitable for heavy-duty indoor and outdoor applications, with duty classes ranging from A3 to A8.
Structural Features:
- Double main beam box structure with high rigidity and strong load-bearing capacity
- Crane travels longitudinally on ground rails; trolley moves transversely
- Independent hoisting mechanism configured for smooth operation
- Outdoor applications equipped with wind protection devices (rail clamps, anchor devices, anemometers)
Applicable Scenarios:
- Large precast component storage yards
- Continuous operation environments requiring high duty classes
- Indoor/outdoor universal applications

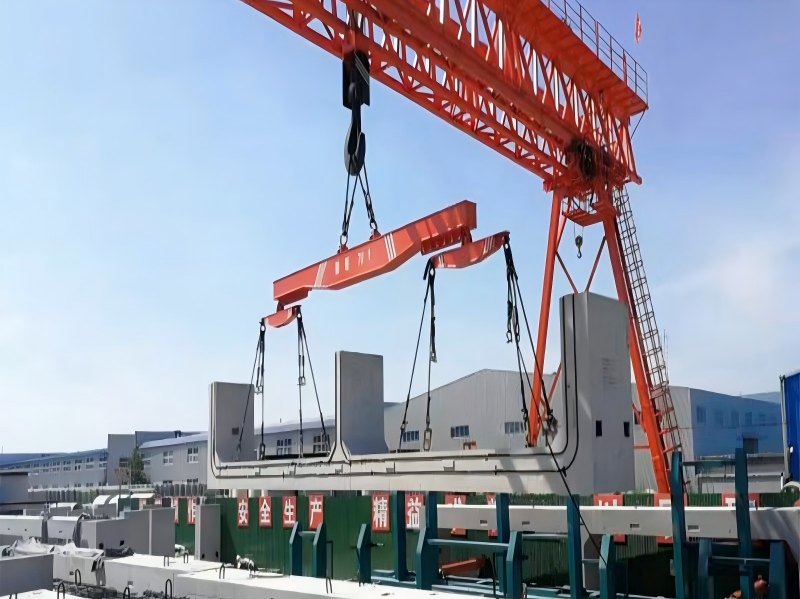

Truss Engineering Gantry Solution
Suitable for projects with high outdoor wind loads and cost sensitivity, with duty classes A3–A5.
Structural Features:
- A-frame gantry with rigid leg + flexible leg support structure, providing overall flexibility
- Truss structure has smaller wind-facing area, offering superior wind resistance compared to box structures
- Multiple lifting configurations available: hook, specialized spreader, or pin-type movable pulley block
- Trolley equipped with rain cover for outdoor environments
Applicable Scenarios:
- Bridge beam yards and rail sleeper precast plants
- Coastal areas or regions with high wind pressure
- Budget-conscious projects with moderate operational intensity

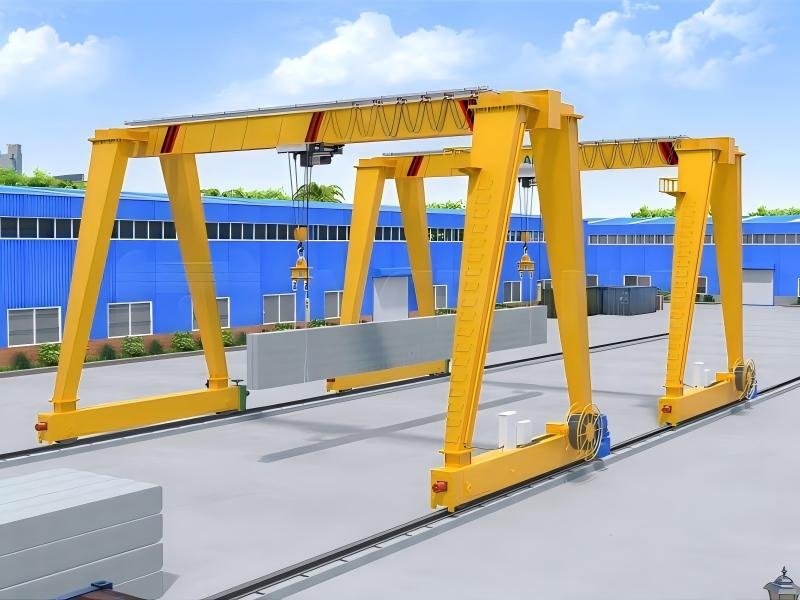

Single Girder Gantry Solution
Suitable for light-duty auxiliary operations, with duty classes A3–A5.
Structural Features:
- Simplified structure using electric hoist as the lifting mechanism
- Forms three-dimensional working space: hook vertical movement, trolley lateral movement, crane longitudinal movement
- Light self-weight with low wheel load, reducing foundation requirements
Applicable Scenarios:
- Small mold handling
- Equipment maintenance and repairs
- Auxiliary material handling tasks
Service Support System
Pre-Sales: Customized Localization Support
- Dedicated Project Team: Cross-departmental collaboration (Production, Supply Chain, QA) ensures your requirements are addressed from day one
- On-Site Engineering Services: Engineers conduct precise site measurements and provide tailored solutions based on actual working conditions
- Quality Commitment: Implementation of multi-level inspection and quality veto mechanisms
Production: Transparent Delivery
- Progress Synchronization: Weekly reports + direct project manager communication
- Third-Party Inspection: Support for quality audits specified by the customer
- Pre-Delivery Testing: 100% load testing and safety inspections with complete inspection reports provided
After-Sales: Reliable Response
- In-House Installation Team: Internal installation and after-sales team ensures seamless project handover
- Rapid Response: Emergency service requests addressed within 8 hours; technical solutions provided within 24 hours
- Maintenance Guarantee: Core components warranted for one year; priority access to genuine spare parts and engineer support
Application Value Summary
| Dimension | MecBase Solution Value |
| Efficiency | Supports single-crane dual-point or dual-crane coordinated operations, improving lifting cycle time by 30–50% |
| Adaptability | Three structural directions (box girder/truss/single girder) matching full scenarios from light-duty maintenance to heavy-duty stacking |
| Environment | Outdoor windproof and rainproof design adapted to open-air storage yard operations |
| Space | Large span coverage (up to 30m+), supporting multi-layer three-dimensional stacking of components |
| Service | Full-cycle localized support from measurement and design to production, installation, and maintenance |
MecBase provides one-stop lifting solutions for the precast concrete industry—from selection consulting and non-standard customization to long-term maintenance. For professional advice and competitive quotations tailored to your plant layout, please contact the MecBase technical team.
