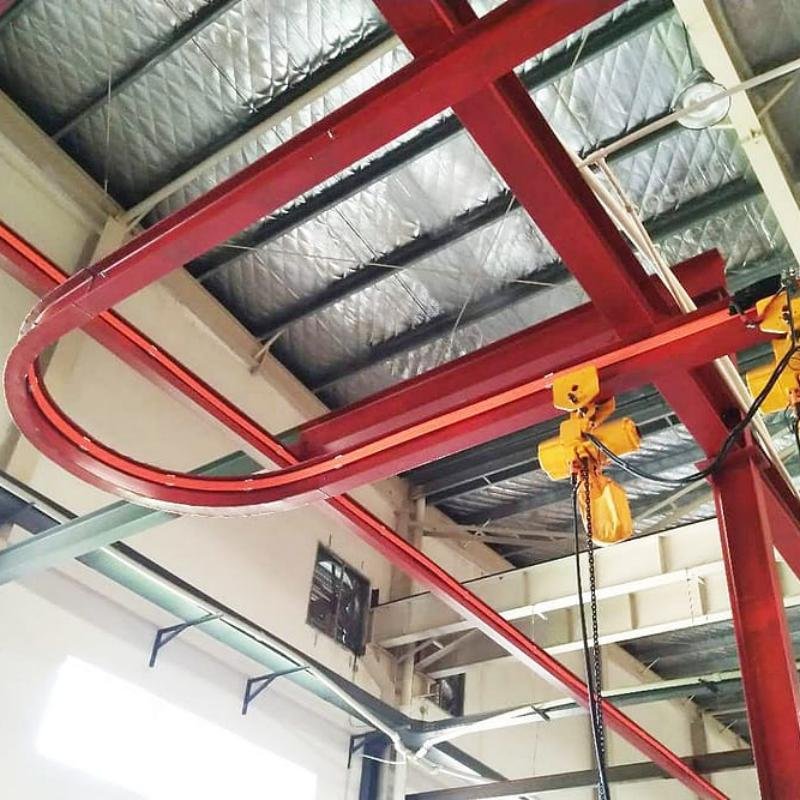

Monorail Overhead Cranes
Monorail overhead cranes are widely used in industrial environments for efficient, streamlined, and cost-effective material handling along fixed production paths.
Designed to improve productivity and reduce manual labor, these crane systems provide smooth operation, precise positioning, and reliable performance for repetitive lifting and transfer tasks.
Unlike workstation bridge cranes, monorail systems operate on a single fixed track, allowing materials to be transported along a predefined route, making them ideal for linear or process-oriented workflows.
As a professional China overhead crane manufacturer and supplier, MecBase specializes in modular system design, structural calculation, and customized engineering solutions, delivering reliable and cost-effective monorail lifting systems for modern production lines.
Technical Specifications – Monorail Overhead Cranes
The following technical specifications apply to our Monorail Overhead Cranes, engineered for efficient, streamlined, and cost-effective material handling along fixed production paths.
Our systems are widely used in assembly lines, production cells, workshops, and warehouses, enabling precise, repetitive material transport along a predefined route.
With modular design and flexible configurations, all specifications can be fully customized to match specific workflow requirements and plant layout conditions.
Key Features of Monorail Overhead Cranes
Single Track Linear System
Operates along a fixed path, ideal for point-to-point or process-oriented material handling
Efficient Material Flow
Optimized for continuous or repetitive transport tasks along production lines
Space-Saving Overhead Design
Mounted on ceiling or supporting structure, keeping floor space clear
Smooth & Reliable Operation
Ensures stable movement with minimal vibration and accurate positioning
Flexible Track Layout
Supports straight, curved, loop, or multi-branch track configurations
Modular Design
Easy to extend, modify, or integrate into existing production systems
Low Maintenance & High Durability
Simple structure reduces maintenance requirements and improves system reliability
| Parameter | Specification |
| Lifting Capacity | 50 kg – 5 ton |
| Track Length | Customized (based on layout) |
| Lifting Height | Depends on installation height |
| Work Duty | FEM 2m – 4m (A3 / A5) |
| Rated Voltage | 220V – 690V, 50–60Hz, 3 Phase AC |
| Working Temperature | -10℃ to +40℃ |
| Relative Humidity | ≤ 85% |
| Control Mode | Pendant Control / Remote Control |
| Track Type | I-beam or KBK modular rail |
| Hoist Type | Electric Chain Hoist / Electric Wire Rope Hoist |
| Travel Speed | Customized (single or variable speed optional) |
| Reference Price Range | $1,500 – $12,000 / set |
Why Choose a Monorail Overhead Crane?
Choosing a monorail overhead crane provides an efficient and cost-effective solution for fixed-path material handling tasks.
Optimized Linear Material Flow
Designed for point-to-point or process-based transport, ensuring smooth and continuous workflow.
Space-Saving Overhead Design
Mounted on ceiling or support structures, keeping floor space clear for equipment and personnel.
Simple & Cost-Effective System
Compared to bridge cranes, monorail systems have a simpler structure and lower installation cost.
Flexible Track Configuration
Supports straight lines, curves, loops, and multi-branch layouts to match complex production processes.
Safe & Reliable Operation
Equipped with essential safety features such as:
- Overload protection
- Limit switches
- Emergency stop systems
Smooth & Controlled Performance
Ensures:
- Accurate positioning along the track
- Stable lifting and movement
- Reduced operator fatigue

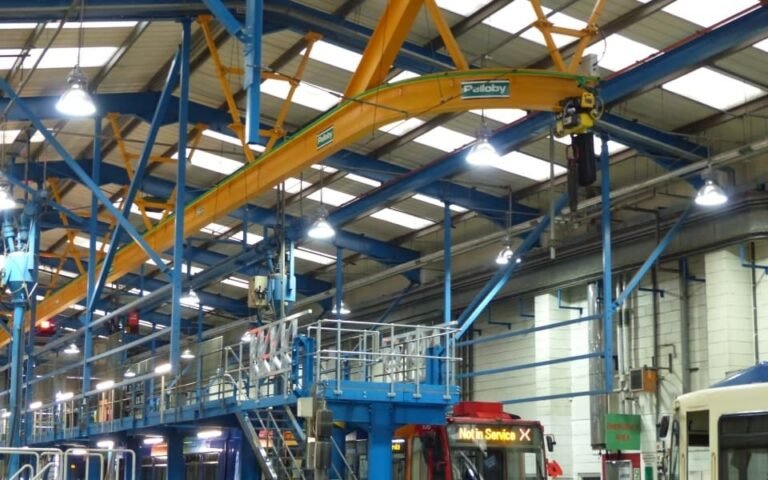

Applications of Monorail Overhead Cranes
Monorail overhead cranes are widely used in:
- Assembly and production lines
- Automotive and parts manufacturing
- Warehousing and logistics operations
- Machinery and equipment assembly
- Painting, coating, and finishing lines
👉 Ideal for repetitive, fixed-route material handling and continuous production processes
Main Components of Monorail Overhead Crane
| Component | Function |
| Track (I-beam / KBK Rail) | Provides fixed path for hoist movement |
| Suspension System | Supports the track from ceiling or structure |
| Trolley | Moves along the track |
| Electric Hoist | Lifting mechanism |
| Track Switch (Optional) | Enables direction change or multi-branch routing |
| Control System | Controls lifting and travel |
| Safety Devices | Overload protection, limit switches, etc. |
Monorail vs Bridge Crane
Choosing between a monorail overhead crane and a workstation bridge crane depends on your workflow, coverage needs, and facility layout.
| Feature | Monorail Overhead Crane | Workstation Bridge Crane |
| Movement Type | Linear (fixed path) | Area coverage (2D movement) |
| Coverage | Point-to-point | Full rectangular area |
| Flexibility | Limited (predefined route) | High (covers entire workspace) |
| System Complexity | Simple | More complex |
| Cost | Lower | Higher |
| Installation | Easier | Moderate |
| Best for | Process flow transport | Multi-point lifting tasks |
Get a Quote for Monorail Overhead Crane
Looking for a reliable Monorail Overhead Crane supplier?
👉 MecBase provides:
✔️ Professional consultation
✔️ Customized crane system solutions
✔️ Competitive pricing
✔️ Fast global delivery
👉 Contact us today for a free quotation and technical support
FAQs About Monorail Overhead Crane
A monorail overhead crane is a material handling system where a hoist travels along a single fixed track, designed for linear or process-based transportation between defined points.
No, monorail cranes are designed for fixed-path movement. If full area coverage is required, a workstation bridge crane is more suitable.
The system can be mounted on ceiling structures or steel frameworks, and the supporting structure must be able to handle both static and dynamic loads.
