Freestanding Workstation Bridge Crane
Freestanding Workstation Bridge Cranes are widely used in industrial environments for efficient, flexible, and ergonomic material handling across multiple workstations.
Designed to improve productivity and reduce manual labor, these crane systems provide smooth operation, precise positioning, and reliable performance for repetitive lifting tasks.
Unlike jib cranes, freestanding workstation bridge cranes feature a bridge beam running on independent runway structures supported by columns, allowing full area coverage without relying on the building structure.
As a professional China workstation crane manufacturer and supplier, MecBase specializes in modular system design, structural calculation, and customized engineering solutions, delivering reliable and cost-effective lifting systems for modern production lines.
Technical Specifications – Freestanding Workstation Bridge Crane
The following technical specifications apply to our Freestanding Workstation Bridge Cranes, engineered for high efficiency, flexible layout, and ergonomic operation.
Our systems are widely used in assembly lines, production cells, workshops, and warehouses, enabling precise, repetitive material handling across a defined working area.
With modular design and flexible configurations, all specifications can be fully customized to match specific workflow and layout requirements.
Key Features of Freestanding Workstation Bridge Crane
- Independent Freestanding Structure
Supported by columns, no need for building support - Full Area Coverage (Bridge System)
Enables movement across rectangular work areas - Ergonomic & Efficient Operation
Reduces manual handling and improves productivity - Smooth & Precise Movement
Compatible with electric hoists and optional VFD control - Flexible Modular Design
Easy to expand, relocate, or reconfigure - Easy Installation & Low Maintenance
Minimal structural modification required
| Parameter | Specification |
| Lifting Capacity | 50 kg – 2 ton |
| Span (Bridge Length) | 2 – 9 m |
| Runway Length | Customized (based on layout) |
| Lifting Height | 2 – 6 m (customized available) |
| Work Duty | FEM 2m – 3m (A3 / A4) |
| Rated Voltage | 220V – 690V, 50–60Hz, 3 Phase AC |
| Working Temperature | -10℃ to +40℃ |
| Relative Humidity | ≤ 85% |
| Control Mode | Pendant Control / Remote Control |
| Track Type | Steel or Aluminum Modular Rail |
| Hoist Type | Electric Chain Hoist |
| Reference Price Range | $2,000 – $15,000 / set |
Types of Freestanding Workstation Bridge Cranes We Can Supply

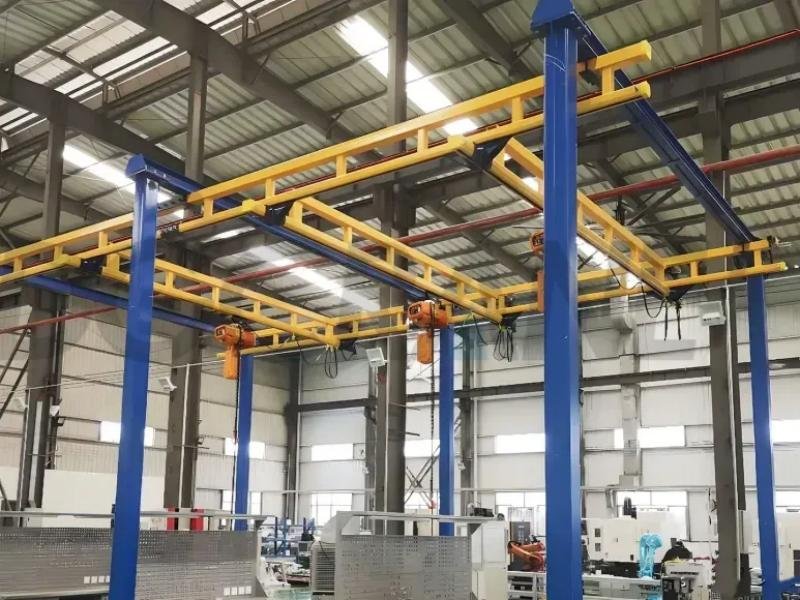

Single Girder Freestanding Workstation Bridge Crane
A cost-effective and lightweight lifting solution designed for efficient material handling in small to medium-duty workstation applications.

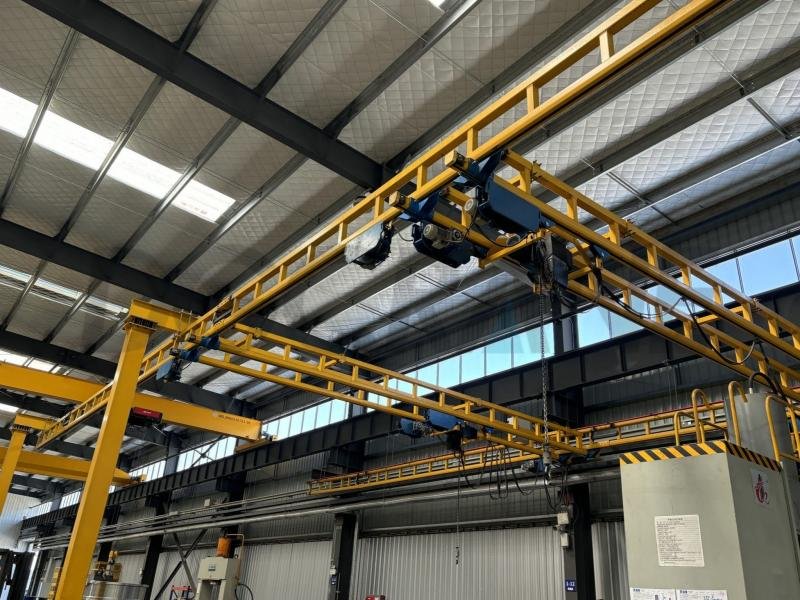

Double Girder Freestanding Workstation Bridge Crane
A heavy-duty crane system offering higher load capacity and increased stability, ideal for demanding industrial lifting operations.

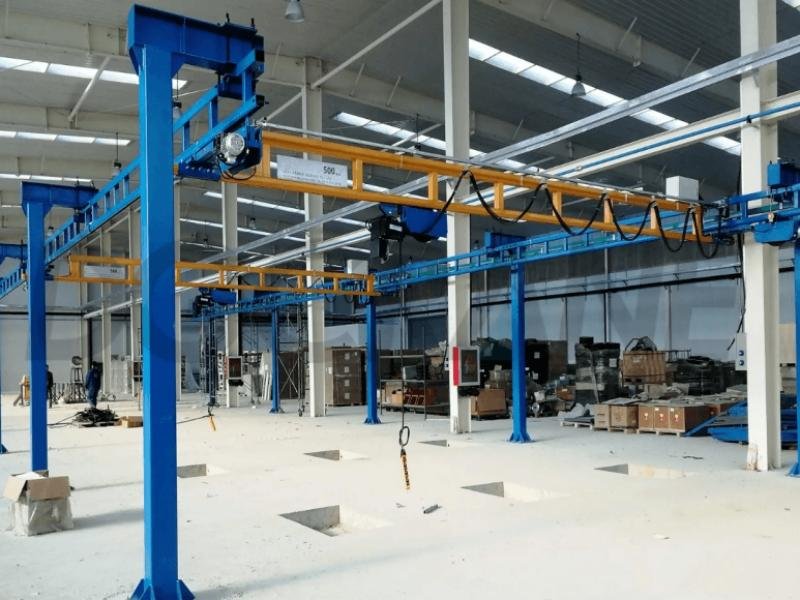

Headerless Freestanding Workstation Bridge Crane
A flexible crane design without header beams, allowing easier installation and better adaptability to restricted height or space conditions.

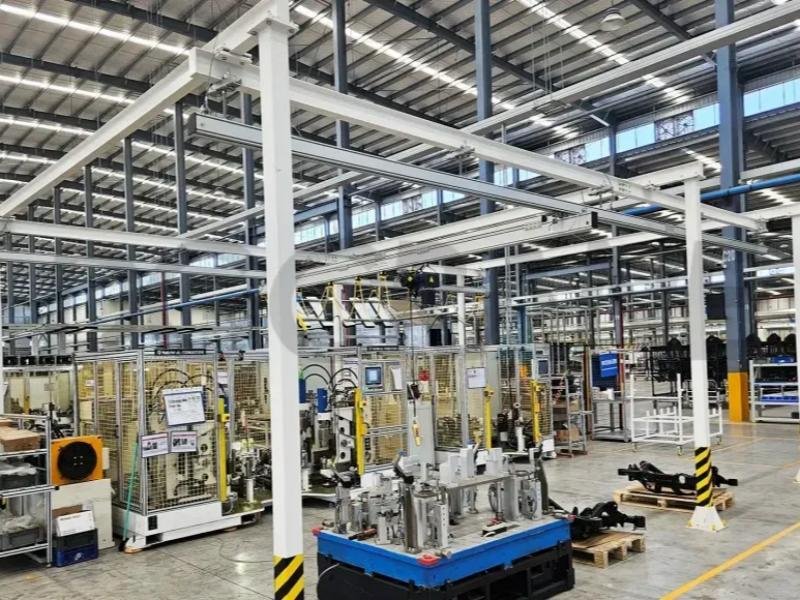

Aluminum Alloy Freestanding Workstation Bridge Crane
A lightweight, corrosion-resistant crane system made from aluminum, providing smooth operation and ergonomic handling for precision tasks.
Why Choose a Freestanding Workstation Bridge Crane?
Choosing a freestanding workstation bridge crane provides an efficient and flexible solution for multi-station lifting tasks.
Independent & Flexible Design
Does not rely on roof structure, ideal for facilities with limited or weak building support.
Full Coverage & High Efficiency
Bridge system allows complete coverage of working areas, improving workflow efficiency.
Easy Installation & Scalability
Modular design enables quick installation and future expansion.
Safe & Reliable Operation
Equipped with essential safety features such as:
- Overload protection
- Limit switches
- Emergency stop systems
Smooth & Controlled Performance
Ensures:
- Accurate positioning
- Stable lifting and movement
- Reduced operator fatigue
Applications of Freestanding Workstation Bridge Cranes
Freestanding workstation bridge cranes are widely used in:
- Assembly and production lines
- Automotive and parts manufacturing
- Warehousing and logistics operations
- Machinery and equipment assembly
- Light fabrication and processing workshops
👉 Ideal for high-frequency, light-duty lifting across multiple workstations

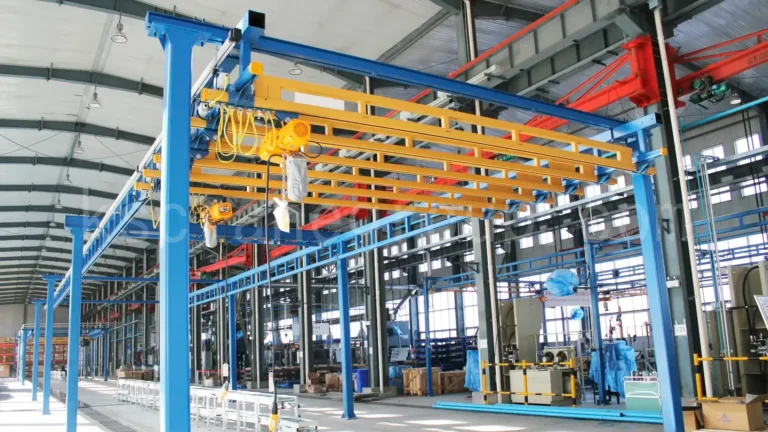

Freestanding Workstation Bridge Crane
| Component | Function |
| Columns | Support the entire crane system independently |
| Runway Beam | Provides travel path for the bridge |
| Bridge Beam | Moves across the runway for area coverage |
| Trolley | Moves hoist along the bridge |
| Electric Hoist | Lifting mechanism |
| Control System | Controls lifting and movement |
| Safety Devices | Overload protection, limit switches, etc. |
Get a Quote for Freestanding Workstation Bridge Crane
Looking for a reliable Freestanding Workstation Bridge Crane supplier?
👉 MecBase provides:
- ✔️ Professional consultation
- ✔️ Customized crane system solutions
- ✔️ Competitive pricing
- ✔️ Fast global delivery
👉 Contact us today for a free quotation and technical support
FAQs About Freestanding Workstation Bridge Crane
A freestanding workstation bridge crane is a light-duty overhead crane system supported by independent columns, designed for efficient material handling across multiple workstations without relying on the building structure.
- Freestanding crane: Supported by its own columns, independent of building structure
- Ceiling-mounted crane: Suspended from the roof, requires building support
👉 Freestanding systems are ideal when the building cannot support loads.
Yes. Customization includes:
- Capacity and span
- Layout and runway length
- Track type (steel or aluminum)
- Control system and power supply
You should consider:
- Load capacity
- Span and coverage area
- Layout of workstations
- Frequency of use
- Installation conditions
👉 Consulting a professional supplier ensures the most efficient and cost-effective solution.
