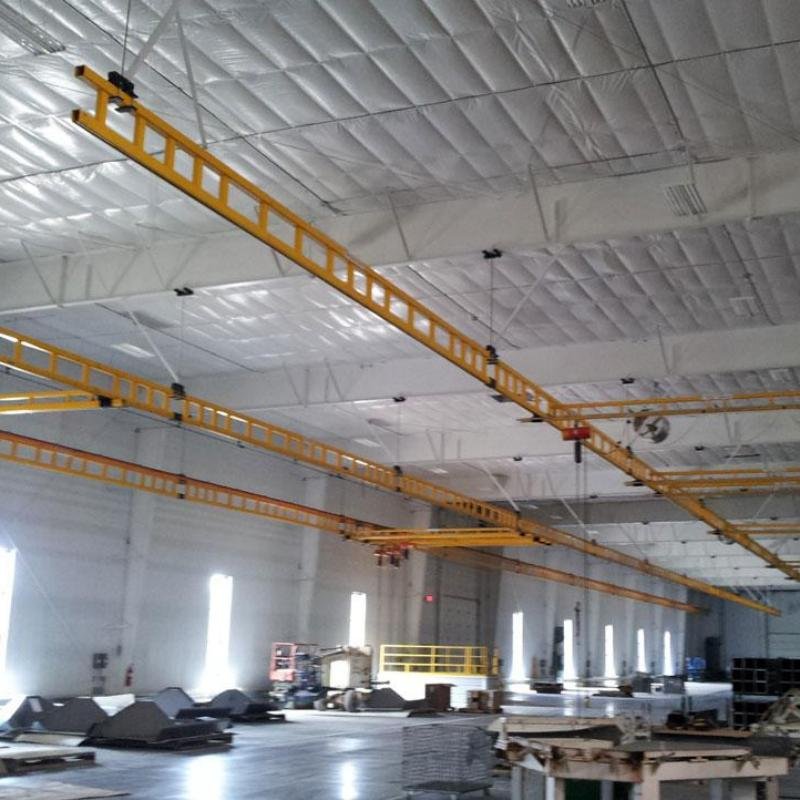

Ceiling Mounted Workstation Bridge Crane

Ceiling Mounted Workstation Bridge Cranes are widely used in industrial environments for efficient, flexible, and ergonomic material handling across multiple workstations.

Designed to improve productivity and reduce manual labor, these crane systems provide smooth operation, precise positioning, and reliable performance for repetitive lifting tasks.

Unlike freestanding systems, ceiling mounted workstation bridge cranes are suspended from the building structure, eliminating the need for floor-mounted columns and maximizing usable workspace below.

As a professional China workstation crane manufacturer and supplier, MecBase specializes in modular system design, structural calculation, and customized engineering solutions, delivering reliable and cost-effective lifting systems for modern production lines.

Technical Specifications – Ceiling Mounted Workstation Bridge Crane

The following technical specifications apply to our Ceiling Mounted Workstation Bridge Cranes, engineered for high efficiency, space-saving layout, and ergonomic operation.

Our systems are widely used in assembly lines, production cells, workshops, and warehouses, enabling precise, repetitive material handling across a defined working area without occupying valuable floor space.

With modular design and flexible configurations, all specifications can be fully customized to match specific workflow requirements and building structure conditions.

Key Features of Ceiling Mounted Workstation Bridge Crane

Ceiling Suspended Structure
Mounted directly on the building structure, eliminating the need for floor-mounted columns

Full Area Coverage (Bridge System)
Enables smooth movement across rectangular work areas

Space-Saving Design
Maximizes usable floor space for equipment and personnel

Ergonomic & Efficient Operation
Reduces manual handling and improves productivity

Smooth & Precise Movement
Compatible with electric hoists and optional VFD control

Flexible Modular Design
Easy to expand or reconfigure based on production needs

Easy Installation & Low Maintenance
Minimal floor interference and simplified system maintenance

Parameter	Specification
Lifting Capacity	50 kg – 2 ton
Span (Bridge Length)	2 – 9 m
Runway Length	Customized (based on building structure)
Lifting Height	Depends on ceiling height
Work Duty	FEM 2m – 3m (A3 / A4)
Rated Voltage	220V – 690V, 50–60Hz, 3 Phase AC
Working Temperature	-10℃ to +40℃
Relative Humidity	≤ 85%
Control Mode	Pendant Control / Remote Control
Track Type	Steel or Aluminum Modular Rail
Hoist Type	Electric Chain Hoist
Reference Price Range	$2,000 – $15,000 / set

Types of Ceiling Mounted Workstation Bridge Cranes We Can Supply

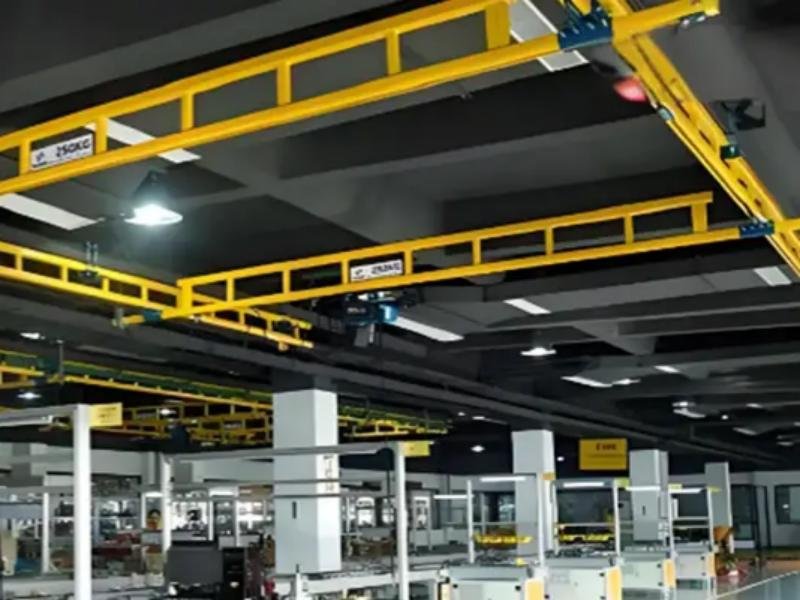

Single Girder Ceiling Mounted Workstation Bridge Crane

A space-saving overhead crane with a single bridge beam, ideal for light to medium-duty material handling in ceiling-supported systems.

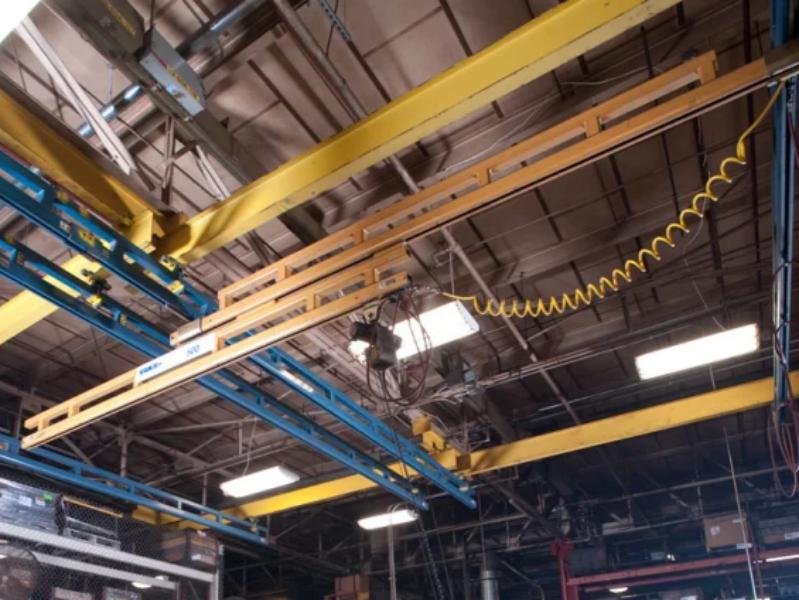

Double Girder Ceiling Mounted Workstation Bridge Crane

A high-capacity overhead system with dual bridge beams, providing enhanced stability and lifting performance for heavier loads.

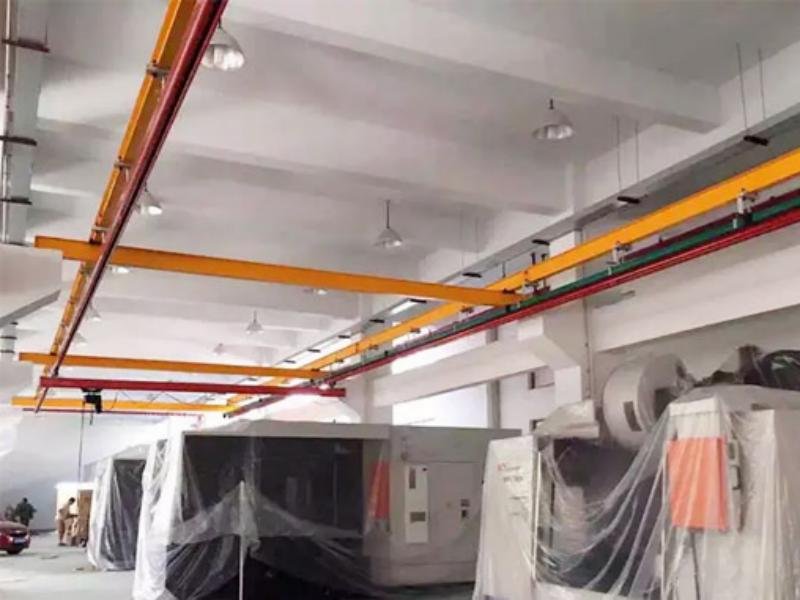

Telescopic Beam Ceiling Mounted Workstation Bridge Crane

A flexible crane featuring an extendable bridge beam, designed to reach beyond standard coverage areas for improved accessibility.

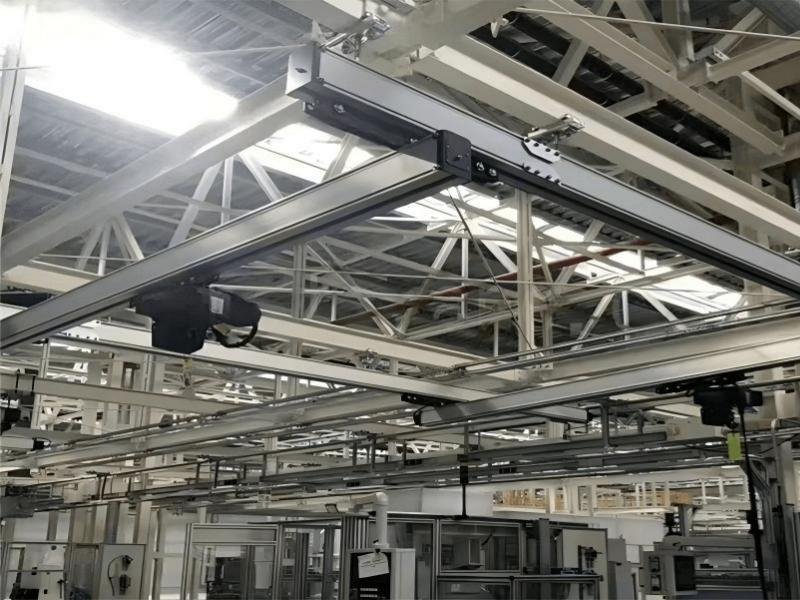

Aluminum Ceiling Mounted Workstation Bridge Crane

A lightweight, corrosion-resistant crane system made from aluminum, ensuring smooth operation and easy handling for precision applications.

Why Choose a Ceiling Mounted Workstation Bridge Crane?

Choosing a ceiling mounted workstation bridge crane provides a space-saving and efficient solution for multi-station lifting tasks.

Space-Saving Overhead Design
Mounted on the building structure, eliminating floor columns and maximizing usable workspace.

Full Coverage & High Efficiency
Bridge system allows complete coverage of working areas, improving workflow efficiency.

Optimized Layout Flexibility
Ideal for facilities with sufficient roof load capacity, keeping the floor clear for equipment and personnel.

Safe & Reliable Operation
Equipped with essential safety features such as:

Overload protection
Limit switches
Emergency stop systems

Smooth & Controlled Performance
Ensures:

Accurate positioning
Stable lifting and movement
Reduced operator fatigue

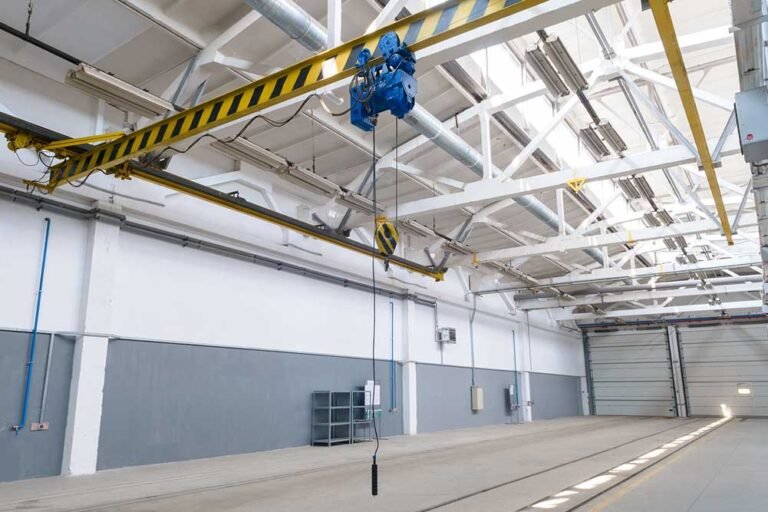

Applications of Ceiling Mounted Workstation Bridge Cranes

Ceiling mounted workstation bridge cranes are widely used in:

Assembly and production lines
Automotive and parts manufacturing
Warehousing and logistics operations
Machinery and equipment assembly
Light fabrication and processing workshops

👉 Ideal for high-frequency, light-duty lifting while maintaining clear floor space

Main Components of Ceiling Mounted Workstation Bridge Crane

Component	Function
Ceiling Support Structure	Supports the crane system via building roof or steel structure
Runway Beam	Provides travel path for the bridge
Bridge Beam	Moves across the runway for area coverage
Trolley	Moves hoist along the bridge
Electric Hoist	Lifting mechanism
Control System	Controls lifting and movement
Safety Devices	Overload protection, limit switches, etc.

Freestanding vs Ceiling Mounted Workstation Bridge Crane

Choosing between a freestanding and ceiling mounted workstation bridge crane depends on your facility structure, layout, and operational needs.

Key Differences Overview

Feature	Freestanding Workstation Bridge Crane	Ceiling Mounted Workstation Bridge Crane
Support Structure	Independent columns	Building ceiling / roof structure
Floor Space	Occupies floor space (columns)	No floor obstruction
Installation Requirement	No need for building support	Requires sufficient roof load capacity
Flexibility	Highly flexible, can be relocated	Fixed to building structure
Installation Complexity	Easier, minimal structural dependency	Requires structural assessment
Coverage Area	Full area coverage	Full area coverage
Best for	Weak or unavailable roof structure	Space-constrained facilities

Quick Selection Guide

Not sure about roof capacity? → Choose Freestanding
Need more floor space? → Choose Ceiling Mounted
Want flexibility and future relocation? → Freestanding
Want cleaner layout and better ergonomics? → Ceiling Mounted

Get a Quote for Ceiling Mounted Workstation Bridge Crane

Looking for a reliable Ceiling Mounted Workstation Bridge Crane supplier?

👉 MecBase provides:

✔️ Professional consultation
✔️ Customized crane system solutions
✔️ Competitive pricing
✔️ Fast global delivery

👉 Contact us today for a free quotation and technical support

FAQs About Ceiling Mounted Workstation Bridge Crane

What is a ceiling mounted workstation bridge crane?

A ceiling mounted workstation bridge crane is an overhead lifting system suspended from the building structure, designed for efficient material handling across multiple workstations without occupying floor space.

What are the advantages of a ceiling mounted system compared to freestanding cranes?

Ceiling mounted cranes save floor space, provide unobstructed work areas, and are ideal for facilities with sufficient roof load capacity, while freestanding systems are better when building support is limited.

What building requirements are needed for installation?

The building structure must have sufficient load-bearing capacity to support the crane system, including dynamic loads during operation. Structural assessment is usually required.
