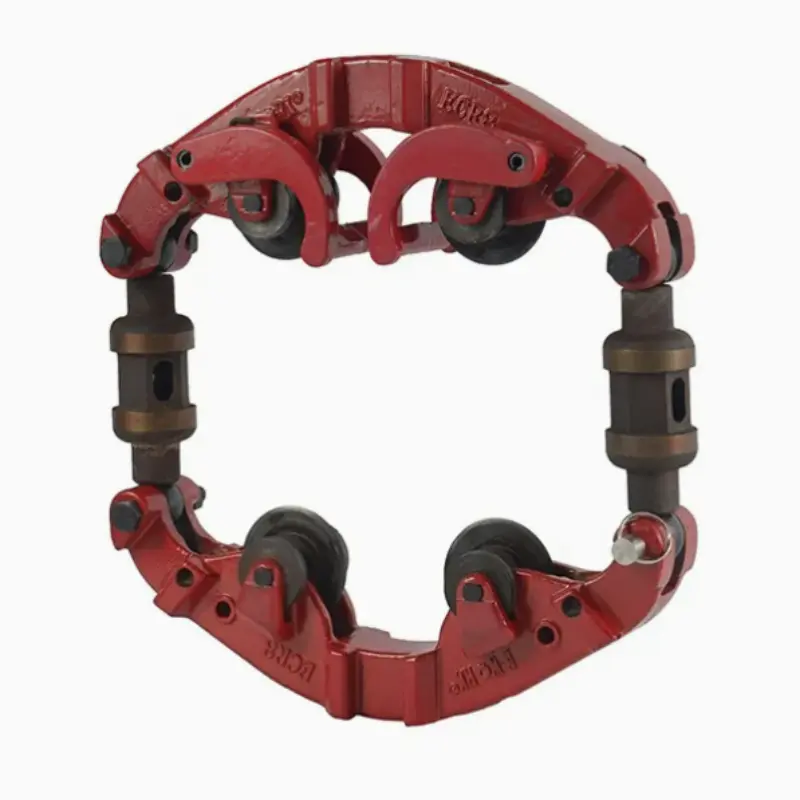

ECR12 Manual Rotary Pipe Cold Cutter – Low Clearance

1. Low-Clearance Design

• Designed for confined working environments, the ECR rotary pipe cutter requires approximately 150 mm of surrounding clearance, according to the manufacturer’s specifications.
• It is suitable for pipe cutting in narrow trenches, pipe racks and other locations where conventional cutting equipment may be difficult to operate.

2. Manual Cold Cutting Operation

• The manually operated cutting mechanism requires no external electrical or pneumatic power source.
• The mechanical cutting process avoids the heat and sparks associated with conventional abrasive or thermal cutting methods, making it useful where hot-work restrictions apply.

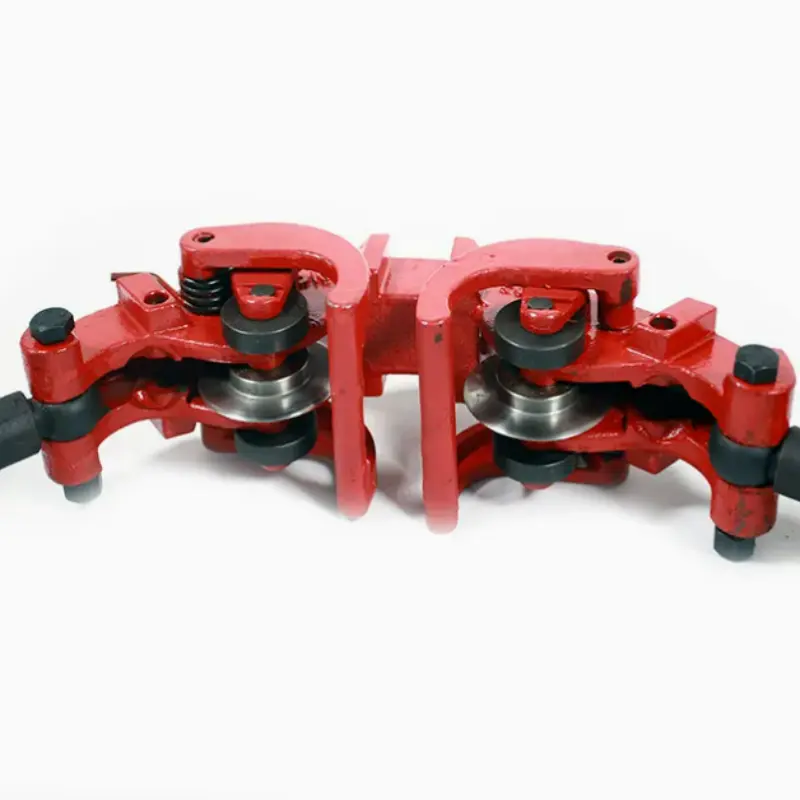

3. Four-Wheel Cutting System

• The ECR series features a four-wheel cutting arrangement designed to cut around the pipe circumference.
• The cutting wheels are manufactured from high-strength tool steel and heat-treated for a balance of strength, toughness and wear resistance.
• This design supports controlled cutting and reduces the need for extensive manual effort.

4. Durable Frame Construction

• The reinforced cutting frame is designed for industrial use.

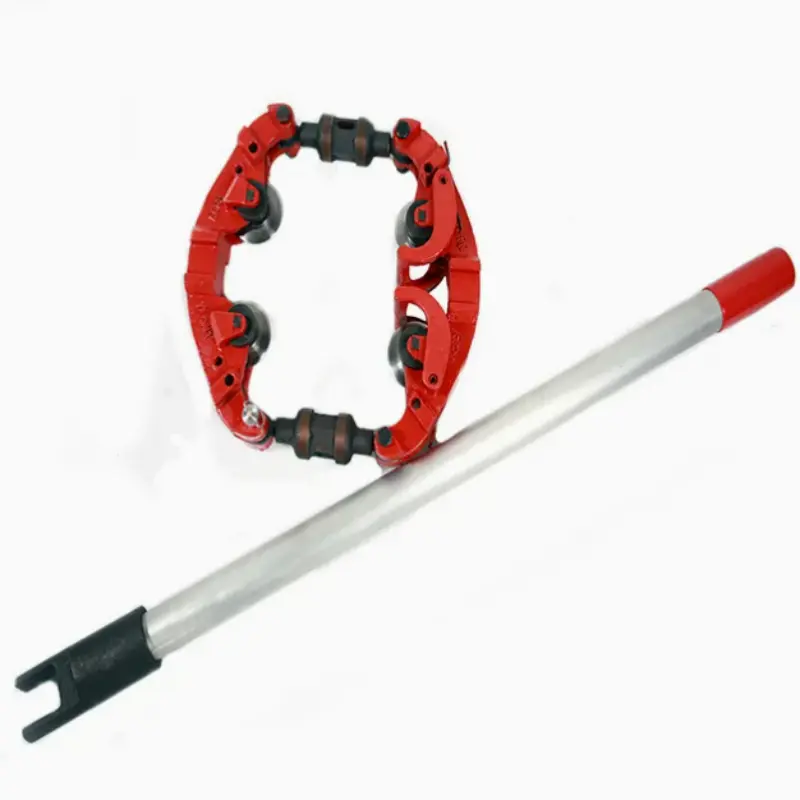

• An aluminum-alloy operating handle, guide frame and adjustable feeding mechanism help operators position the cutter and control cutting progress.

5. Clean Cutting Process

• Unlike abrasive cutting methods, rotary wheel cutting does not normally generate abrasive cutting dust or large quantities of metal chips.
• This helps reduce debris entering the pipeline and minimizes additional cleaning requirements.

6. Portable and Easy to Operate

• The compact mechanical structure makes the ECR series suitable for workshop and field operations.

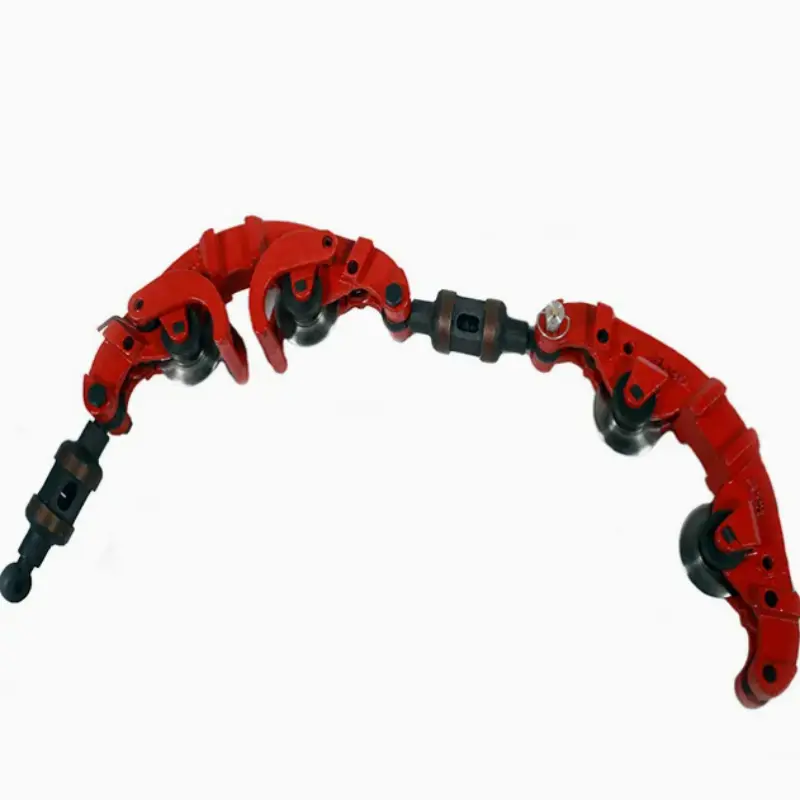

• The quick-opening frame and adjustable feeding components help simplify installation, positioning and removal.
