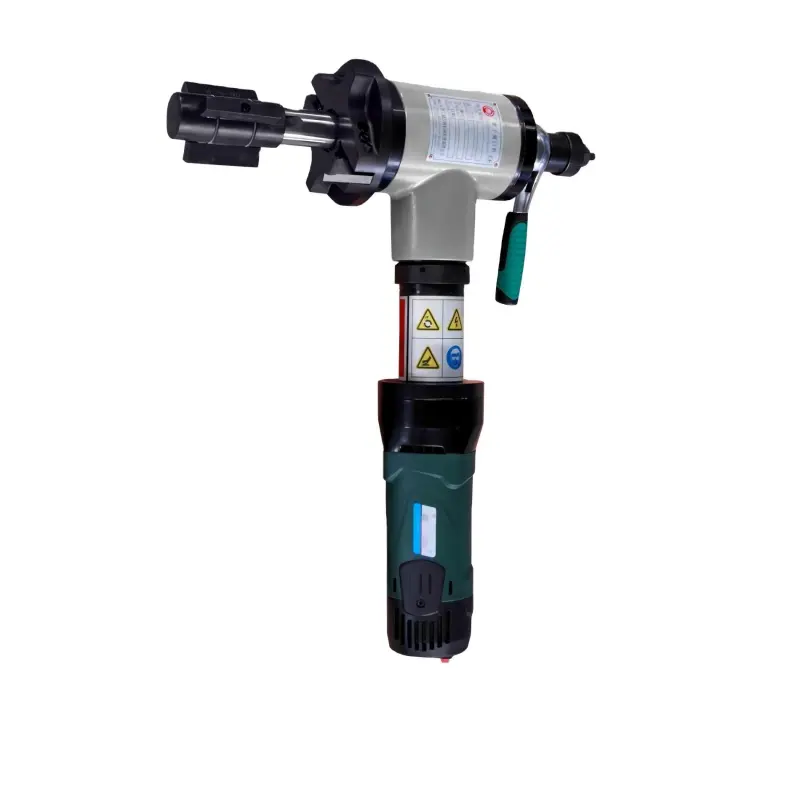

ID-Mounted Electric Pipe Beveling Machine – Portable Pipe End Beveler
The ID-Mounted Electric Pipe Beveling Machine is a portable, high-performance pipe end preparation tool designed for accurate beveling, facing, chamfering and weld joint preparation of metal pipes.
Featuring an internal expansion clamping system, the machine mounts securely inside the pipe bore, providing stable alignment and precise cutting performance. Its lightweight and compact design makes it ideal for on-site pipe installation, industrial maintenance and workshop fabrication.
Powered by a high-performance electric motor, the machine delivers efficient machining with adjustable cutting depth for consistent beveling results.
The machine supports multiple weld preparation profiles, including U-type grooves, V-type bevels and compound bevels. Standard bevel angles include 0°, 30°, 37.5° and 45°, with additional profiles available depending on cutting tool configuration.
Designed for carbon steel, stainless steel and alloy steel pipes, the EISE Series provides a reliable solution for pipeline contractors, industrial maintenance teams and professional welding applications.
Key Features
Precision ID-Mounted Clamping
The internal expanding mandrel secures the machine inside the pipe, ensuring accurate positioning and stable machining performance.
Powerful Electric Drive
A high-performance electric motor provides consistent cutting power for pipe beveling, facing and weld preparation.
Portable and Lightweight Design
Compact construction makes the machine convenient for on-site operations, including industrial pipeline installation and maintenance.
Multiple Beveling Profiles
Supports U-groove, V-groove, chamfering and compound beveling with suitable cutting tools.
Adjustable Cutting Depth
The precision feed mechanism allows operators to control cutting depth and achieve consistent bevel profiles.
Quick Installation
The expanding mandrel automatically centers the machine inside the pipe bore when properly adjusted, reducing installation and alignment time.
Versatile Pipe Material Compatibility
Suitable for carbon steel, stainless steel and alloy steel pipes with the appropriate cutting tool configuration.
Accurate Weld Preparation
Standard beveling angles of 0°, 30°, 37.5° and 45° accommodate common industrial welding requirements.
Technical Specifications

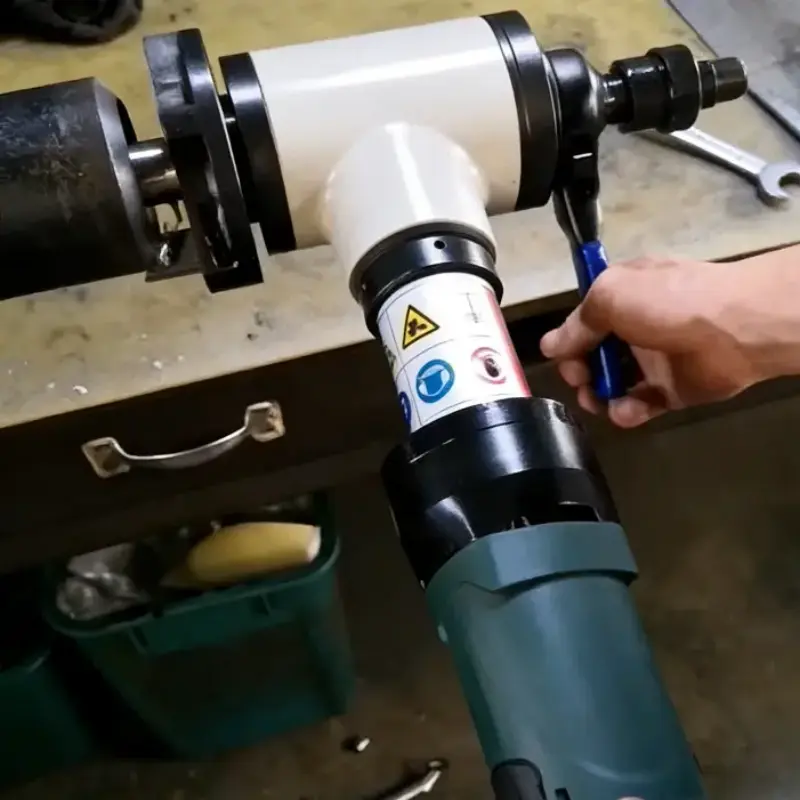

Electric Pipe Beveling Machine – EISE Series
| Model | Machining Range (ID) | Max. Wall Thickness | Cutter Speed |
| EISE-30 | 18–28 mm | ≤15 mm | 50 r/min |
| EISE-80 | 28–76 mm | ≤15 mm | 55 r/min |
| EISE-120 | 40–120 mm | ≤15 mm | 30 r/min |
| EISE-159 | 65–159 mm | ≤20 mm | 35 r/min |
Electric Motor Specifications
| Parameter | Specification |
| Drive Type | Electric Motor |
| Power Supply | AC 220 V |
| Frequency | 50 Hz |
| Rated Current | 6 A |
| Rated Power | 1.22 kW |
| Mounting Method | Internal Expansion Mandrel |
| Standard Bevel Angles | 0°, 30°, 37.5°, 45° |
| Suitable Materials | Carbon Steel, Stainless Steel, Alloy Steel |
| Main Operations | Beveling, Facing, Chamfering, Weld Preparation |
Note: Electrical specifications are based on the supplied catalog. Confirm the power supply, motor configuration and machining capacity for each model before ordering.

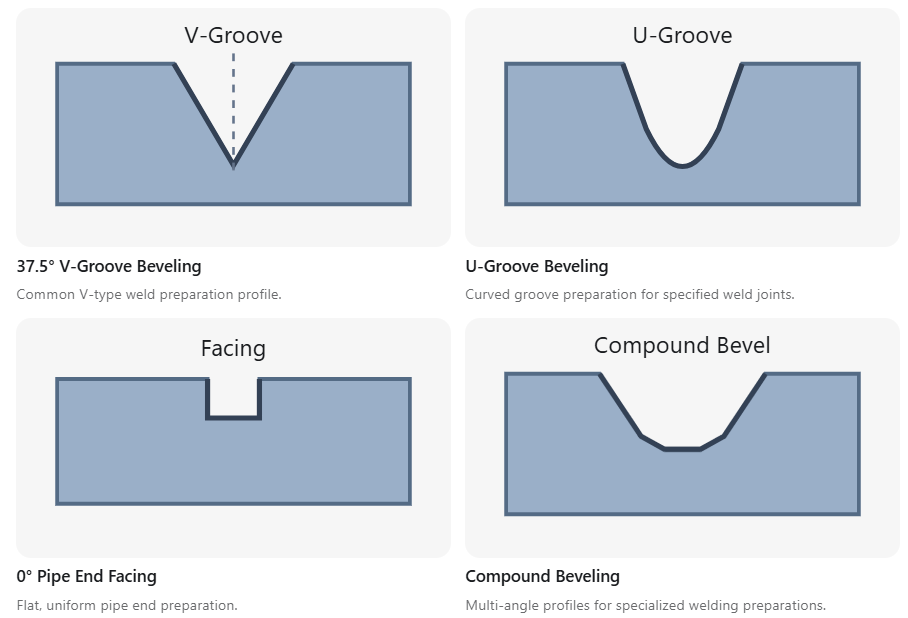

Beveling and Weld Preparation Options
The ID-Mounted Electric Pipe Beveling Machine supports different cutting tool configurations to meet industrial welding preparation requirements.
Illustrative weld preparation profiles. Final bevel geometry, root face and tool compatibility should follow the applicable welding procedure and manufacturer specifications.
Technical Advantages
1. Automatic Centering with Internal Expansion Mandrel
The expansion mechanism allows the machine to mount securely inside the pipe. This provides accurate alignment and helps maintain consistent bevel geometry throughout the machining operation.
2. High-Performance Electric Motor
The electric drive delivers stable cutter rotation, supporting efficient machining of carbon steel, stainless steel and alloy steel pipes with suitable tooling.
3. Adjustable Cutting Depth
A controlled feed mechanism enables precise adjustment of machining depth, helping operators achieve the required bevel angle and pipe end geometry.
4. Multiple Welding Preparation Profiles
The machine supports V-groove, U-groove, facing and compound beveling operations, making it suitable for a variety of industrial welding procedures.
5. Portable On-Site Operation
Its compact design enables pipe end preparation directly at installation or maintenance sites, reducing the need to transport pipes to a workshop.
6. Easy Installation and Operation
The internal clamping mechanism and straightforward operating design help reduce setup complexity and improve field machining efficiency.
Applications
The ID-Mounted Electric Pipe Beveling Machine is widely used in industrial pipe installation, fabrication and maintenance.
Oil & Gas Pipeline Construction
Provides accurate pipe end preparation for pipeline welding, installation and repair.
Petrochemical and Chemical Plants
Suitable for pipe beveling during equipment installation, plant shutdowns and piping modifications.
Power Generation Facilities
Used for industrial piping and weld preparation in conventional and nuclear power applications, subject to project requirements.
Boiler and Pressure Piping
Supports beveling and facing of boiler tubes and industrial pressure piping systems.
Pharmaceutical and Process Industries
Suitable for pipe fabrication and maintenance applications requiring controlled pipe end preparation.
Shipbuilding and Offshore Engineering
Provides portable beveling capability for marine piping, offshore fabrication and on-site installation.
Industrial Pipe Fabrication Workshops
Used for repeatable pipe end beveling, facing and weld joint preparation.
How to Use the Electric Pipe Beveling Machine
- Select the Correct Model: Choose the machine according to pipe inside diameter, wall thickness and material.
- Install the Beveling Tool: Select the appropriate cutting tool based on the required beveling profile.
- Position the Machine: Insert the expansion mandrel into the pipe bore.
- Secure the Internal Clamp: Expand and tighten the mandrel to center and secure the machine.
- Connect the Power Supply: Verify that the electrical supply matches the machine’s rated voltage and frequency.
- Begin Machining: Start the motor and gradually feed the cutting tool into the pipe end.
- Inspect the Finished Surface: Verify bevel angle, cutting depth and surface finish before welding.
Safety note: Secure and isolate the pipe before machining. Disconnect electrical power before changing tools or making adjustments. Follow the manufacturer’s operating instructions and site safety procedures.
Why Choose Our Electric Pipe Beveling Machine?
The EISE Series ID-Mounted Electric Pipe Beveling Machine combines portable construction, precise machining and flexible cutting tool options for professional pipe end preparation.
Its internal expansion mounting system ensures stable positioning, while the electric drive provides consistent cutting performance for welding preparation applications.
With multiple models for different pipe sizes and support for various beveling profiles, the machine is a practical choice for pipeline contractors, industrial maintenance providers, welding equipment suppliers and pipe fabrication workshops.
Whether used for new pipeline construction, equipment maintenance or industrial piping modifications, the EISE Series helps improve pipe end preparation consistency and welding efficiency.
Request a Quote
Looking for a professional electric pipe beveling machine for industrial pipe fabrication or on-site welding preparation?
MecBase supplies portable pipe beveling machines and compatible cutting tools for industrial applications.
Contact us for technical specifications, model selection, bulk orders and international shipping quotations.
Frequently Asked Questions
An ID-mounted electric pipe beveling machine is a portable machining tool that secures inside a pipe using an expanding mandrel. It is used to create precise bevels and prepare pipe ends for welding.
The listed EISE models cover pipe inside diameters from 18 mm to 159 mm, depending on the selected machine model.
Yes. The EISE Series can machine stainless steel pipes when equipped with suitable cutting tools and operated under appropriate cutting conditions.
Standard bevel angles include 0°, 30°, 37.5° and 45°. Additional bevel profiles may be available with specially configured cutting tools.
Yes. The machine supports U-groove and V-groove preparations, as well as facing, chamfering and compound beveling using appropriate tooling.
The supplied catalog specifies an AC 220 V, 50 Hz electric motor rated at 1.22 kW and 6 A. Please confirm the electrical configuration for the selected model.
Yes. Its portable construction and internal expansion mounting system make it suitable for on-site installation, maintenance and pipe repair operations.
The EISE-30, EISE-80 and EISE-120 models are listed for wall thicknesses up to 15 mm, while the EISE-159 is listed for up to 20 mm.
Electric machines use an electrical motor, while pneumatic machines operate with compressed air. Electric models are suitable for locations with an appropriate power supply, while pneumatic models may be preferred in certain industrial working environments.
Provide your pipe inside diameter, outside diameter, wall thickness, pipe material and required bevel profile. MecBase can help identify a suitable model and cutting tool configuration.
