ID-Mounted Pneumatic Pipe Beveling Machine – Portable Pipe End Beveler
The ID-Mounted Pneumatic Pipe Beveling Machine is a portable, heavy-duty pipe end preparation tool designed for precise beveling, facing and machining of metal pipes before welding.
Featuring an internal diameter (ID) clamping system, the machine securely mounts inside the pipe, providing stable positioning and accurate machining performance. Its compact and portable construction makes it particularly suitable for on-site pipeline installation, maintenance and industrial pipe fabrication.
Powered by compressed air, the pneumatic pipe beveling machine eliminates the need for an electrical drive motor at the cutting location. It is a practical solution for industrial facilities where electrical equipment may be restricted, subject to the applicable hazardous-area safety requirements.
The machine supports various beveling tools and cutting profiles to accommodate different welding preparation requirements.
With multiple machine sizes available, the series is suitable for a wide range of pipe diameters and industrial applications, including oil and gas pipelines, petrochemical plants, power generation facilities and mechanical piping systems.
Key Features
ID-Mounted Clamping System
The internal expansion clamping mechanism secures the machine inside the pipe, ensuring stable positioning and accurate alignment during machining.
Pneumatic Drive System
Powered by compressed air, the pneumatic models provide reliable cutting performance without an electrical drive motor.
Precision Pipe End Beveling
Designed to create consistent bevel angles and smooth pipe end surfaces for welding preparation.
Portable and Compact Design
The lightweight, portable structure makes the machine convenient for field installation, pipeline maintenance and workshop operations.
Multiple Beveling Tool Options
Interchangeable cutting tools allow different beveling profiles and pipe end preparation requirements.
Controlled Cutting Performance
The machining system provides consistent cutter rotation and controlled tool feeding to support accurate pipe end preparation.
Suitable for Industrial Applications
Designed for pipe fabrication, pipeline construction, maintenance, repair and welding preparation.
Wide Machining Range
Multiple models are available to accommodate different pipe inside diameters and wall thicknesses.
Technical Specifications

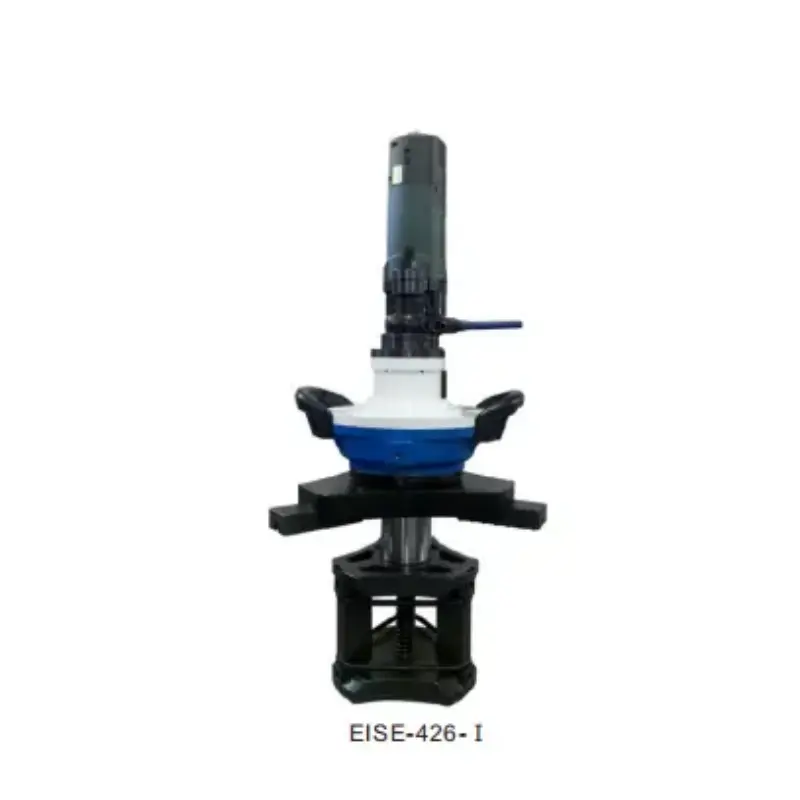

Pneumatic Pipe Beveling Machine – EISP Series
| Model | Machining Range (ID) | Max. Wall Thickness | Cutter Speed |
| EISP-252-I | 80–240 mm | ≤20 mm | 16 r/min |
| EISP-352-I | 150–330 mm | ≤20 mm | 14 r/min |
| EISP-426-I | 250–426 mm | ≤20 mm | 12 r/min |
| EISP-630-I | 300–600 mm | ≤20 mm | 10 r/min |
| EISP-850-I | 600–830 mm | ≤20 mm | 9 r/min |
Pneumatic Operating Requirements
- Drive Type: Pneumatic / Air Motor
- Required Air Pressure: 0.8–1.0 MPa
- Air Consumption: 1,000–2,000 L/min
- Mounting Method: Internal Diameter Clamping
- Operation: Portable Pipe End Machining
- Maximum Listed Wall Thickness: 20 mm

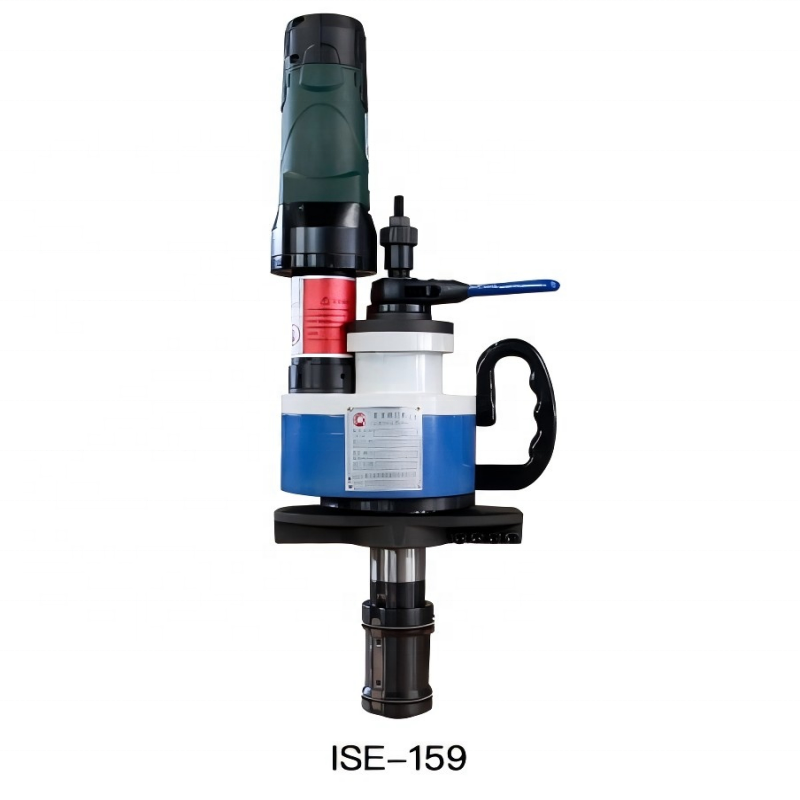

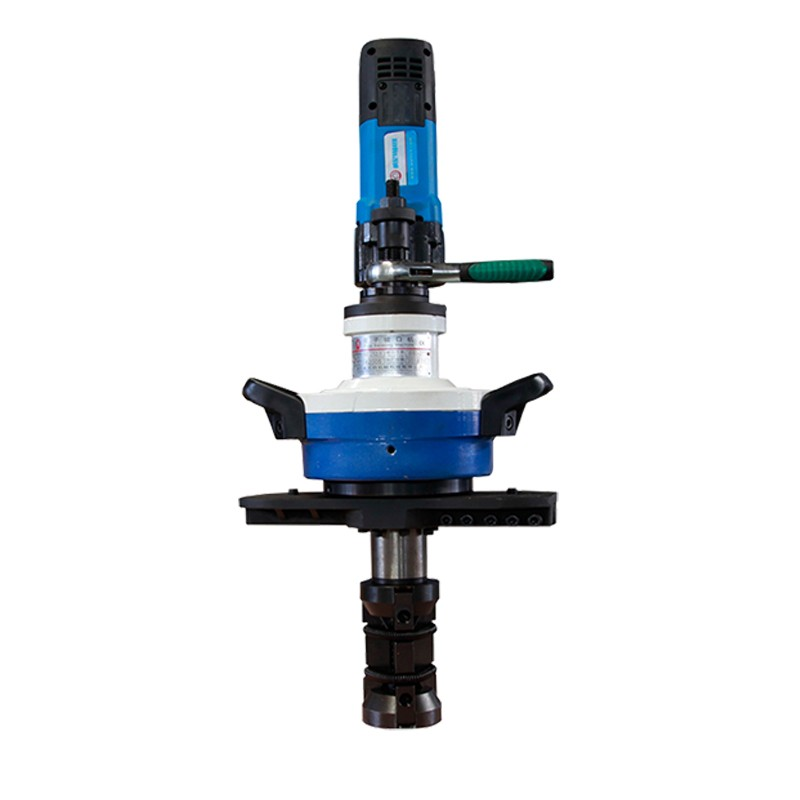

Electric Pipe Beveling Machine – EISE Series
Electric-driven models are also available for applications where electrical power is accessible.
| Model | Machining Range (ID) | Max. Wall Thickness | Cutter Speed |
| EISE-30 | 18–28 mm | ≤15 mm | 50 r/min |
| EISE-80 | 28–76 mm | ≤15 mm | 55 r/min |
| EISE-120 | 40–120 mm | ≤15 mm | 30 r/min |
| EISE-159 | 65–159 mm | ≤20 mm | 35 r/min |
The electric models provide an alternative for workshops, manufacturing facilities and general pipe fabrication applications.
Note: The model ranges and speeds above are taken from the supplied catalog. Confirm final model configuration, mounting dimensions and machining capacity before ordering.

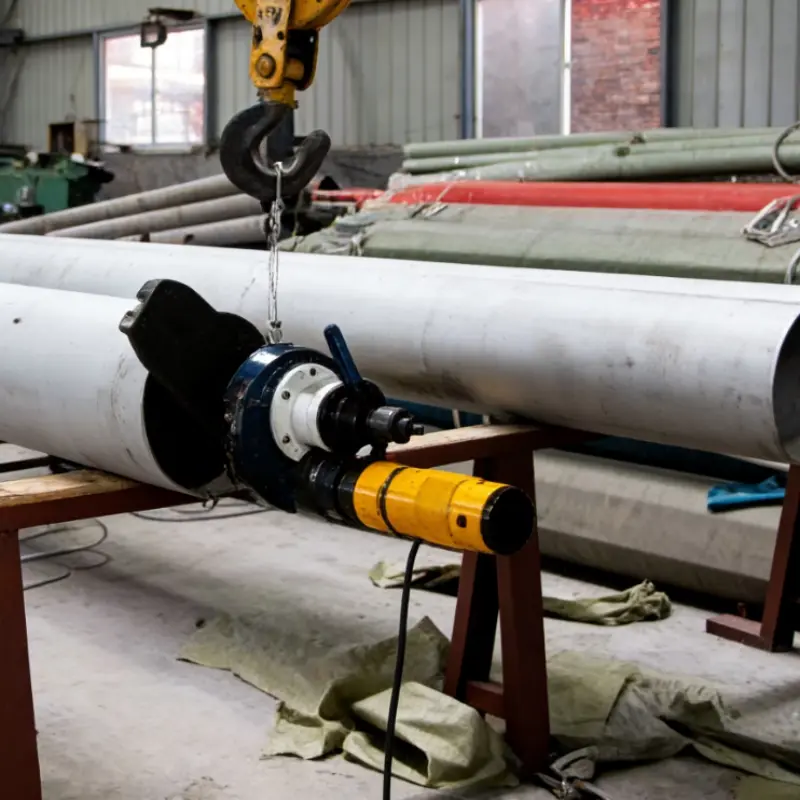

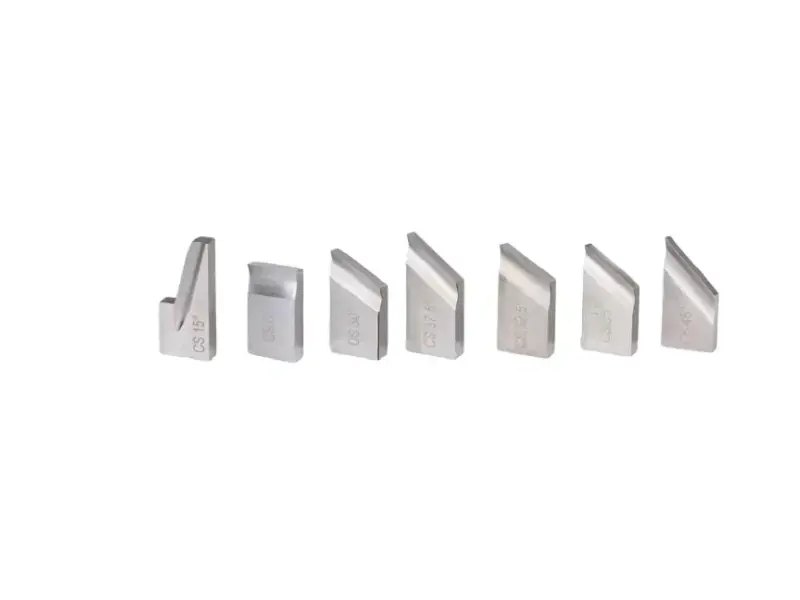

Beveling Tool Options
The ID-Mounted Pipe Beveling Machine supports interchangeable cutting tools for different pipe end preparation requirements.
Available tool configurations may include:
- Standard Beveling Tool: Creates a beveled pipe edge for welding preparation.
- Facing Tool: Machines the pipe end surface to achieve a flat, uniform finish.
- Special Beveling Tool: Supports customized bevel profiles for specific welding requirements.
- Combination Beveling Tool: Suitable for selected compound bevel and end preparation operations.
Tool selection depends on pipe material, wall thickness, required bevel angle and welding joint design.
Technical Advantages
1. Secure Internal Expansion Mounting
The internal diameter clamping system provides stable support during machining. By expanding inside the pipe, the machine can be securely positioned for consistent and accurate cutting.
2. Accurate Pipe End Preparation
The precision cutting mechanism helps produce uniform bevels and smooth pipe end surfaces, improving fit-up consistency before welding.
3. Pneumatic Power for Industrial Environments
The air-powered drive system eliminates the need for an electric motor at the machining location. This makes it useful in applications where pneumatic tools are preferred.
Use in potentially explosive atmospheres requires suitable equipment certification and a site-specific safety assessment.
4. Portable On-Site Operation
The compact machine structure allows operators to perform pipe end machining directly at installation sites, reducing the need to transport pipes to a workshop.
5. Flexible Cutting Tool Configurations
Replaceable beveling tools support different welding joint preparation requirements, helping improve equipment versatility.
6. Durable Mechanical Construction
Designed for demanding industrial environments, the machine features a robust machining structure and replaceable cutting tools for repeated pipe processing operations.
Applications
Oil & Gas Pipelines
Used for pipe end beveling and weld preparation during pipeline construction, maintenance and repair operations.
Petrochemical and Chemical Plants
Suitable for pipe preparation during industrial equipment installation, maintenance shutdowns and piping modifications.
Power Generation Facilities
Provides accurate pipe end machining for industrial piping systems and equipment maintenance.
Industrial Pipe Fabrication
Used in fabrication workshops to prepare pipe ends for welding and assembly.
Shipbuilding and Offshore Engineering
Suitable for pipe fitting, installation and maintenance operations in marine and offshore fabrication projects.
Mechanical Piping Systems
Supports pipe end preparation for industrial utilities, manufacturing plants and mechanical equipment installations.
How to Use the ID-Mounted Pipe Beveling Machine
- Select the Appropriate Model: Choose the machine according to the pipe inside diameter and wall thickness.
- Install the Cutting Tool: Select and securely install the required beveling or facing tool.
- Position the Machine: Insert the mounting assembly into the pipe end.
- Secure the Internal Clamp: Expand the clamping mechanism to hold the machine firmly in position.
- Connect the Air Supply: For pneumatic models, connect a suitable compressed air supply and verify the operating pressure.
- Start Machining: Operate the machine and gradually feed the cutting tool into the pipe end.
- Inspect the Finished Bevel: Check the bevel profile and surface finish before welding.
Safety: Follow the manufacturer’s operating instructions. Secure the workpiece, use appropriate personal protective equipment and isolate pressurized pipelines before machining. Never assume pneumatic equipment is automatically approved for hazardous locations.
Why Choose Our ID-Mounted Pipe Beveling Machine?
The ID-Mounted Pneumatic Pipe Beveling Machine combines portable construction, reliable internal clamping and accurate cutting performance to meet professional pipe end preparation requirements.
Its pneumatic drive system makes it suitable for applications where electrically powered equipment is less practical, while the interchangeable cutting tools provide flexibility for different beveling operations.
With multiple machine sizes available, the series offers a practical solution for industrial contractors, pipeline construction companies, welding equipment distributors and maintenance service providers.
Whether used for new pipeline construction, industrial plant maintenance or workshop fabrication, this equipment helps achieve consistent pipe end preparation for welding operations.
Request a Quote
Looking for a portable pneumatic pipe beveling machine for industrial pipeline construction or welding preparation?
Contact MecBase for model selection, technical specifications, cutting tool options, bulk pricing and international shipping quotations.
Frequently Asked Questions
An ID-mounted pipe beveling machine is a tool that clamps inside a pipe using an internal expansion mechanism. It machines the pipe end to create bevels or flat surfaces required for welding preparation.
Pneumatic models operate using compressed air, while electric models use an electric motor. Pneumatic machines are often preferred where compressed air is readily available or electrical equipment is restricted.
The listed pneumatic EISP models accommodate pipe inside diameters from 80 mm to 830 mm, depending on the selected model.
The pneumatic models require an operating air pressure of 0.8–1.0 MPa, with a specified air consumption of 1,000–2,000 L/min.
The machine is intended for metal pipe machining, including steel applications. Stainless steel capability depends on the machine configuration, cutting tool material and machining conditions. Please confirm the pipe grade before ordering.
The listed pneumatic EISP models support wall thicknesses up to 20 mm, subject to pipe material and cutting conditions.
Yes. Its portable structure and internal mounting system make it suitable for pipe end machining during field installation, maintenance and repair.
Yes, appropriate interchangeable cutting tools can support beveling and pipe end facing operations, depending on the machine configuration.
Pneumatic tools may be preferred in some hazardous environments because they do not require an electric drive motor. However, use in explosive atmospheres requires confirmation of equipment suitability, applicable certification and site safety procedures.
Provide your pipe inside diameter, outside diameter, wall thickness, pipe material and required bevel profile. MecBase can help identify a suitable model and cutting tool configuration.
