300kg Heavy Duty Welding Positioner – Rotary Welding Table
300kg Load Capacity | Precise Rotation | 0–90° Tilting | Foot Pedal Control

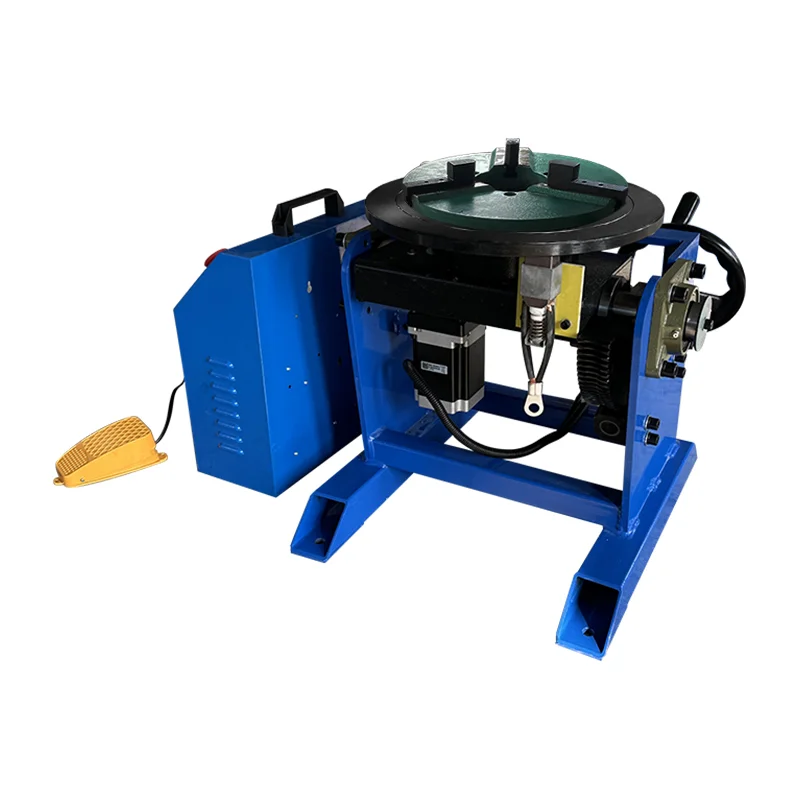

The MECBASE BWJ-300Z Heavy Duty Welding Positioner is a robust rotary welding table designed for stable workpiece positioning and controlled rotation during welding operations.
With a maximum horizontal load capacity of 300kg and vertical load capacity of 150kg, this industrial welding positioner is suitable for pipes, flanges, cylindrical components and various metal fabrication applications.
Equipped with a 120W motor, the BWJ-300Z offers adjustable rotation speeds from 0.5 to 5 RPM and a manually tiltable worktable with a 0–90° adjustment range. Its compact structure, convenient foot pedal operation and integrated welding current connection system make it a practical solution for industrial workshops and semi-automatic welding applications.
Technical Specifications
| Parameter | Specification | Parameter | Specification |
| Model | BWJ-300Z | Horizontal Load | 300 kg |
| Vertical Load | 150 kg | Motor Power | 120 W |
| Worktable Diameter | 360 mm | Rotation Speed | 0.5–5 RPM |
| Tilting Angle | 0–90° | Through-Hole Diameter | 65 mm |
| Compatible Chuck | 200 / 250 / 300 mm | Overall Dimensions | 440 × 500 × 455 mm |
| Speed Adjustment | Stepless | Rotation Direction | Forward / Reverse |
| Tilting Operation | Manual | Rotation Control | Foot Switch / Control Box |
| Welding Current Connection | Carbon Brush Assembly | Connection Cable Rating | 300 A |
Note: Actual permissible load depends on the workpiece center of gravity, mounting arrangement and operating conditions. Electrical supply, standard accessories and optional automation functions should be confirmed before ordering.
Key Features & Benefits
1. Heavy-Duty 300kg Load Capacity
The BWJ-300Z is designed to support workpieces weighing up to 300kg in the horizontal position and 150kg in the vertical position.
Its reinforced construction provides stable workpiece support for medium-to-heavy fabrication tasks, helping reduce manual repositioning during circumferential welding.
2. Smooth Rotation with Adjustable Speed
Powered by a 120W motor, the positioner features a variable rotation speed of 0.5–5 RPM.
Stepless speed adjustment allows operators to select an appropriate rotation speed according to the workpiece diameter and welding requirements.
Forward and reverse rotation functions provide additional operating flexibility.
3. Adjustable 0–90° Tilting Worktable
The BWJ-300Z features a manually adjustable tilting mechanism that allows the worktable to move between 0° and 90°.
Clear angle markings help operators identify the table position and adjust the workpiece to a convenient welding angle.
The manual adjustment handle allows practical and controlled positioning during setup.
4. Integrated Welding Current Connection
The positioner features a conductive carbon brush assembly and welding current connection arrangement.
A 300A-rated connection cable is described in the standard product design, supporting the welding current return path during compatible welding operations.
This arrangement helps provide a dedicated electrical connection for the rotating worktable.
5. Convenient Foot Pedal Operation
The foot switch allows operators to control worktable rotation without continuously using the main control panel.
This hands-free operation is especially useful during repetitive circular welding tasks where maintaining the welding torch position is important.
6. Flexible Welding Automation Options
The BWJ-300Z supports optional welding accessories, including welding chucks, pneumatic tailstocks, torch holders and welding control systems.
Optional timer controls and welding machine linkage can support semi-automatic welding processes.
For more advanced applications, a compatible PLC touchscreen system may provide programmable rotation settings, pneumatic torch holder control and parameter storage.
Product Details
Conductive Carbon Brush Assembly
The integrated conductive carbon brush provides an electrical connection to the rotating assembly, supporting welding current return during rotation.
Clear Angle Scale
Visible angle markings make it easier to adjust the worktable to the desired tilting position.
Manual Tilting Handle
The adjustment handle enables convenient worktable tilting from 0° to 90°.
Foot-Operated Rotation Control
The foot pedal allows convenient start/stop rotation control during welding operations.
Compact Industrial Construction
The BWJ-300Z combines a 300kg horizontal load rating with a compact 440 × 500 × 455mm machine envelope.
Optional Accessories
| Accessory | Application |
| XH-200 Welding Chuck | Clamping compatible smaller circular components |
| XH-250 Welding Chuck | Securing compatible pipes and flanges |
| XH-300 Welding Chuck | Holding larger compatible circular workpieces |
| Pneumatic Tailstock | Supporting and positioning elongated workpieces |
| Pneumatic Torch Holder | Adjustable torch positioning and movement |
| TJ-400 Roller Support | Additional support for suitable pipe assemblies |
| TJ-500 Roller Support | Support for longer compatible workpieces |
| Welding Control Box | Optional rotation timing and welder linkage |
| PLC Touchscreen Control | Programmable rotation and accessory control |
Optional accessories are available according to project requirements and may be quoted separately.
Applications of the 300kg Welding Positioner
- Pipe Circumferential Welding
- Provides controlled rotation of compatible pipes for continuous circumferential weld seams.
- Flange-to-Pipe Welding
- Helps position flange assemblies and maintain consistent rotation during welding.
- Cylindrical Component Fabrication
- Suitable for circular housings, sleeves and other fabricated metal components within the rated loading capacity.
- TIG and MIG Welding
- Can be used as a workpiece rotation platform alongside compatible TIG, MIG/MAG and other arc welding equipment.
- Semi-Automatic Welding Operations
- Can be equipped with optional torch holders and control accessories to support repeatable welding sequences.
Why Choose MECBASE Welding Positioners?
- Industrial Welding Equipment Solutions
- MECBASE supplies welding positioners, welding chucks, rotators and related machinery for professional metal fabrication and industrial applications.
- Flexible Product Configurations
- We help customers select suitable welding equipment and accessories according to their workpiece dimensions, welding applications and production requirements.
- International B2B Supply Support
- MECBASE supports industrial buyers, equipment distributors and fabrication workshops with product selection, technical clarification, quotations and export arrangements.
Request a Quote – 300kg Welding Positioner
Looking for a reliable heavy-duty rotary welding positioner for pipe welding, flange fabrication or industrial production?
Contact MECBASE for product specifications, available accessories and B2B quotations.
Share your workpiece dimensions, application and required quantity, and our team will help you select a suitable welding positioner configuration.
Frequently Asked Questions

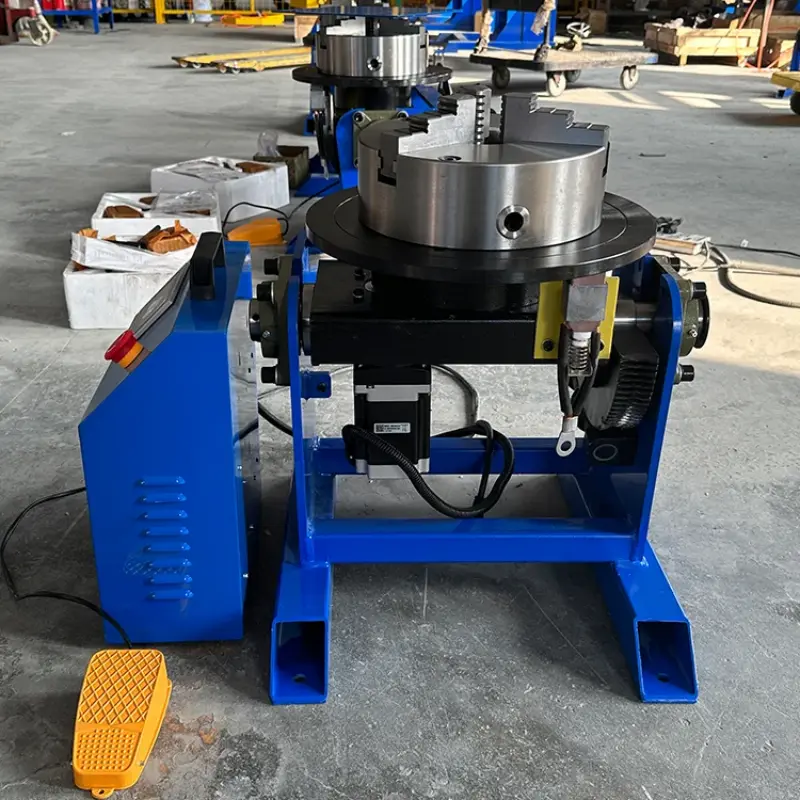

Yes. The BWJ-300Z can be configured with compatible 200mm, 250mm or 300mm welding chucks, depending on the workpiece and mounting requirements.
The machine can provide independent workpiece rotation. For synchronized operation with a welding power source, the available control interface and equipment compatibility must be confirmed.
No. The stated horizontal load capacity is 300kg, while the vertical load rating is 150kg. Safe loading also depends on workpiece size, center of gravity and mounting position.
Important factors include workpiece diameter, weight, clamping range, jaw configuration, chuck mounting compatibility and the required rotation speed.
Optional timer controls, welding machine linkage and PLC-based configurations may support semi-automatic or automated applications. Compatibility should be reviewed before ordering.
Please provide your workpiece dimensions, maximum weight, welding process, preferred chuck size, order quantity, electrical requirements and delivery destination.
