1 Ton Heavy Duty Welding Positioner – 1000kg Electric Tilting Rotary Table
The MECBASE 1 Ton Heavy Duty Welding Positioner is designed for rotating, tilting, and accurately positioning heavy workpieces during industrial welding operations. With a 1000kg load capacity, electric tilting mechanism, and variable-frequency speed control, it provides a reliable solution for pipe welding, flange fabrication, and heavy-duty metalworking applications.
Built with a robust steel structure, the positioner offers stable workpiece support and controlled rotation. Its motorized tilting worktable allows operators to adjust the welding angle, helping maintain a favorable welding position for better weld pool control and consistent weld formation.

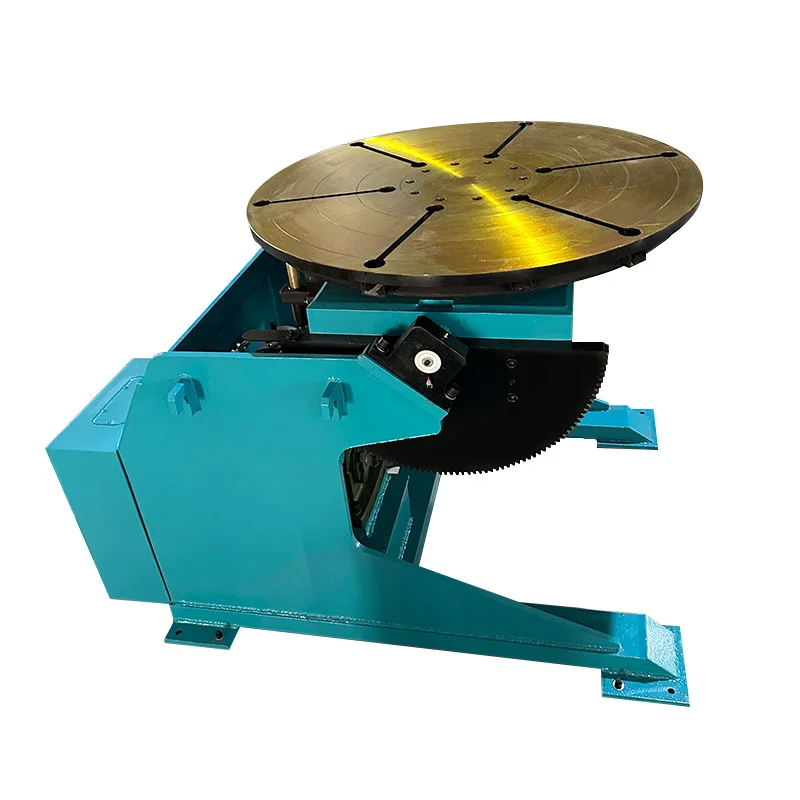

Equipped with a handheld control unit and compatible with optional heavy-duty welding chucks, this rotary welding positioner is suitable for fabrication workshops, machinery manufacturers, and industrial welding applications.
Key Features & Benefits
1000kg Heavy-Duty Load Capacity
- Designed to handle workpieces weighing up to 1000kg under specified loading conditions, this welding positioner provides stable support for heavy fabrication tasks.
- Its reinforced steel construction offers structural strength and stability during workpiece rotation and tilting.
Electric Tilting Worktable
- The motor-driven tilting mechanism allows operators to adjust the worktable angle without manually repositioning heavy workpieces.
- By positioning weld seams in a more favorable orientation, the system helps improve welding accessibility, weld pool control, and operator efficiency.
Variable Frequency Speed Control
- Equipped with a variable-frequency drive (VFD), the positioner provides smooth, stepless rotation speed adjustment.
- The BWJ-1T model offers a rotation speed range of 0.1–1 rpm, allowing operators to select suitable speeds for different workpiece diameters and welding requirements.
Independent Rotation & Tilting Motors
- The positioner features separate motors for worktable rotation and electric tilting.
- The BWJ-1T model is equipped with a 0.75kW rotation motor and a 0.75kW tilting motor, providing controlled movement for heavy workpiece positioning.
Convenient Handheld Control
- A handheld control unit allows operators to manage worktable movement and adjust rotation speed conveniently.
- This design makes it easier to control workpiece positioning during setup and welding operations.
Flexible Welding Chuck Compatibility
- Optional XH600 and XH750 circular welding chucks, as well as XH1000, XH1200, and XH1600 heavy-duty triangular welding chucks, are available for different workholding requirements.
- The appropriate chuck should be selected according to the workpiece dimensions, mounting interface, and permissible loading conditions.

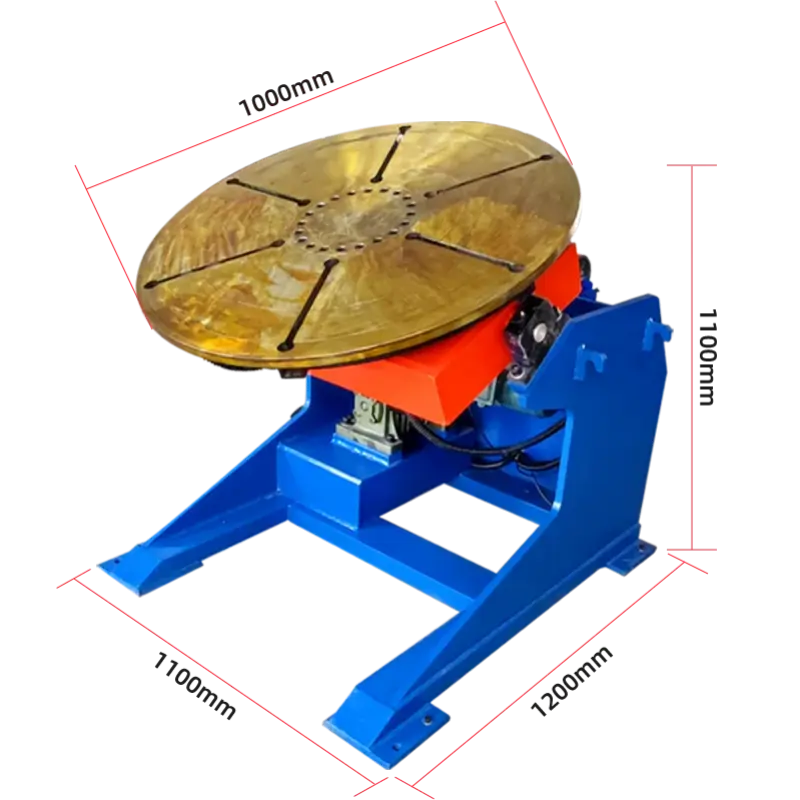

Technical Specifications
| Parameter | BWJ-1T | BWJ-1.2T | BWJ-2T |
| Load Capacity | 1000 kg | 1200 kg | 2000 kg |
| Tilting Motor Power | 0.75 kW | 0.75 kW | 1.5 kW |
| Rotation Motor Power | 0.75 kW | 0.75 kW | 1.5 kW |
| Rotation Speed | 0.1–1 rpm | 0.1–1 rpm | 0.1–1 rpm |
| Worktable Diameter | 1000 mm | 1000 mm | 1200 mm |
| Center of Gravity Distance | 250 mm | 250 mm | 250 mm |
| Eccentricity | 150 mm | 150 mm | 150 mm |
| Machine Weight | 1000 kg | 1000 kg | 1400 kg |
| Overall Dimensions | 1200 × 1100 × 1100 mm | 1200 × 1100 × 1100 mm | 1550 × 1440 × 1000 mm |
| Max. Turning Diameter at 90° | Ø1300 mm | Ø1300 mm | Ø1780 mm |
Note: Rated capacity is subject to the specified center of gravity, eccentricity, and operating conditions. Specifications may vary depending on the final configuration.

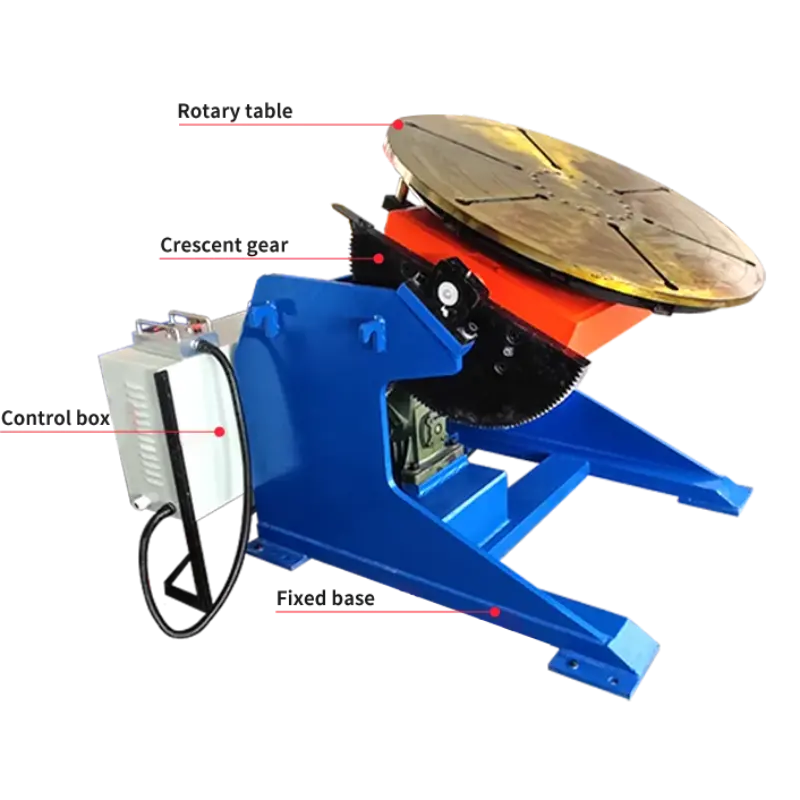

Product Details
High-Performance Rotary Drive
The rotary drive system uses a quality motor and variable-frequency speed regulation to deliver smooth worktable rotation. Adjustable speeds allow the operator to match workpiece rotation to the welding process.
Copper Rod & Carbon Brush Assembly
The copper-based conductive assembly provides an electrical return path through the rotating worktable, supporting reliable welding operations when properly connected.
Electric Tilting Motor
The dedicated tilting motor allows controlled adjustment of the worktable angle, reducing the need for manual handling and improving welding accessibility.
Clear Angle Graduation
Clearly engraved angle markings help operators monitor the worktable tilt and position workpieces more accurately during setup.

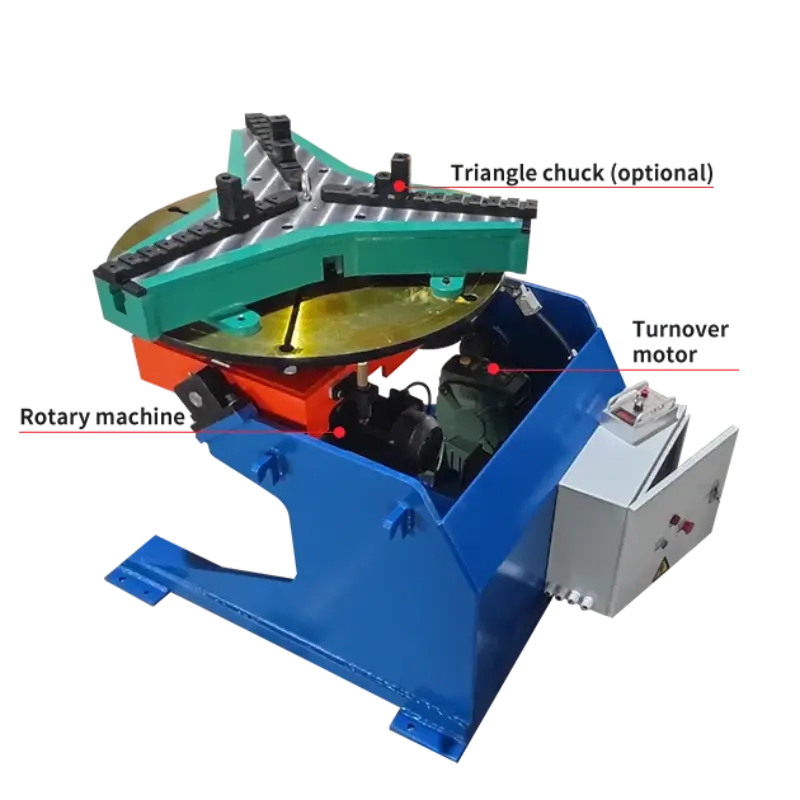

Optional Welding Chucks
The MECBASE heavy-duty welding positioner can be equipped with compatible welding chucks for different workpiece shapes and clamping requirements.
Circular Welding Chucks
XH600 and XH750 circular chucks provide workholding options for compatible round pipes, flanges, and cylindrical components.

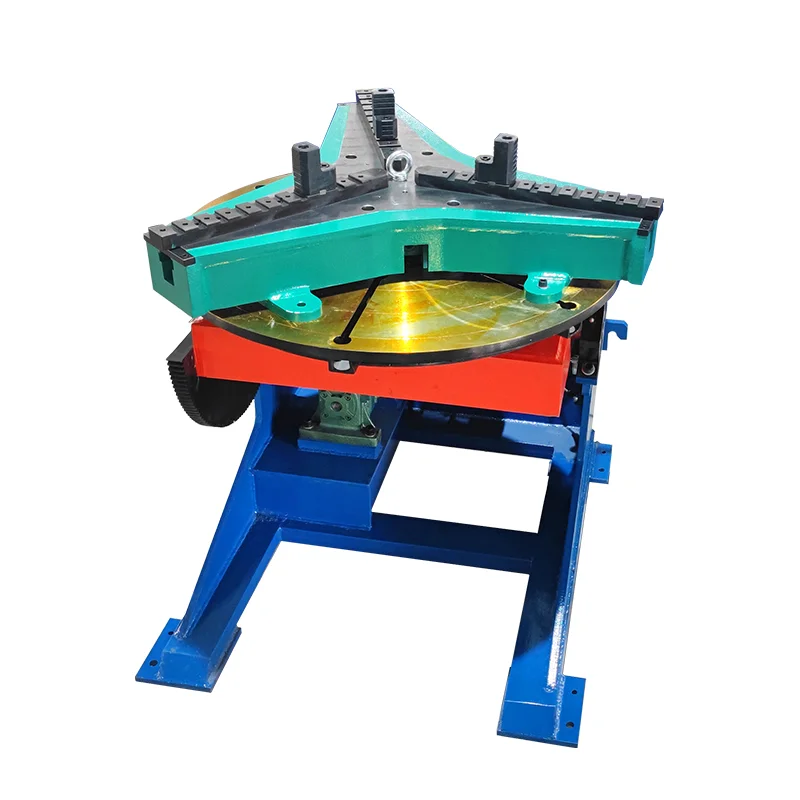

Heavy-Duty Triangular Welding Chucks
XH1000, XH1200, and XH1600 triangular chucks are designed for heavy-duty clamping applications. Final chuck selection must account for the chuck’s weight, clamping range, and the positioner’s allowable load and eccentricity.

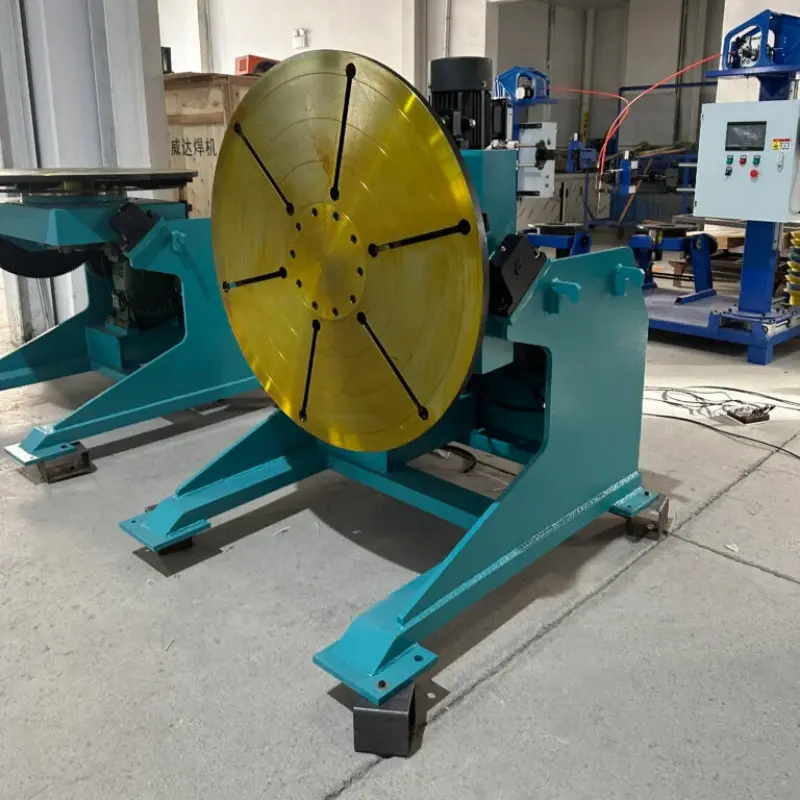

Applications
Pipe Welding
Provides controlled rotation for pipe assemblies and circumferential welding.
Flange Welding
Helps position flanges and pipe connections for easier welding access.
Pressure Vessel Fabrication
Supports welding of compatible vessel and cylindrical components within rated loading limits.
Heavy Machinery Manufacturing
Suitable for positioning heavy fabricated components during welding and assembly.
Why Choose MECBASE Welding Positioners?
MECBASE provides industrial welding equipment and workholding solutions for fabrication workshops, machinery manufacturers, and industrial distributors.
Our welding positioner range includes different load capacities and configurations to meet various production requirements. From selecting an appropriate rotating worktable to matching a compatible welding chuck, we help customers evaluate equipment according to their workpiece dimensions and operating conditions.
Whether you need a standalone heavy-duty welding positioner or a configured system with compatible workholding accessories, MECBASE can assist with product selection and quotation.
Request a Quote
Looking for a reliable 1 Ton Heavy Duty Welding Positioner for your fabrication workshop?
MECBASE offers 1000kg welding positioners with electric tilting, variable-speed rotation, and compatible welding chuck options.
Contact us with your workpiece specifications and project requirements to receive technical assistance, configuration recommendations, and a competitive quotation.
Contact MECBASE Today for Pricing & Technical Support.
Frequently Asked Questions
Compatibility depends on the chuck's mounting dimensions, bolt pattern, weight, and clamping range. Please provide the chuck model or technical drawing for evaluation.
Yes, within the permissible eccentricity and center-of-gravity limits. For the BWJ-1T model, the specified eccentricity is 150mm and the center-of-gravity distance is 250mm. Workpieces exceeding these conditions require additional load evaluation.
It can be used with compatible TIG, MIG, and other welding setups, provided the workholding arrangement, welding current return path, and control configuration meet the application requirements.
Please specify whether you require the positioner alone or a complete configuration with a welding chuck when requesting a quotation.
Please provide the workpiece weight, dimensions, center of gravity, required rotation speed, welding process, and any special clamping or automation requirements.
Check the available floor space, foundation load capacity, electrical requirements, workpiece clearance, and handling equipment. Adequate clearance must be provided for the full workpiece rotation and tilting envelope.
