10kg Welding Positioner – Compact & Precision Turntable
Compact Tilt & Rotate Welding Positioner for Small Parts, Pipes & Flanges

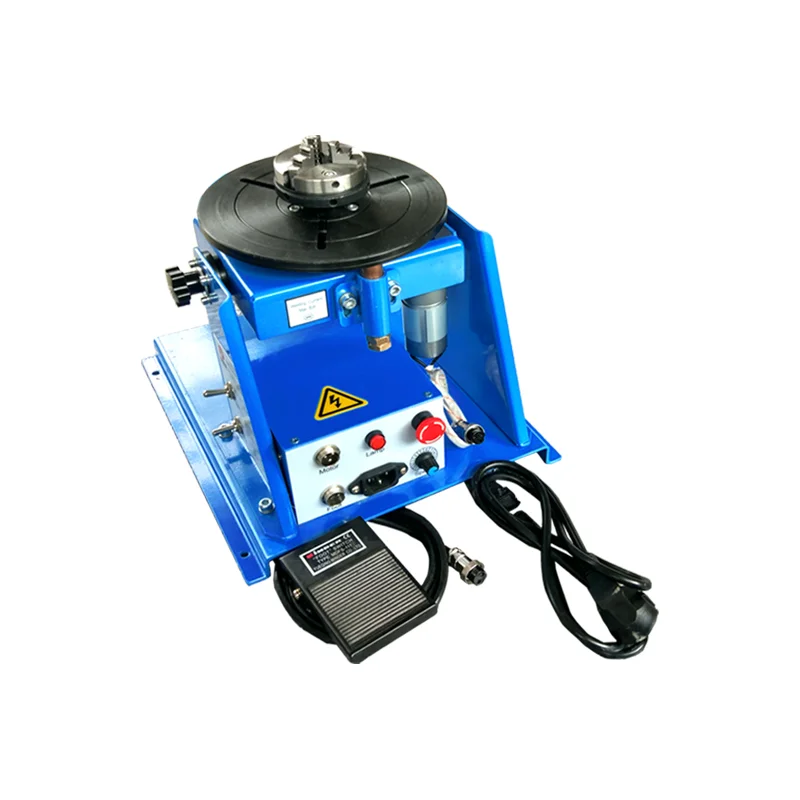

The MecBase BWJ-10 10kg Welding Positioner is a compact rotary welding table designed for positioning and rotating small workpieces during welding.
Featuring a Ø180 mm rotary table, variable-speed DC drive and 0–90° tilting adjustment, the BWJ-10 allows operators to position the weld joint at a more convenient angle while maintaining controlled workpiece rotation.
The compact design makes it suitable for small pipes, flanges, fittings and fabricated components, as well as TIG, MIG/MAG and other welding applications requiring controlled rotation.
LOAD CAPACITY: UP TO 10 KG*
TABLE: Ø180 × 9 MM
ROTATION SPEED: 2–20 RPM
TILT RANGE: 0–90°
POWER SUPPLY: AC 110/220 V, 50/60 HZ

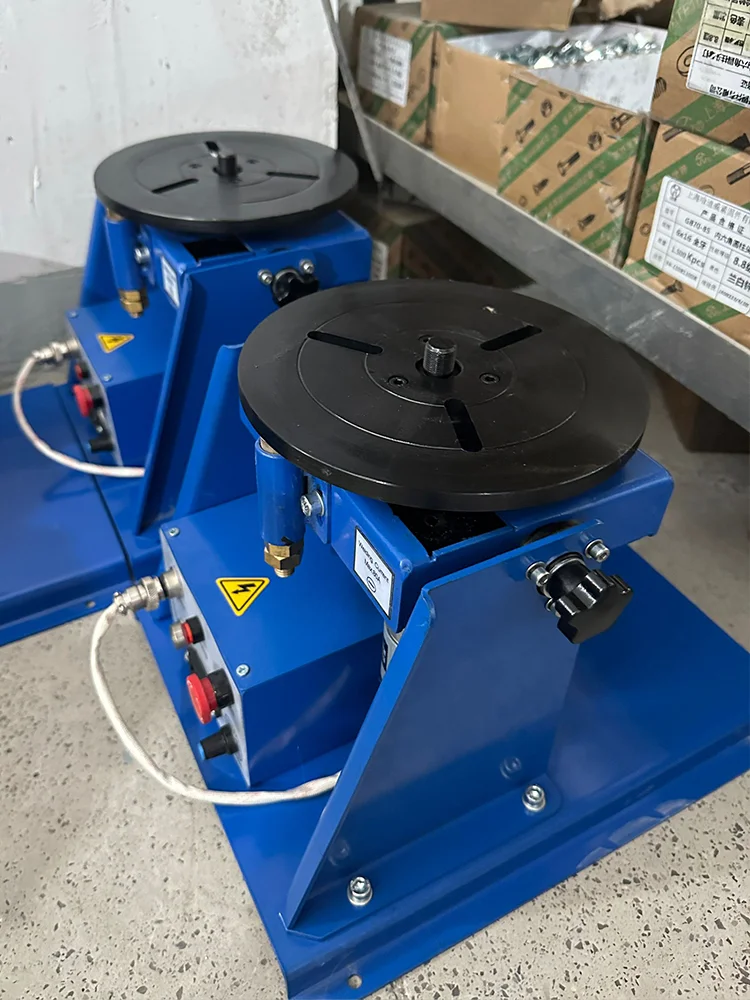

Compact Welding Positioner for Small Workpieces
The BWJ-10 combines rotation, tilting and workpiece holding in a compact welding workstation.
Instead of manually repositioning a small pipe or flange throughout the welding process, the operator can mount the workpiece on the rotary table, adjust the required tilt angle and set an appropriate rotation speed.
The table is driven by a 20 W DC speed-regulating motor, providing controlled rotation for small-part welding. The original configuration also includes a foot switch, control box, conductive carbon brush and emergency-stop function.
Key Features
10kg Compact Load Capacity
- Designed for small welding components where a full-size industrial positioner is unnecessary.
- Its compact footprint makes the BWJ-10 suitable for workbenches, welding shops, training facilities and small-component production.
Ø180 mm Precision Rotary Table
- The positioner features a: Ø180 mm diameter × 9 mm thick worktable
- The 9 mm steel table provides a stable mounting surface while keeping the complete positioner compact and portable.
Variable-Speed Rotation
- The DC drive provides adjustable table rotation for different workpiece diameters and welding speeds.
- Standard listed range: 2–20 rpm
- The source product page also lists 1–10 rpm as another available speed configuration, so I recommend presenting this on MecBase as an optional speed range rather than mixing both values into one specification.
0–90° Tilting Worktable
- The worktable can be tilted from: 0° to 90°
- This allows the operator to change the orientation of the workpiece and place the weld joint in a more suitable welding position.
- The original machine uses a self-locking tilting mechanism to hold the selected table angle.
Forward & Reverse Rotation
- The BWJ-10 provides reversible rotation, allowing the operator to select the direction of workpiece movement according to the welding operation.
- This is particularly useful when setting up circumferential welds and adapting the machine to different welding directions.
Foot Pedal Control
- A foot switch allows the operator to control the positioner while keeping both hands available for welding and torch handling.
- The machine can therefore be operated using the control panel or foot control depending on the welding setup.
Dedicated Welding Grounding
- The positioner uses a conductive copper/carbon-brush arrangement to provide electrical continuity during welding.
- The source specification lists:
- Grounding Conductivity: 80 A, 100% duty cycle
- This helps provide a dedicated current path rather than relying on bearings or rotating mechanical components to carry welding current.
Technical Specifications
| Parameter | BWJ-10 |
| Model | BWJ-10 |
| Rated Load – Horizontal Table | 10 kg |
| Rated Load – Vertical Table | 5 kg |
| Rotation Speed | 2–20 rpm |
| Alternative Speed Configuration | 1–10 rpm |
| Tilting Range | 0–90° |
| Worktable Diameter | Ø180 mm |
| Worktable Thickness | 9 mm |
| Motor | DC Speed-Regulating Motor |
| Motor Power | 20 W |
| Input Voltage | AC 110/220 V |
| Frequency | 50/60 Hz |
| Grounding Capacity | 80 A |
| Compatible Chuck Size | Ø65 / Ø80 mm |
| Overall Dimensions | 320 × 285 × 230 mm |
| Machine Weight | Approx. 12 kg |
Horizontal vs. Vertical Load Capacity
The allowable workpiece load changes according to the orientation of the rotary table.
Horizontal Table
Maximum rated load: 10 kg
When the table is horizontal, the workpiece load acts mainly toward the rotary table.
Vertical Table
Maximum rated load: 5 kg
When the table is tilted to the vertical position, the workpiece creates a greater bending moment on the table and drive assembly.
Therefore, positioner selection should consider not only:
Workpiece Weight
but also:
Workpiece Diameter + Center of Gravity + Fixture/Chuck Weight + Table Angle
Welding Chuck Options
Add a Chuck for Pipe & Flange Welding
The BWJ-10 can be equipped with a compact welding chuck for holding round workpieces.
The source configuration lists: Ø65 mm Chuck and Ø80 mm Chuck.
A chuck-equipped positioner is particularly useful for:
Small Pipes
Small Flanges
Round Fittings
Bushings
Cylindrical Components
Workpiece → Welding Chuck →Ø180 mm Rotary Table → BWJ-10 Welding Positioner
Optional Accessories
Configure the BWJ-10 for Your Welding Application
The source product supports several accessory configurations:

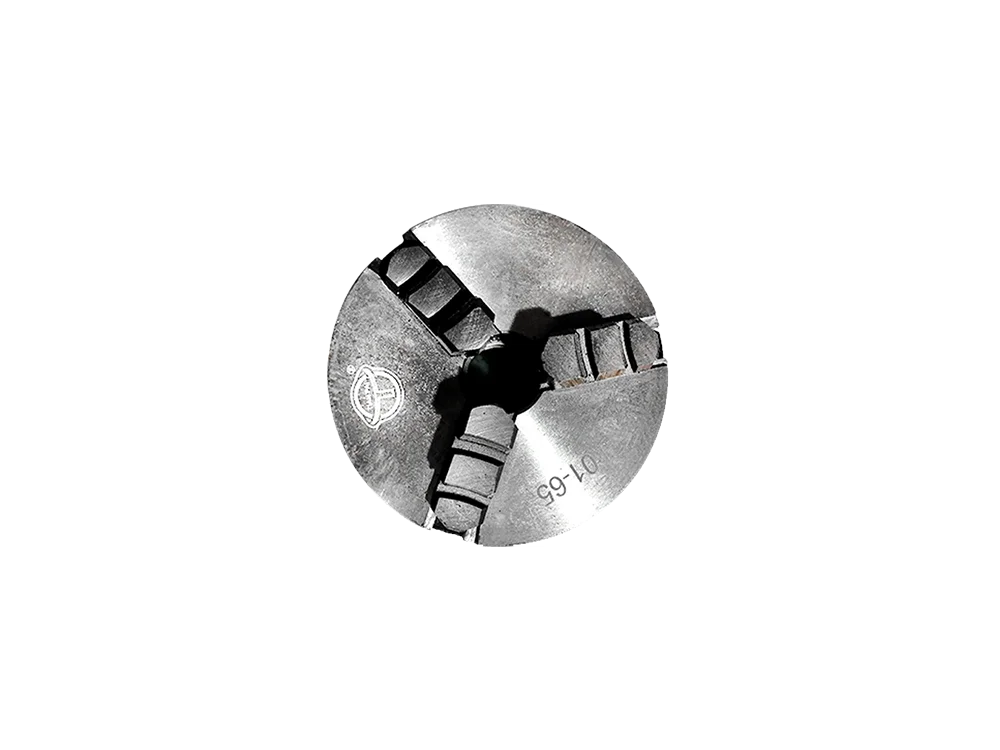

- Ø65 mm Welding Chuck
For clamping smaller round components. - Ø80 mm Welding Chuck

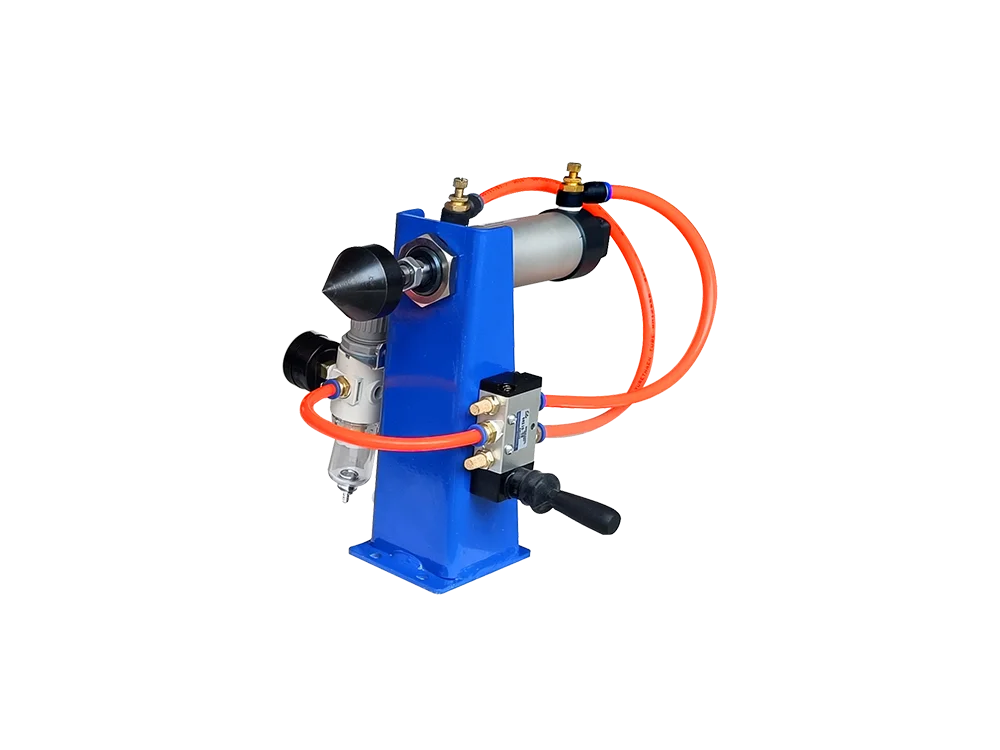

Provides an alternative clamping configuration for suitable workpieces. - Pneumatic Tailstock

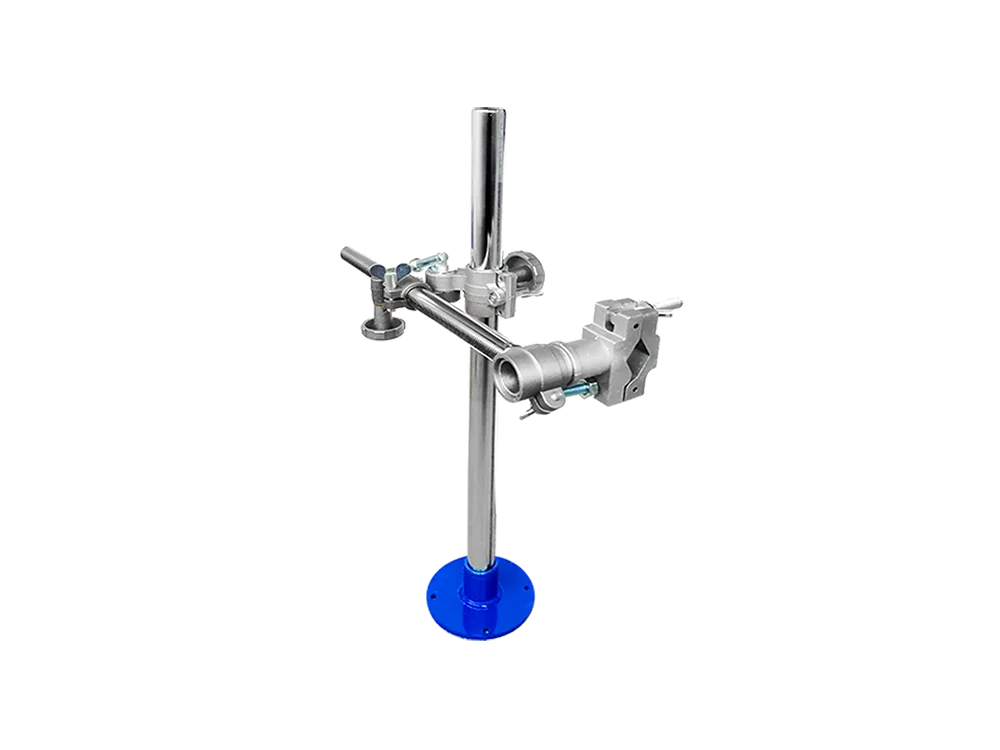

Provides additional support for suitable longer workpieces. - Welding Torch Holder
Allows the welding torch to be held in a controlled position while the workpiece rotates.
These accessories are listed by the source manufacturer as configurable equipment.
Product Details – Complete Functionality
The BWJ-10 combines a compact structure with practical controls for small-workpiece welding. The side-mounted control panel, DC drive system, manual tilt adjustment and reversible rotation provide the essential functions required for a compact welding positioner.

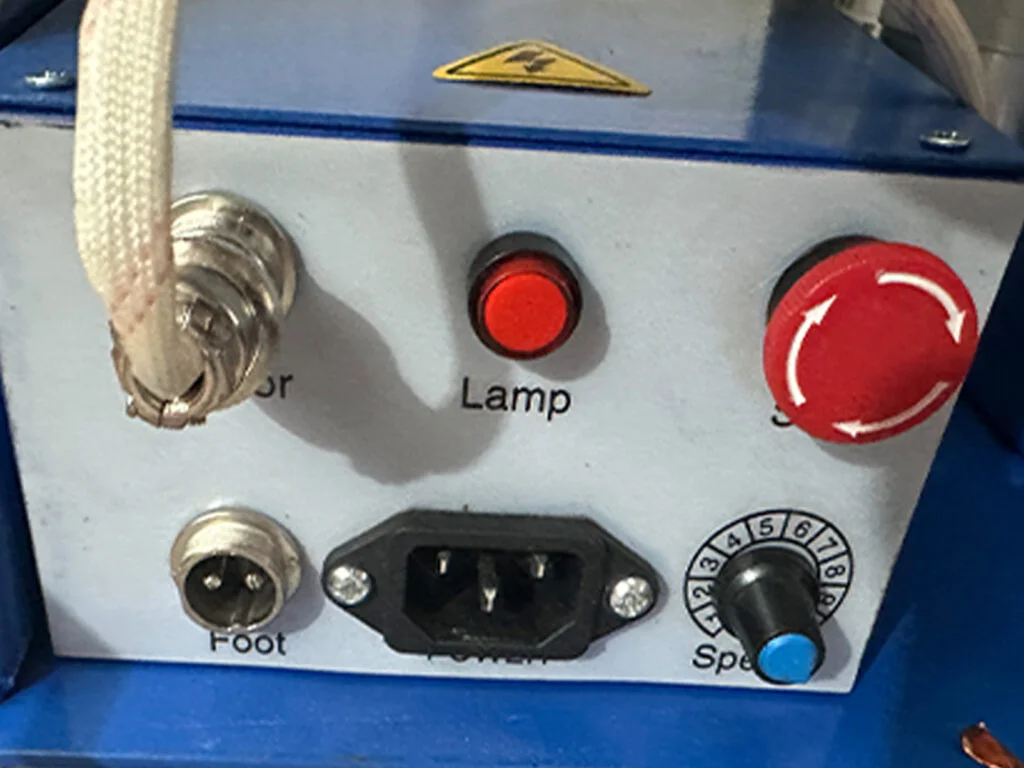

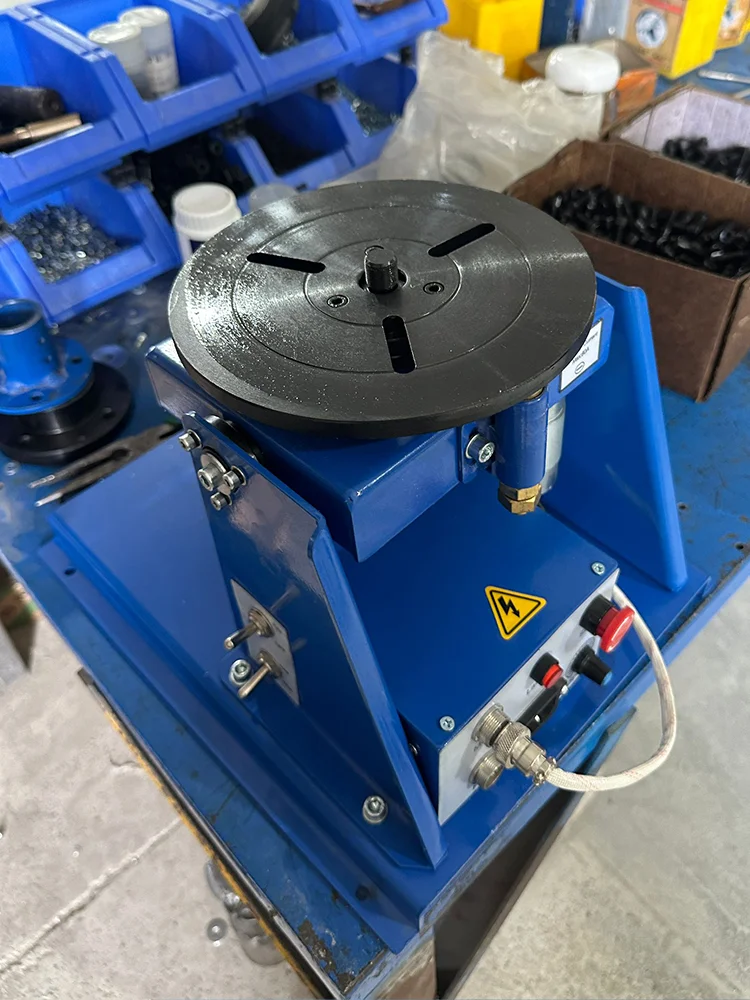

Fully Functional Side Control Panel
The side-mounted control panel keeps the main operating functions within easy reach.
Operators can conveniently control the positioner during setup and welding without requiring a separate control cabinet.
Key Benefits:
- Convenient side-mounted controls
- Easy speed adjustment
- Forward and reverse rotation
- Compact integrated design
- Suitable for benchtop welding applications

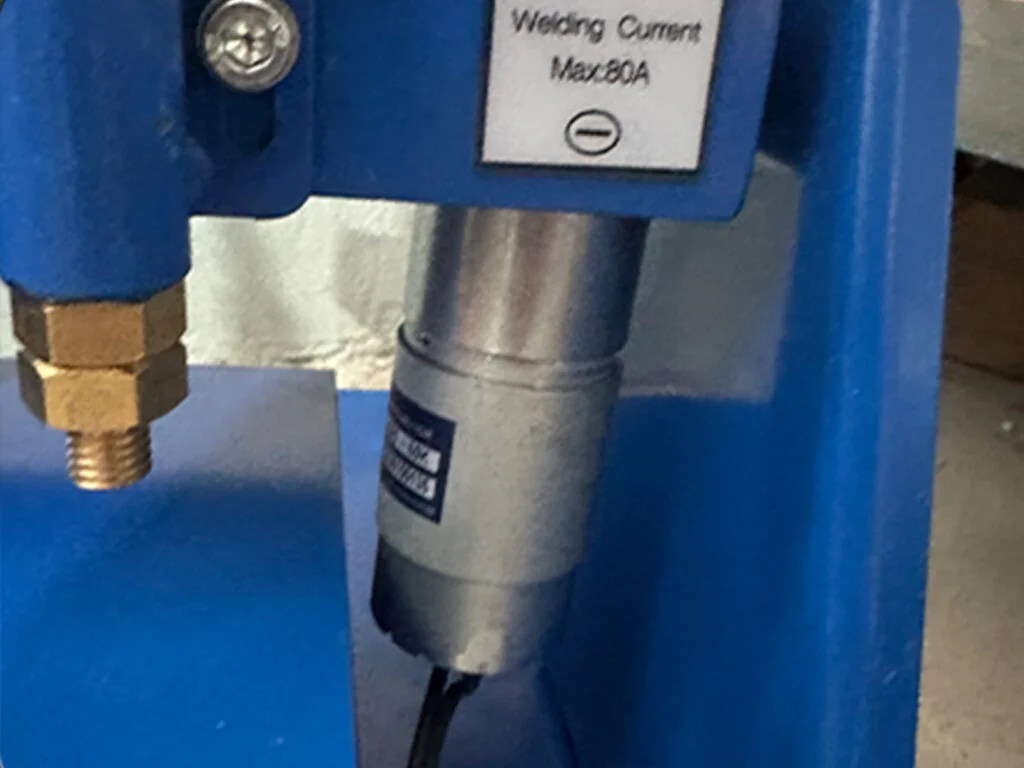

20W DC Motor
Compact Drive with Variable-Speed Control
The BWJ-10 is powered by a 20W DC speed-regulating motor, providing controlled rotary motion for small workpieces.
The DC drive allows the table speed to be adjusted according to the workpiece diameter and welding requirements.
Motor Type: DC Speed-Regulating Motor
Motor Power: 20W
Rotation: Forward / Reverse
Speed: Adjustable

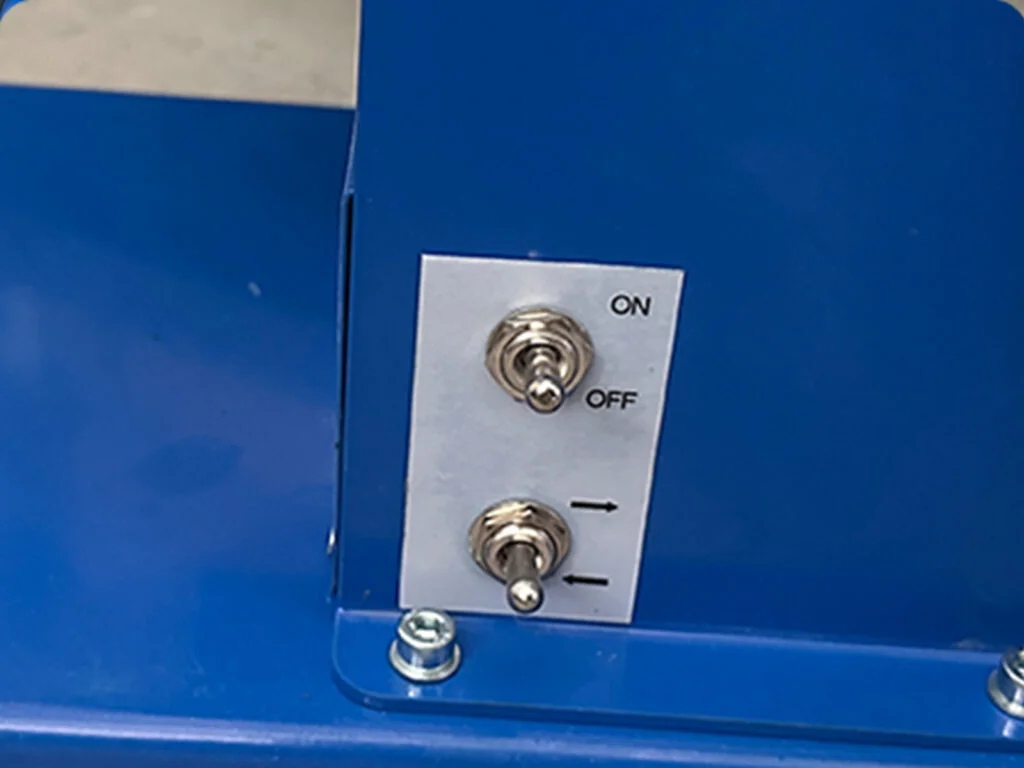

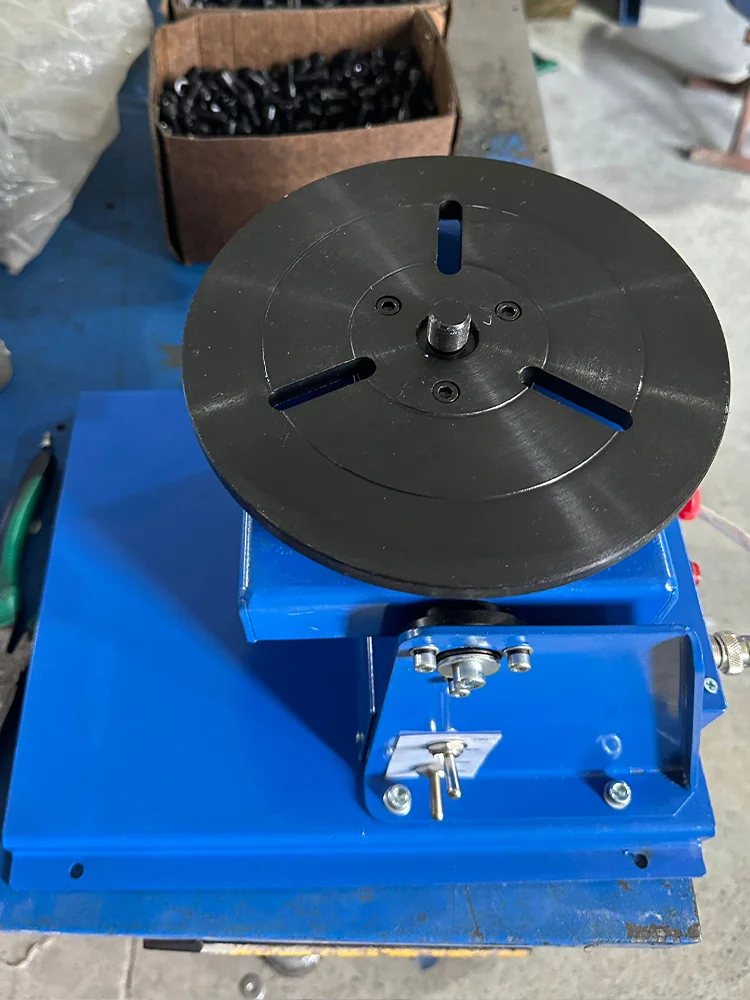

Forward & Reverse Switch
Reversible Rotation Control
The BWJ-10 supports both forward and reverse table rotation, allowing the operator to select the preferred direction according to the welding process and workpiece setup.
A dedicated reversing switch makes direction changes simple and convenient.
Forward Rotation
Reverse Rotation
Variable Speed Control
This provides greater flexibility for circumferential welding and small-part fabrication.

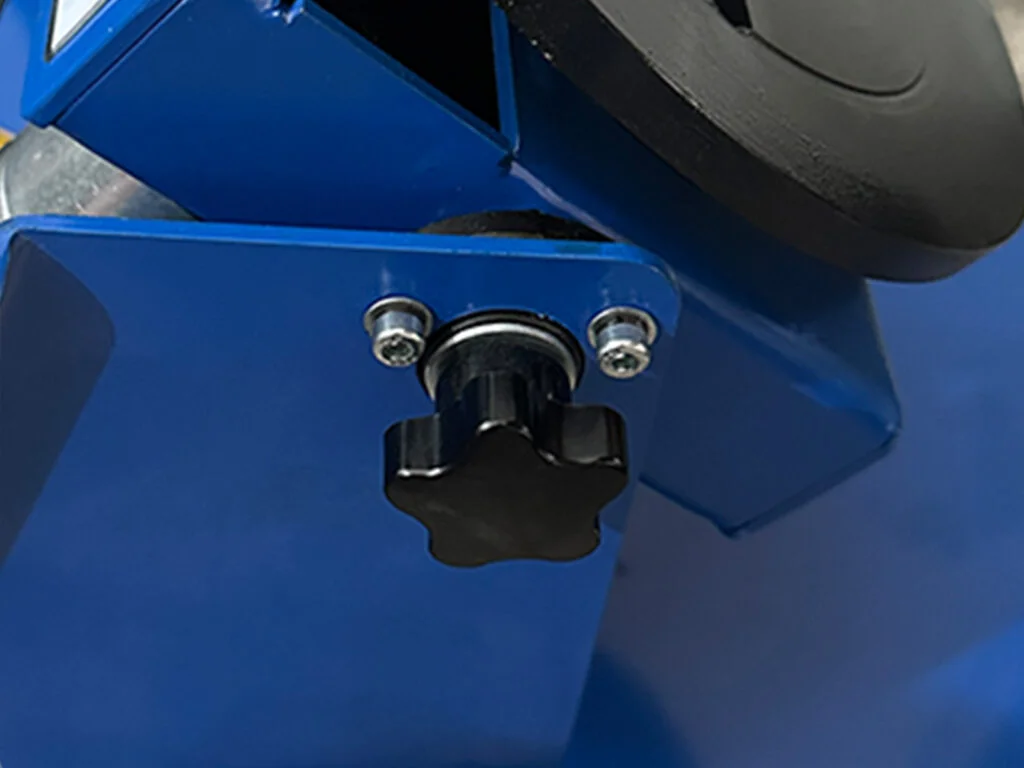

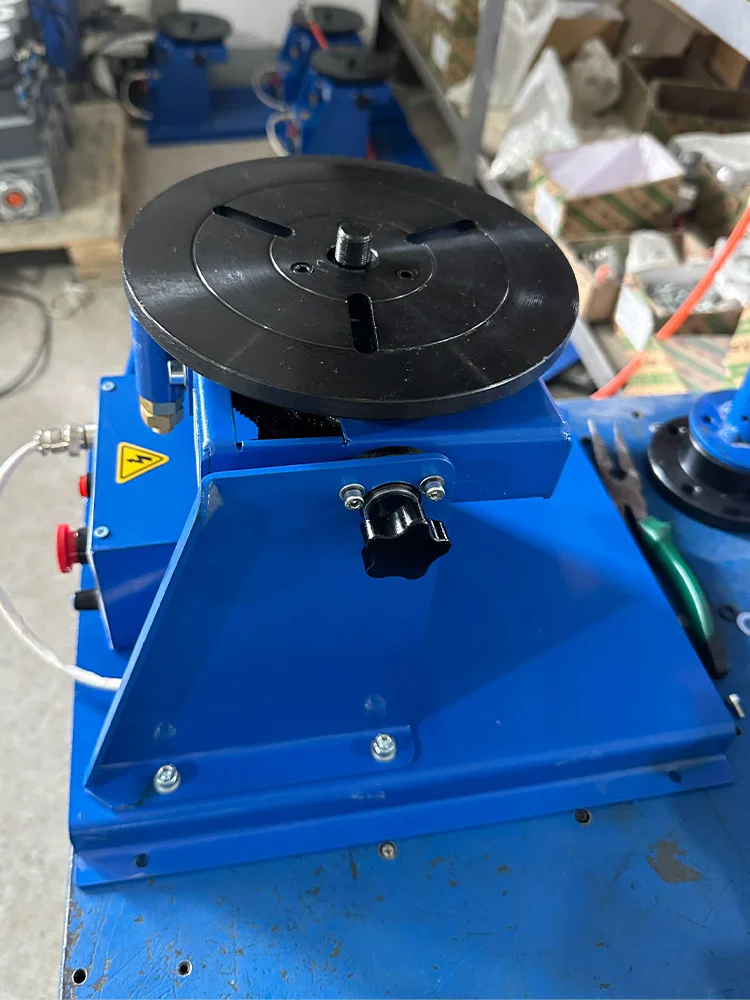

Manual Tilt Adjustment Knob
Quickly Adjust the Worktable Angle
The manual adjustment knob allows the operator to change the angle of the rotary table according to the required welding position.
The worktable can be tilted from 0° to 90°, allowing the workpiece to be positioned for easier access to the weld joint.
The locking mechanism helps secure the table at the selected angle during operation.
Tilt Range: 0–90°
Adjustment: Manual
Locking: Mechanical locking mechanism

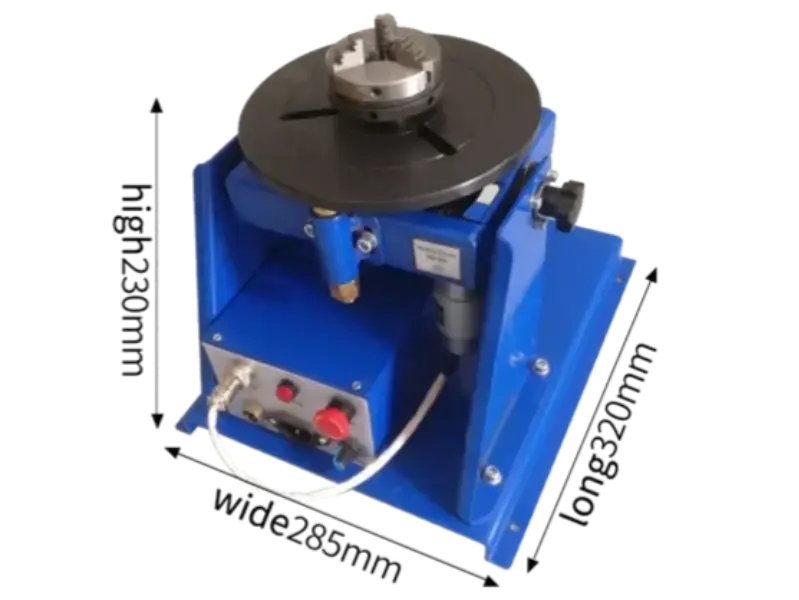

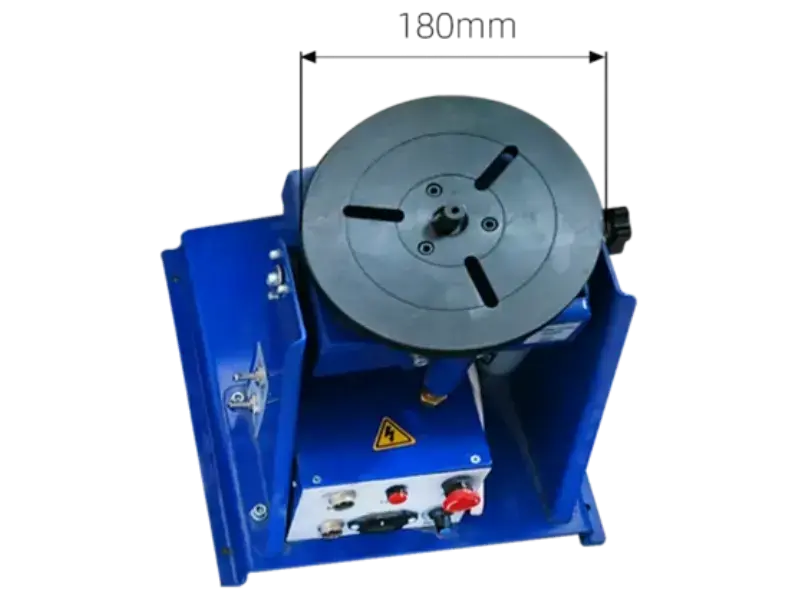

Compact & Portable Design
A Lightweight Welding Positioning Solution
With overall dimensions of approximately 320 × 285 × 230 mm and a machine weight of approximately 12 kg, the BWJ-10 is designed for compact workstations.
Its small footprint makes it easy to integrate into:
Welding Benches · Small Workshops · Training Stations · Production Cells · Portable Welding Setups
Despite its compact size, the positioner combines rotation, tilting and workpiece mounting in one unit.
Supported Welding Processes
Suitable for applications requiring gas-shielded arc welding.
Argon Arc Welding (TIG/GTAW)
CO₂ Shielded Welding
The system can be configured for CO₂-shielded welding according to production requirements.
Submerged Arc Welding
Submerged arc welding can also be configured for appropriate pipe and fabrication applications.
The source manufacturer states that the welding power source can be customized according to the required welding method.
Typical Applications
- Small Pipe Welding
Mount small-diameter pipe components in a compatible chuck for controlled circumferential rotation. - Flange Welding
Useful for small flange assemblies requiring consistent rotational movement. - Fitting Welding
Suitable for compact fittings and other rotationally symmetrical components within the positioner’s load limits. - TIG Welding
Controlled low-speed rotation can help maintain consistent torch-to-workpiece positioning during circumferential welding. - MIG/MAG Welding
Can be integrated into small semi-automatic welding setups. - Welding Training & Small Workshops
Its compact size makes the BWJ-10 suitable where workspace is limited and heavy-duty positioning equipment is unnecessary.

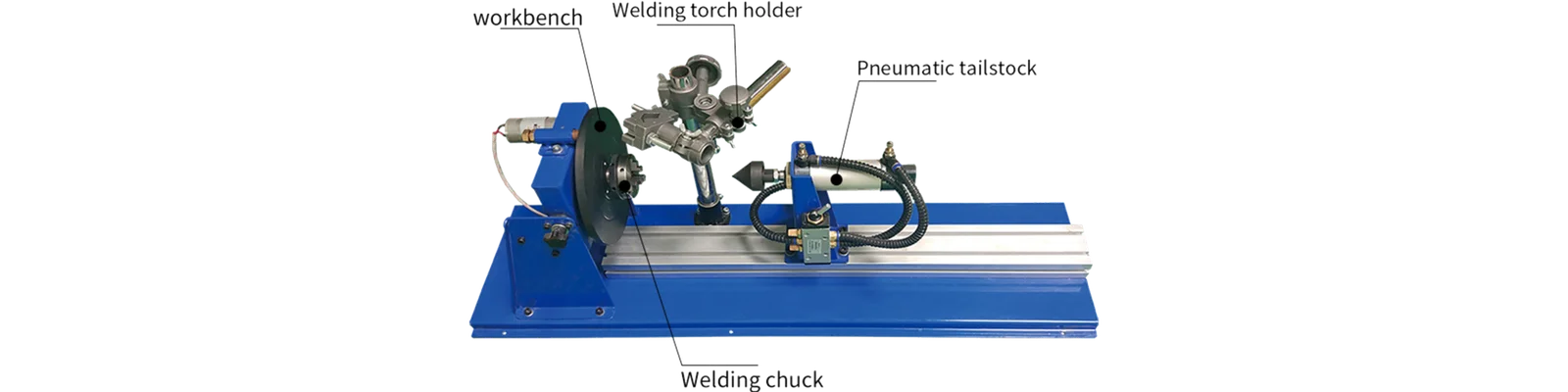

Build a Compact Welding Workstation
BWJ-10 Welding Positioner＋Welding Chuck＋Torch Holder＋Foot Pedal＝Compact Rotary Welding Workstation
The BWJ-10 can be configured as more than a simple rotary table. By combining the positioner with a chuck, torch holder and suitable welding equipment, it can form a compact workstation for repetitive circumferential welding of small components.
Why Use a 10kg Welding Positioner?
For small components, manually rotating and repositioning the workpiece can make it difficult to maintain a consistent welding angle and travel speed.
A compact welding positioner allows the operator to:
- Reduce Manual Repositioning
Keep the workpiece moving instead of repeatedly stopping to reposition it. - Maintain Controlled Rotation
Set a suitable rotation speed for the workpiece and welding process. - Improve Welding Access
Tilt the table to bring the joint into a more convenient position. - Keep Both Hands Available
Use the foot pedal to control rotation during welding. - Save Workshop Space
The BWJ-10 measures only approximately 320 × 285 × 230 mm.
10kg Welding Positioner vs. Larger Positioners
| Feature | BWJ-10 | Larger Welding Positioner |
| Typical Workpiece | Small components | Medium / heavy components |
| Horizontal Load | 10 kg | Higher |
| Table Diameter | Ø180 mm | Larger |
| Portability | Excellent | Lower |
| Bench Installation | Ideal | Model dependent |
| Chuck | Ø65 / Ø80 mm | Larger chuck options |
| Pipe/Flange Welding | Small sizes | Medium/large sizes |
| Workshop Space | Very Compact | Larger footprint |
Request a Quote
Need a Compact Welding Positioner?
Send us your workpiece information and we can help determine whether the BWJ-10 is suitable for your application.
Please provide:
Workpiece diameter and length
Workpiece weight
Required rotation speed
Required table angle
Chuck required: Yes / No
Required clamping diameter
Welding process
Power supply
Quantity
Frequently Asked Questions
A 10kg welding positioner is a compact rotary worktable designed to hold, rotate and tilt relatively small workpieces during welding.
The listed rated capacity is 10 kg with the table horizontal and 5 kg with the table vertical.
Yes. The BWJ-10 provides a 0–90° tilting range with a self-locking adjustment mechanism.
The standard specification lists 2–20 rpm, while a 1–10 rpm configuration is also shown on the source page.
Yes. The source configuration lists Ø65 mm and Ø80 mm chucks for the BWJ-10.
Yes. A foot pedal is included/listed as part of the control arrangement, allowing hands-free start/stop operation during welding.
The source page identifies the positioner for MIG, TIG and arc/stick welding applications. Actual suitability should also be matched to the workpiece, welding current and complete welding setup.
