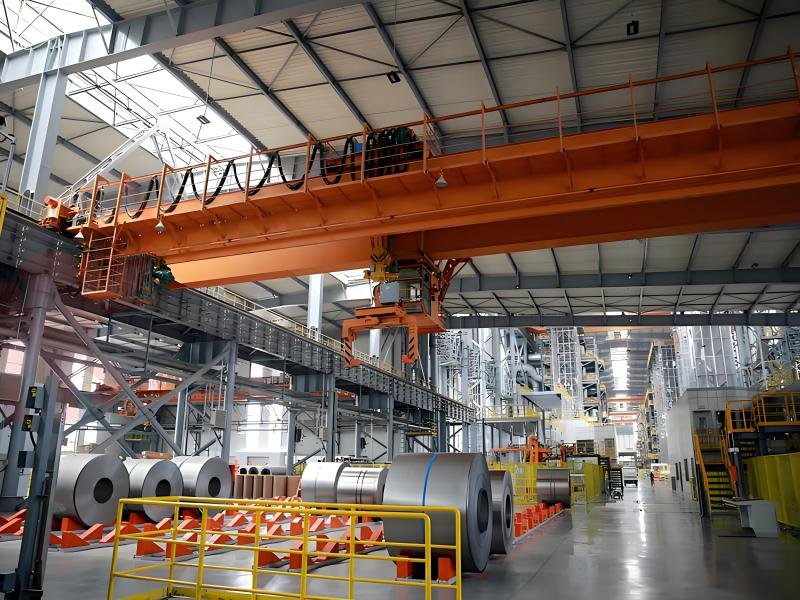

Understanding the Duty Class / Service Class of lifting equipment (Cranes and Hoists) is a critical step in engineering design, equipment selection, and operational safety. The duty class essentially evaluates the working intensity, operating frequency, and load conditions of the equipment throughout its design life. It directly determines the design standard, structural strength, and expected service life of the equipment.
Below is a systematic explanation covering purpose, significance, and conclusions derived from different classification standards.
Major Classification Systems Used Worldwide
Several major standards are commonly used globally for classifying crane and hoist duty.
CMAA (American Crane Standard)
CMAA classifies cranes into six service classes (A–F).
| CMAA Class | Operating Intensity |
| A | Standby / infrequent service |
| B | Light service |
| C | Moderate service |
| D | Heavy service |
| E | Severe service |
| F | Continuous severe service |
Characteristics:
- Primarily used for overhead and gantry cranes
- Widely applied in North American engineering projects
HMI (Hoist Manufacturers Institute Standard)
HMI classifies electric hoists into H1–H6 duty classes.
| HMI Class | Operating Intensity |
| H1 | Infrequent |
| H2 | Light |
| H3 | Moderate |
| H4 | Heavy |
| H5 | Severe |
| H6 | Continuous severe |
Characteristics:
- Specifically designed for hoists
- Focuses on hoisting mechanism life
FEM / ISO Standards (European and International)
FEM and ISO classify cranes into A1–A8 duty groups.
| EM / ISO Class | Operating Intensity |
| A1–A2 | Very light |
| A3–A4 | Medium |
| A5–A6 | Heavy |
| A7–A8 | Severe / continuous heavy |
Characteristics:
- Based on load spectrum and number of operating cycles
- Widely used in Europe and international projects
ASME Standards
ASME standards mainly define safety requirements, for example:
- ASME B30.2 – Overhead cranes
- ASME B30.16 – Hoists
Characteristics:
- Focus on design, safety, inspection, and operation
- Do not directly define duty classes
- In practice, they are usually used together with CMAA or HMI classifications
Why It Is Necessary to Determine Crane & Hoist Duty Class
In lifting equipment engineering, the duty class is a key design parameter with several important roles.
1. Determines Structural Design of the Equipment
Different duty classes require different structural strengths, including:
- Main girder dimensions
- Steel plate thickness
- Welding quality requirements
- Fatigue design considerations
For example:
| Duty Level | Structural Characteristics |
| Light Duty | Relatively lightweight structure |
| Medium Duty | Standard industrial structure |
| Heavy Duty | Reinforced structure |
| Severe Duty | High-strength structure with larger safety factors |
If the duty class is underestimated, it may lead to structural fatigue or premature failure.
2. Determines the Configuration of Key Components
The duty class directly influences the selection of major components such as:
- Motor power
- Gearbox rating
- Braking system
- Wire rope life
- Bearing specifications
For example:
| Duty Class | Typical Equipment Configuration |
| Light Duty | Standard industrial motors |
| Heavy Duty | Long-life industrial drive systems |
| Severe Duty | Heavy-duty metallurgical-grade components |
3. Determines Equipment Service Life
Lifting equipment is typically designed according to load cycles over its service life.
For example:
| Duty Class | Typical Design Cycles |
| Light | 10⁴ cycles |
| Medium | 10⁵ cycles |
| Heavy | 10⁶ cycles |
If the real operating conditions exceed the designed duty level, the equipment may fail prematurely.
4. Influences Equipment Cost
Higher duty classes require:
- More materials
- Stronger structural designs
- More durable drive systems
For example, for the same 10-ton overhead crane:
| Duty Class | Cost Difference |
| A3 | Base price |
| A5 | +20–40% |
| A7 | +50–80% |
Therefore, determining the correct duty class helps avoid both under-design and over-design.
5. Improves Operational Safety
A properly defined duty class helps prevent:
- Structural fatigue failure
- Brake system malfunction
- Mechanical overload
Therefore, duty class is considered a fundamental parameter for safe crane design in international standards.
Unified Conclusion Across Different Standards
Although the terminology differs among standards, the core evaluation principles are essentially the same.
Crane duty class is determined mainly by three factors:
1. Operating Frequency
How often the equipment is used.
2. Load Ratio
Whether loads are frequently close to the rated capacity.
3. Working Cycles
The total number of lifting operations during the equipment’s lifetime.
Therefore, the different classification systems can be approximately aligned as follows:
| Operating Intensity | FEM / ISO | CMAA | HMI |
| Very Light | A1–A2 | A | H1 |
| Light | A3 | B | H2 |
| Medium | A4 | C | H3 |
| Heavy | A5–A6 | D | H4 |
| Severe | A7 | E | H5 |
| Continuous | A8 | F | H6 |
Engineering Significance in Equipment Selection
By determining the duty class, engineers can:
- Design the crane structure correctly
- Select suitable drive and mechanical components
- Predict equipment service life
- Optimize equipment cost
- Ensure safe and reliable operation
In other words:
Duty Class serves as the critical link between actual operating conditions and equipment design.
