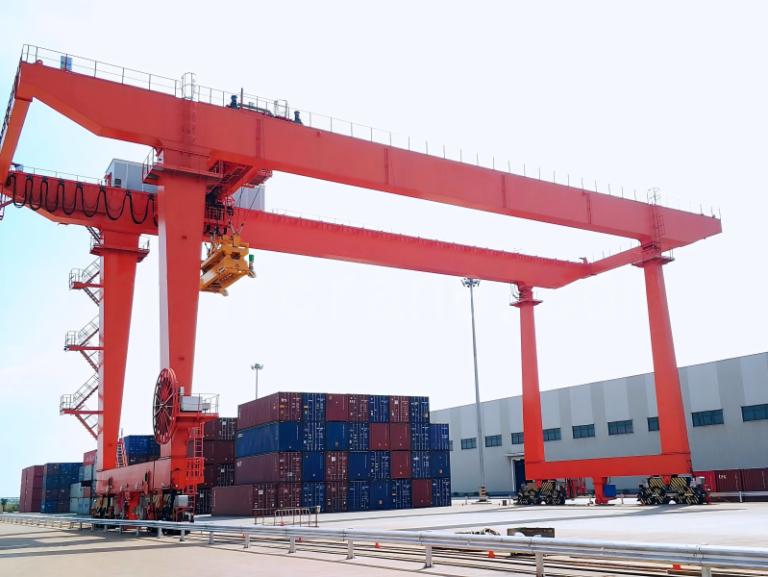

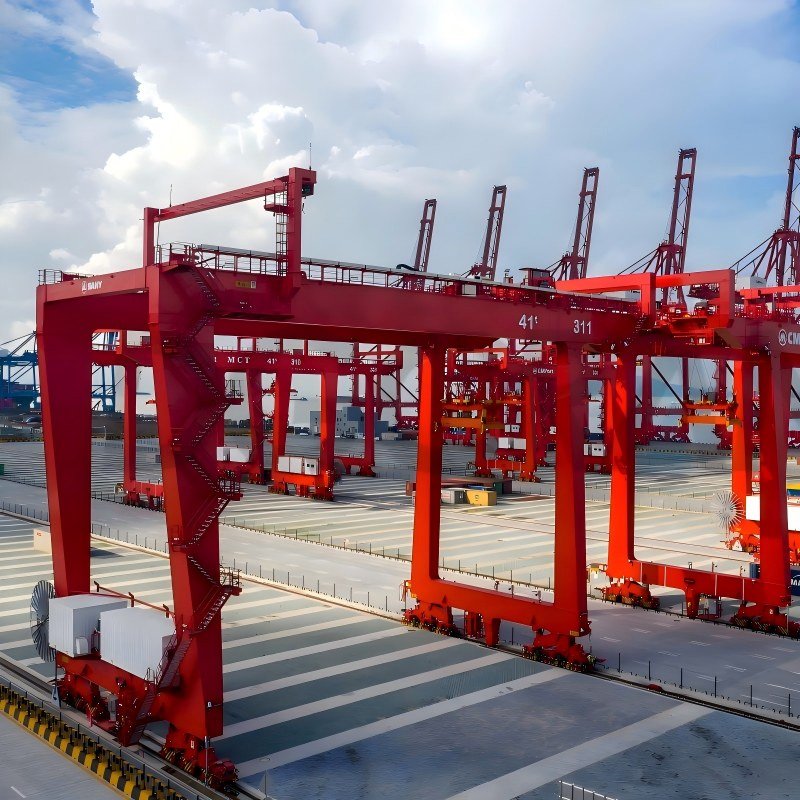

Rail mounted container gantry crane (abbreviated as RMG, also known as container rail mounted gantry crane or rail mounted gantry container cranes) is a heavy-duty container handling crane that travels on fixed rail tracks within container yards, railway terminals, intermodal facilities, logistics centers, and coastal freight yards.
It is designed for efficient, high-precision container handling at:
- Deep-sea terminals
- Near-shore terminals
- Inland terminals
- Railway hubs
- Intermodal logistics facilities

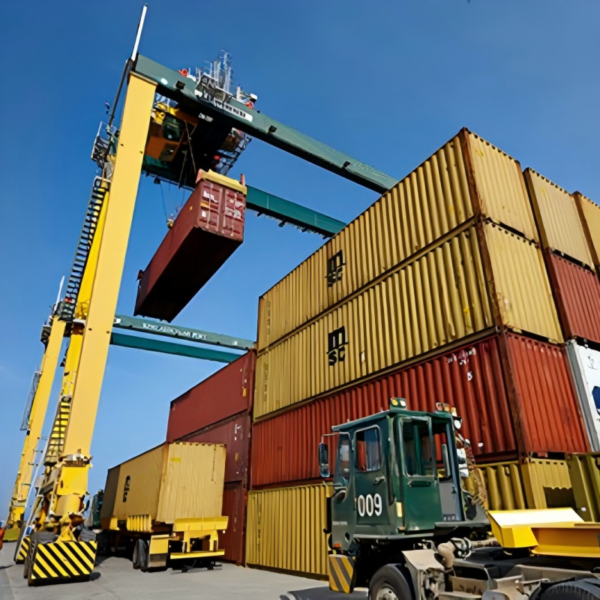

Unlike rubber-tyred gantry cranes (RTG), RMG is fully powered by grid electricity and operates on steel wheels running on steel rails, offering:
- Zero emissions
- Low operating costs
- High automation potential
- Long service life
MecBase RMG Solutions
At MecBase, we are a leading rail mounted container gantry crane manufacturer in China, providing turnkey solutions for:
- Ports
- Railway terminals
- Intermodal hubs
- Logistics centers
- Coastal freight yards
Our RMG factory provides:
- OEM manufacturing
- Customized engineering
- Wholesale supply
- Automated ARMG systems
- Heavy-duty industrial RMG cranes
- Railway-specific RMG solutions
Key Advantages of RMG
Superior Energy Efficiency
RMG operates entirely on grid electricity with regenerative energy feedback technology.
Benefits include:
- Up to 80% lower net energy consumption
- No diesel fuel consumption
- Lower electricity costs
- Reduced carbon footprint
Higher Automation Potential
RMG’s fixed rail structure makes it ideal for:
- Manual operation
- Semi-automatic operation
- Fully automatic ARMG systems
- Remote operator stations
Automation technologies include:
- AI-assisted container recognition
- 3D stack profiling
- Laser tracking systems
- 5G + Beidou positioning
Zero Emissions & Low Noise
Compared with diesel-powered RTGs, RMG provides:
- Zero on-site emissions
- Much lower noise levels
- Better environmental performance
- Improved working conditions
High Stacking Density
RMG can support:
- 6–8 container rows
- Truck lanes
- Railway tracks
- AGV lanes
Typical stacking configurations:
- 1-over-3
- 1-over-4
- 1-over-5
- 1-over-6
Long Service Life & Low Maintenance
Advantages include:
- 20–25 year design life
- Steel wheel on steel rail system
- No tire wear
- Minimal maintenance
- Over 98% uptime
Technical Specifications
| Parameter | Specification |
| Lifting Capacity | 30–65 tons |
| Rail Span | 15–55m |
| Cantilever Outreach | Up to 18m |
| Lifting Height | 12.5–21.5m+ |
| Hoisting Speed | 12–52 m/min |
| Trolley Speed | 50–180 m/min |
| Gantry Speed | 45–135 m/min |
| Duty Class | A6–A8 |
| Service Life | 20–25 years |
Main Structural Components
Main Girder System
Heavy-duty double-box beam steel structure with high torsional rigidity.
Leg Structure
Heavy-duty portal legs supported by multiple steel wheels on fixed rails.
Hoisting Mechanism
Dual-reel design with:
- Double braking systems
- AC variable frequency drives
Trolley Travel Mechanism
Rack-and-pinion or wire rope traction system.
Travel speed:
- 60–180 m/min
Optional Trolley Slewing Platform
Supports:
- ±220° rotation
- Continuous rotation
Gantry Travel Mechanism
Controls longitudinal movement along rail tracks.
Container Spreader
Supports:
- 20ft containers
- 40ft containers
- 45ft containers
- Optional twin-lift spreaders
Power Supply System
Power supply options:
- Cable reel
- Drag chain
- Electric busbar
Includes AFE regenerative drive technology.
Operator Cabin & Control System
Features:
- CCTV systems
- Wind speed alarms
- Load moment indicators
- Remote operation support
Advanced Features & Technologies
Automation & Remote Operation (ARMG)
ARMG systems include:
- Laser spreader tracking
- AI-assisted recognition
- 3D stack profiling
- Intelligent trajectory control
- Automatic positioning
- 24/7 unmanned operation
Positioning accuracy:
- ≤ ±5mm
Energy-Efficient Drive Systems
Features include:
- Full digital AC variable frequency drives
- Active Front End (AFE) technology
- Regenerative braking systems
- Energy feedback to the grid
Advanced Anti-Sway Technology
Available systems include:
- Bidirectional flexible resistance anti-sway
- Electronic anti-sway systems
- Frequency-conversion anti-sway systems
Cycle times can be reduced by up to 30%.
Smart Positioning & Precision Landing
Technologies include:
- Automatic box-to-box landing
- Truck trailer positioning
- Intelligent safety protection
- Automatic twistlock engagement
CMS Intelligent Service Management
Provides:
- Real-time monitoring
- Predictive diagnostics
- Automatic fault detection
- Remote firmware updates
Comprehensive Safety Systems
Includes:
- Load moment limiter
- Wind speed alarms
- Anti-collision radar
- Emergency stop systems
- Rail clamps
- Wheel brakes
- Automatic skew control
- Truck Lift Prevention (TLP)

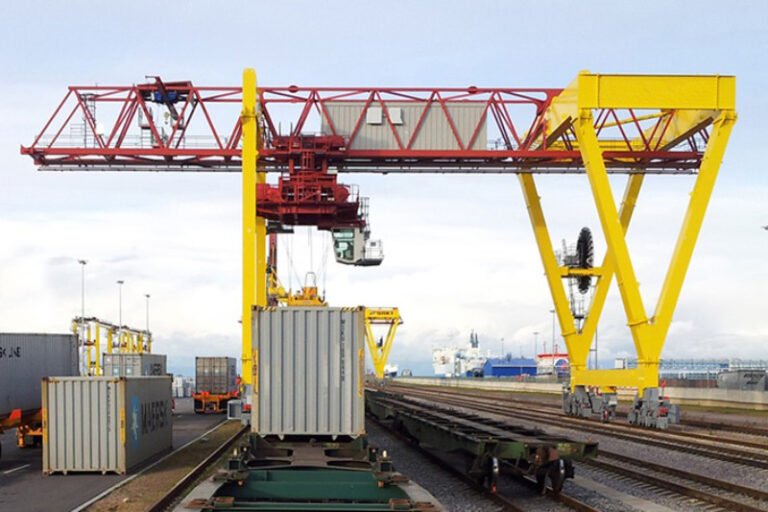

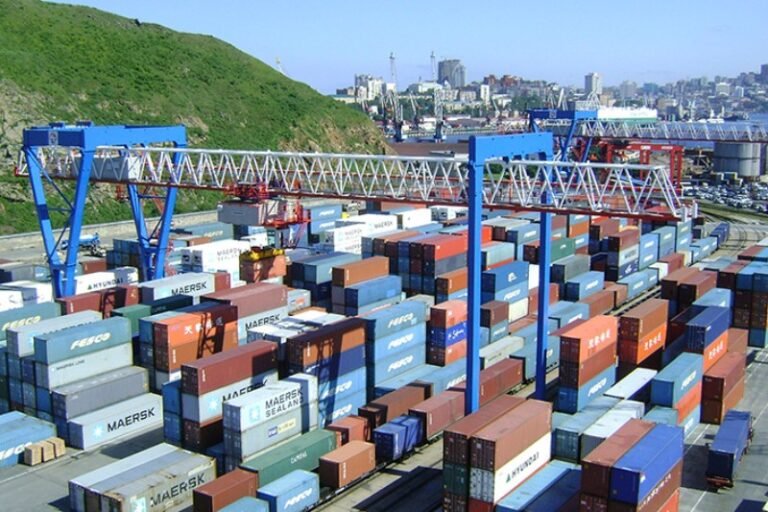

Applications
RMG cranes are widely used in:
- Deep-sea ports
- Railway container terminals
- Intermodal logistics hubs
- Dry ports
- Inland depots
- Coastal freight yards
- Heavy industrial applications
- Port expansion projects
Why Choose Our Rail Mounted Container Gantry Crane?
- Fully electric zero-emission operation
- Regenerative energy feedback
- Advanced ARMG automation
- Precision anti-sway technology
- Long service life
- Lower total cost of ownership
- Multi-modal integration capability
- Comprehensive safety systems
- CMS intelligent service management
- Marine-grade corrosion protection
- Global service support
- Fully customized engineering
Get A Quote Today
Looking for a reliable rail mounted container gantry crane manufacturer for your:
- Port terminal
- Railway hub
- Intermodal facility
- Industrial project
We provide:
- Customized RMG solutions
- Automated ARMG systems
- Fast delivery
- Professional installation
- Global after-sales support
- Genuine spare parts
FAQs About RMG Cranes
An RMG is a rail-mounted container handling crane powered entirely by electricity and operating on fixed steel rails.
RMG operates on fixed rails with lower operating costs and higher automation potential, while RTG offers greater mobility.
Yes. ARMG systems support:
- Semi-automatic operation
- Fully automatic operation
- Remote operation
RMG uses:
- Cable reels
- Drag chains
- Electric busbars
- Wind alarms
- Anti-collision radar
- Automatic skew correction
- Truck Lift Prevention
- Emergency stop systems
