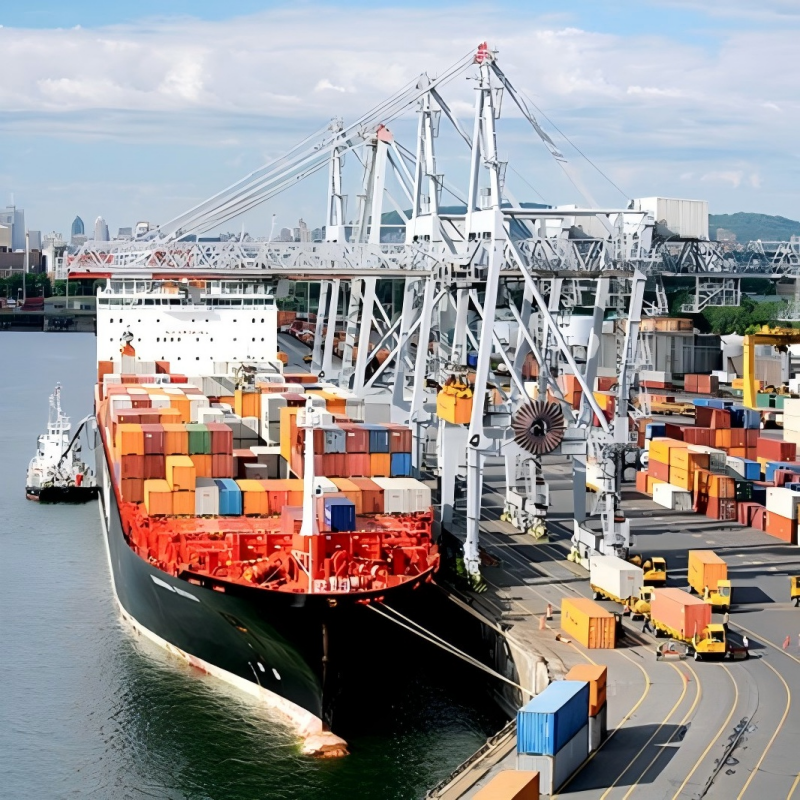

Ship To Shore (STS) Container Crane Manufacturer in China

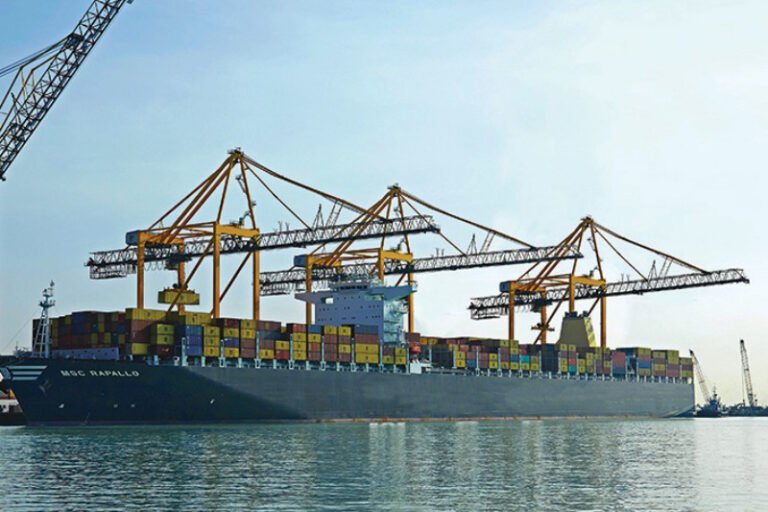

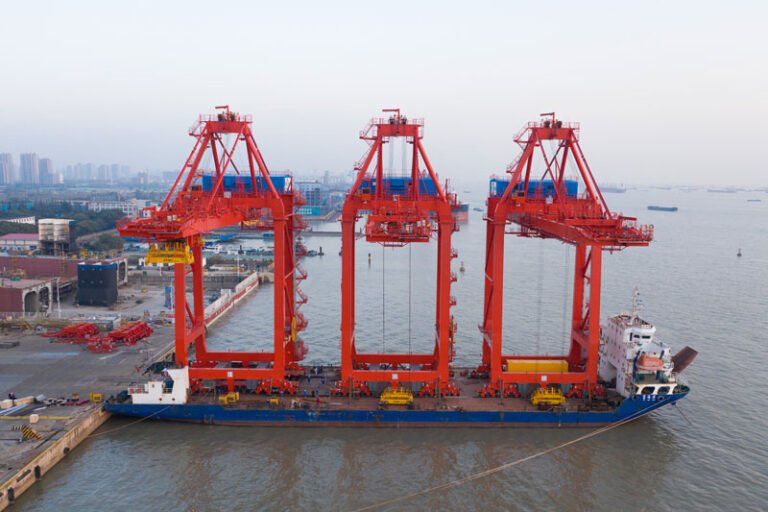

A Ship To Shore (STS) Container Crane is a large rail-mounted gantry crane designed for loading and unloading containers between vessels and quays at container terminals. As the core equipment of modern ports, STS cranes are widely used in mega container terminals, deep-water seaports, transshipment hubs, and automated port projects.
Our China-based STS crane factory provides high-performance ship-to-shore crane solutions with advanced automation, heavy-duty design, and competitive pricing for global customers.
What Is A Ship To Shore (STS) Container Crane?
A ship-to-shore crane (STS crane) is specially designed for efficient waterfront container handling. It operates on rails along the quay and can handle:
- 20ft containers
- 40ft containers
- 45ft containers
- Twin-lift operations
- Tandem-lift operations
Compared with conventional harbour cranes, STS container cranes offer:
- Higher lifting speed
- Larger outreach
- Better automation
- Higher efficiency
- Lower operating cost
China Ship To Shore Crane Manufacturer
As a professional ship to shore crane manufacturer in China, we provide turnkey solutions for:
Applications
- Mega container terminals
- Deep-water seaports
- Automated container terminals
- Greenfield port projects
- Feeder ports
- Transshipment hubs
- Rail-water intermodal terminals
Our Services
- OEM manufacturing
- Custom engineering
- Global shipping
- Installation & commissioning
- Training & maintenance
- After-sales support
- Spare parts supply
Key Advantages of STS Container Cranes
- Outreach up to 72 m and lifting height up to 52 m for handling neo-panamax and ultra-large container vessels.
- High-speed operation with hoisting speed up to 180 m/min and productivity of 35–45 moves per hour.
- Multiple lifting configurations available, including single, twin, tandem, and quad lift options.
- Intelligent automation system with anti-sway, automatic positioning, remote control, and collision avoidance technology.
- Marine-grade design with high-strength steel structure, epoxy coating, and typhoon-resistant performance for 24/7 operation.
- Energy-efficient regenerative drive system reduces power consumption by 20–30% and lowers operating costs.
STS Crane Technical Specifications
| Parameter | Specification |
| Lifting Capacity | 35–120 tons |
| Twin Lift Capacity | Up to 65 tons |
| Outreach | 35–72 m |
| Back Reach | 10–25 m |
| Rail Gauge | 16–35 m |
| Lifting Height Above Rail | 18–52 m |
| Lifting Height Below Rail | 2–5 m |
| Hoisting Speed | 60–90 m/min |
| Empty Hoisting Speed | 120–180 m/min |
| Trolley Travel Speed | 180–240 m/min |
| Gantry Travel Speed | 30–60 m/min |
| Duty Class | A8–A10 |
| Power Supply | 10kV–35kV |
| Standards | FEM, DIN, IEC, ISO, AWS |
Main Structural Components of STS Crane Gantry Structure
| Component | Description | Key Features |
| Gantry Structure | Heavy-duty steel portal frame for crane movement along quay rails | Rail clamps, wheel brakes, large wheel assemblies, excellent stability |
| Boom | Main lifting arm extending over vessels | Box-girder or truss structure, up to 80° pitching angle, optimized for large vessels |
| Trolley Assembly | Moving trolley carrying spreader and hoisting system | High acceleration, low maintenance, high-speed travel |
| Spreader System | Container handling device | Standard spreader, rotating spreader, twin-lift spreader, automatic twistlock spreader, supports 20ft / 40ft / 45ft containers |
| Hoisting Mechanism | Main lifting drive system | Heavy-duty gearbox, dual brakes, torque monitoring, overspeed protection |
| Operator Cabin | Crane control and monitoring station | Joystick control, CCTV system, touchscreen HMI, collision avoidance, optional remote operation station |

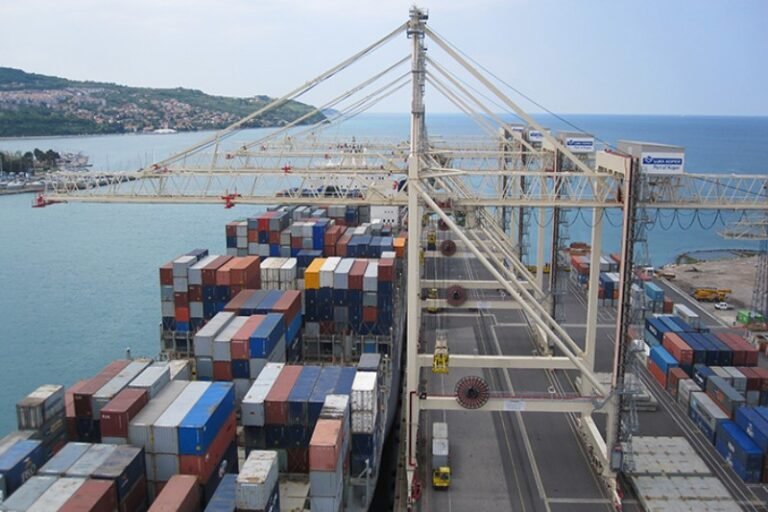

Ship To Shore Crane Applications
Our STS container cranes are widely used in:
- Container terminals
- Deep-water ports
- Automated ports
- Logistics hubs
- Port modernization projects
- Intermodal terminals
Compatible with major global brands including:
- Liebherr
- Noell
- SANY
- Halterm systems
Why Choose Our China STS Crane Factory?
Competitive Advantages
Factory Direct Pricing
No middlemen — competitive ship to shore crane price.
Fast Delivery
Efficient manufacturing and global logistics.
OEM & Custom Design
Customized crane solutions for different port requirements.
Global Installation Support
Professional installation and commissioning team.
Spare Parts Supply
Original ship to shore crane parts available worldwide.
Training Services
We provide:
- Crane operator training
- Simulation systems
- Maintenance manuals
- Safety courses
Get A Quote Today
Looking for a reliable ship to shore crane manufacturer in China?
We provide:
- Custom STS crane solutions
- Fast delivery
- OEM manufacturing
- Global shipping
- Installation & commissioning
- Operator training
- After-sales support
Contact us today for the latest ship to shore crane price and technical proposal.
FAQs About Ship To Shore (STS) Container Crane
With proper maintenance, STS cranes typically operate for:
- 25–35 years
Yes. We provide:
- Semi-automatic systems
- Fully automatic systems
- Remote operation systems
Yes. We provide:
- Crane ropes
- Spreaders
- Bumpers
- Cabins
- Twistlocks
- Rotating spreaders
STS crane price depends on:
- Outreach
- Lift height
- Automation level
- Capacity
- Port requirements
Prices range from several million USD to tens of millions USD.
