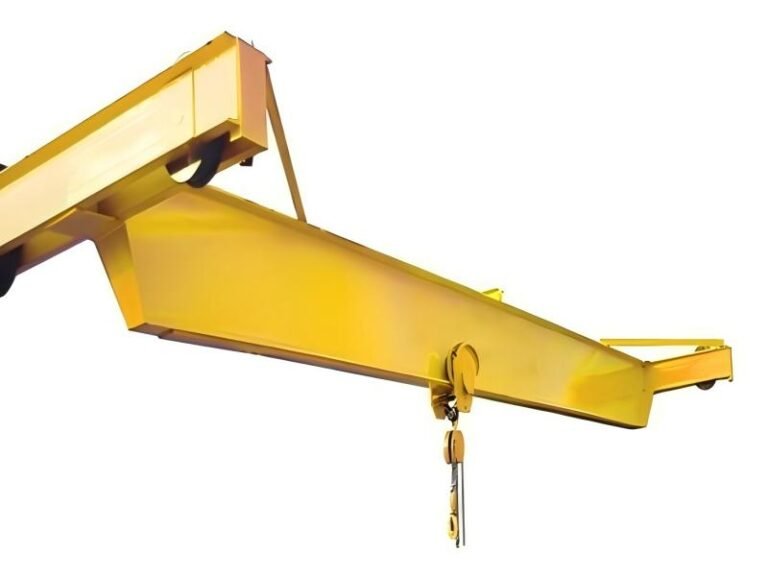

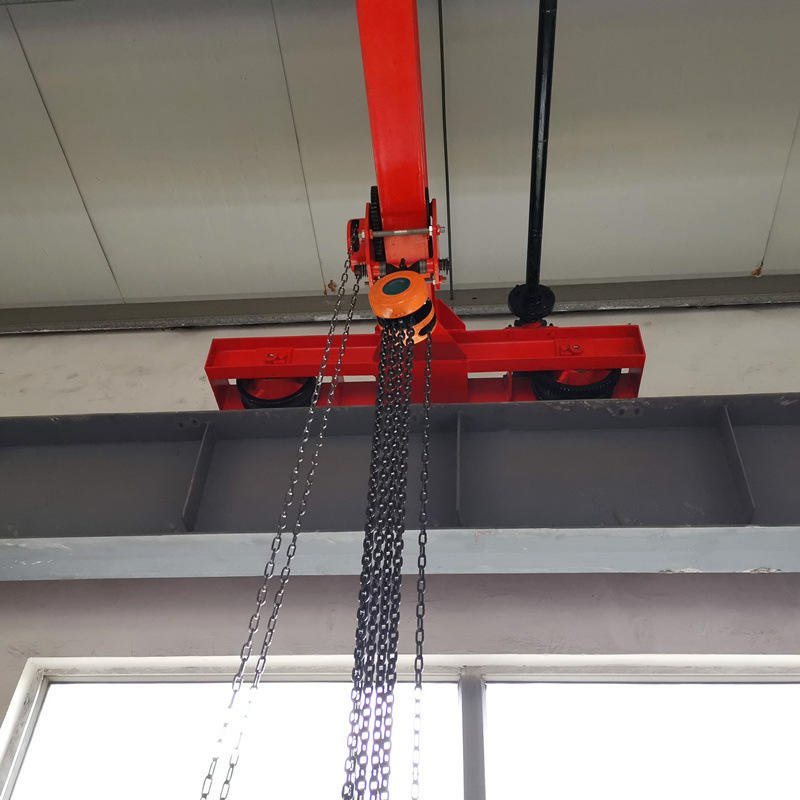

Manual Single Girder Overhead Crane

MecBase is a professional manufacturer, supplier, and wholesale provider of Manual Single Girder Overhead Cranes in China. With extensive experience in crane manufacturing and global export, we supply high-quality manual overhead cranes and customized lifting solutions to customers worldwide.

A manual single girder overhead crane is a cost-effective lifting solution that operates without electric power. It is available in both top running and underslung (under running) types, making it suitable for locations where electrical power is unavailable or limited.

With a compact and simple structure, manual overhead cranes are easy to transport, install, and operate, making them ideal for light-duty lifting applications.

Technical Specifications

The following technical specifications apply to our manual single girder overhead crane, designed for simple, reliable, and cost-effective material handling in environments without power supply. Our manual overhead cranes are widely used in maintenance work, small workshops, and light-duty industrial applications, with customizable options available to meet specific project requirements.

Parameter	Specification
Capacity	Up to 5 ton
Span Length	4 m – 12 m
Lifting Height	3 m / 6 m / 9 m (up to 10 m)
Work Duty	A1
Power Supply	Manual Operation (No Power Required)
Control Mode	Floor Control

Product Advantages

No Power Required – Ideal for environments without electricity
Simple & Reliable Design – Fewer components, low failure rate
Easy Installation & Transport – Lightweight and compact structure
Flexible Operation – Manual control allows precise positioning
Low Cost Solution – Reduced initial investment and maintenance cost

Applications

Manual single girder overhead cranes are widely used in:
Equipment installation and maintenance
Sewage treatment plants
Cement plants
Wind turbine rooms
Coal bunkers in thermal power plants
Hydropower projects

They are especially suitable for light-duty material handling where power supply is not available.

Manual Single Girder Overhead Crane Price List (Reference)

Product	Span (m)	Lifting Height (m)	Power Supply	Price (USD)
1 Ton	4–12	3 / 6 / 9 (up to 10 m)	Manual Mode	$840 – $1,800
2 Ton	4–12	3 / 6 / 9 (up to 10 m)	Manual Mode	$880 – $1,900
3 Ton	4–12	3 / 6 / 9 (up to 10 m)	Manual Mode	$930 – $2,000
5 Ton	4–12	3 / 6 / 9 (up to 10 m)	Manual Mode	$1,600 – $3,060

Manual vs Electric Overhead Crane

When choosing between a manual overhead crane and an electric overhead crane (EOT crane), the main difference lies in power source, efficiency, and application scope.

Item	Manual Overhead Crane	Electric Overhead Crane
Power Source	Manual operation (no electricity required)	Electric motor driven
Lifting Capacity	Light duty (typically ≤5 ton)	Light to heavy duty (1–100+ ton)
Working Efficiency	Lower, depends on operator	High efficiency, continuous operation
Control Method	Hand chain / manual push	Pendant control / remote control
Installation Cost	Lower	Higher
Maintenance	Simple, low maintenance	Requires regular electrical maintenance
Operation Precision	Moderate	High precision and smooth control
Application Range	Occasional use, maintenance work	Frequent and heavy-duty industrial use

Which One Should You Choose?

Choose a Manual Overhead Crane if:

No power supply is available
Lifting tasks are infrequent or light-duty
You need a low-cost solution

Choose an Electric Overhead Crane (EOT Crane) if:

You require high efficiency and continuous operation
Lifting tasks are frequent or heavy-duty
You need precise control and higher productivity

Get a Quote for Manual Overhead Crane

Looking for a reliable China manual single girder overhead crane manufacturer? MecBase provides durable, cost-effective, and customized manual crane solutions.
