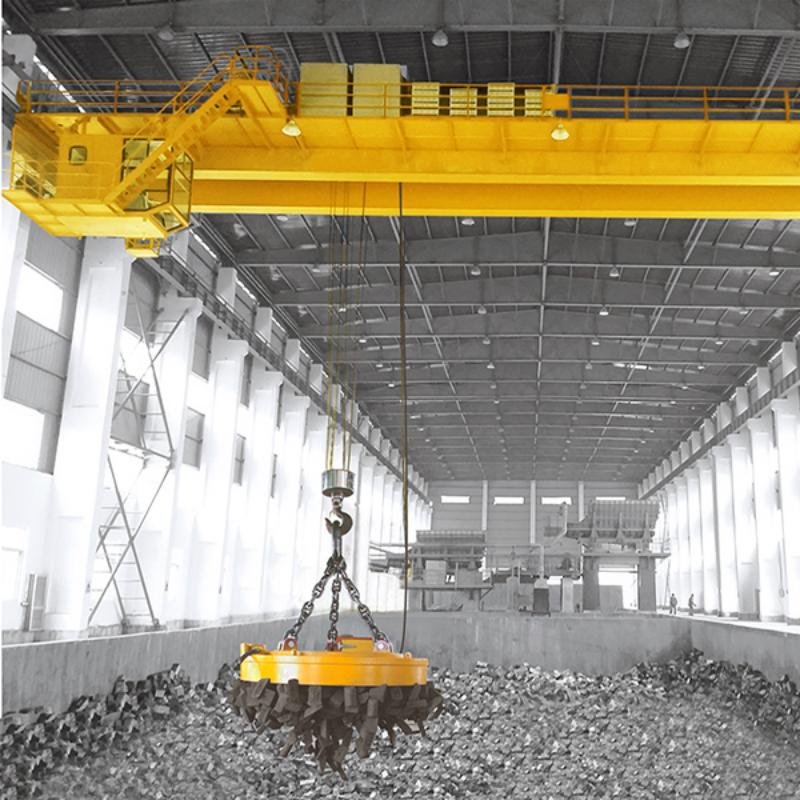

Electromagnetic Overhead Crane
An electromagnetic overhead crane is a type of overhead crane equipped with a lifting magnet as its hoisting device to handle metal goods. It converts electrical energy into strong magnetic force through the principle of electromagnetic induction, thereby adsorbing and transporting ferromagnetic materials.
In actual production, electromagnetic overhead cranes are widely used. They are mainly used to adsorb and transport ferromagnetic heavy objects, and are widely applied in steel plants, scrap recycling stations, machinery processing plants and other places.
As a professional electromagnetic overhead cranes manufacturer, supplier, and exporter in China, MecBase offers high-quality and fully customizable solutions for global customers.
Technical Specifications (Electromagnetic Overhead Crane Specifications)
The following technical specifications apply to our electromagnetic overhead crane, designed for high efficiency, heavy-duty performance, and long service life.
Our electromagnetic overhead traveling cranes are widely used in steel mills, scrap yards / recycling plants, machinery processing factories, ports and terminals, offering high lifting capacity, stable operation and reliable performance. All specifications are customizable to meet specific project requirements.
| Parameter | Specification |
| Lifting Capacity | 5 ton – 50 ton |
| Span Length | 10.5 m, 13.5 m, 16.5 m, or customized |
| Lifting Height | 9 m, 12 m, 16 m, or customized |
| Duty Class | A5 – A8 |
| Rated Voltage | 380V, 440V, 50/60 Hz, 3 Phase AC |
| Working Temperature | -20°C to +40°C (Humidity ≤ 85%) |
| Control Mode | Pendant Control / Wireless Remote Control / Cabin Control |
| Reference Price Range | USD 10,000 – 80,000 per set，Prices vary depending on configuration and customization. |
Â
Applications
- Electromagnetic overhead cranes are widely used in:
- Iron and Steel Metallurgy Industry
- Waste Material Recycling / Dismantling Industry
- Machining and Manufacturing
- Ports, Docks, and Logistics Parks
- Other Heavy Industry Scenarios
Why Choose Our Electromagnetic Overhead Cranes?
- Efficient Handling
No need for binding or fixtures. It can magnetically lift steel plates, billets, scrap iron and other ferrous metals quickly with one operation. - Wide Application
Ideal for steel mills, scrap yards, machinery factories, ports and metal processing plants, handling various magnetic materials continuously. - Stable & Precise
Overhead crane structure ensures smooth movement and accurate positioning, suitable for heavy-duty and long-hour working. - Safe & Reliable
Equipped with power-off magnetic retention and loss-of-magnetism protection to prevent accidental falling. - Labor Saving
Can be operated by wired controller or remote control, reducing manpower and improving safety. - Fully Customizable
Lifting capacity, span, lifting height, electromagnetic chuck and control system can all be customized to meet project demands. - Durable & Low Maintenance
Heavy-duty design, sturdy structure and simple maintenance, adapting to harsh industrial environments.
Components – Electromagnetic Overhead Cranes
Main components of electromagnetic overhead cranes include:
| Component | Description | Key Features |
| Main Beam | Box girder | High rigidity, good stability and strong load-bearing capacity |
| End Carriages | Box girder | Connect the main girder with the traveling wheels |
| Trolley | Traveling mechanism | Fitted with hoist and lifting magnet |
| Hoisting Mechanism | Crane lifting system | Provides power for vertical lifting and lowering |

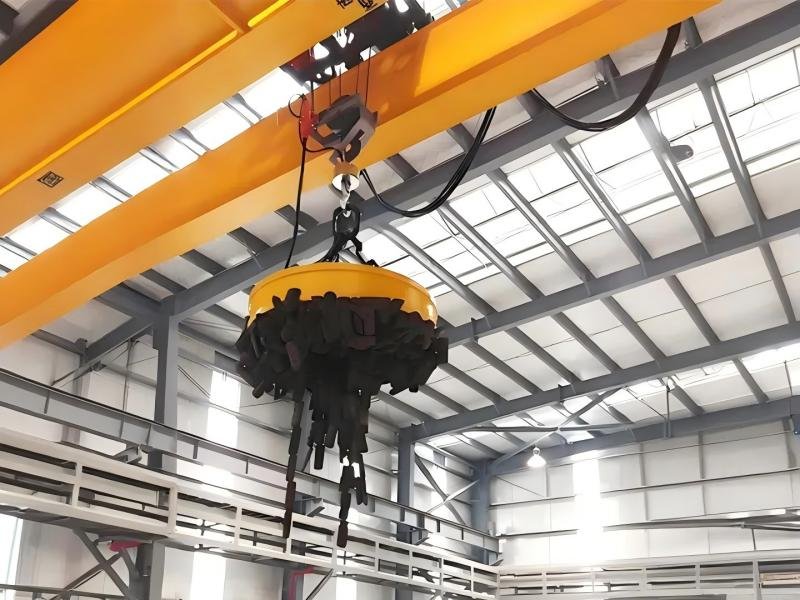

| Lifting Magnet / Electromagnetic Chuck | Adsorb magnetic materials | Generates strong magnetic force when energized to attract and lift magnetic materials such as steel plates, steel billets, scrap steel and iron filings |
| Electrical Control System | Control system | Controls all movements: lifting, trolley travel, crane travel, as well as magnetization and demagnetization of the lifting magnet, realizing coordinated operation |
| Safety Devices | Safety protection | Prevent overload, overtravel and collision; ensure safe and stable operation |
More Types of Electromagnetic Overhead Cranes
- QC Type Electromagnetic Overhead Crane
- Double Girder Electromagnetic Overhead Crane
- Single Girder Electromagnetic Overhead Crane
- Explosion-proof Electromagnetic Overhead Crane
- Variable Frequency Electromagnetic Overhead Crane
- Metallurgical Special Electromagnetic Overhead Crane
- Double Trolley Electromagnetic Overhead Crane
- Indoor / Outdoor Type Electromagnetic Overhead Crane
Get Your Quote Today
Looking for a reliable Electromagnetic Overhead Cranes supplier?
Contact MecBase now to get:
- Free technical consultation
- Fast quotation within 24 hours
- Customized crane solution
- Competitive factory price
FAQs About Electromagnetic Overhead Cranes
An electromagnetic overhead crane is equipped with a lifting magnet to attract and lift ferrous materials via magnetic force.
It mainly lifts steel plates, billets, coils, scrap steel, cast iron, iron filings and other magnetic metals.
No. It is equipped with a power-off magnetic retention system to keep the load safe during a power failure.
The magnet attracts loads when powered on and releases them when powered off, no binding needed.
Electromagnetic cranes use magnetic force for fast handling; hook cranes need slings and suit non-magnetic loads.
Yes. We can customize according to workshop size and material weight.
Yes. Round and rectangular magnets are available in custom sizes.
Cabin control, pendant control and wireless remote control are available.
