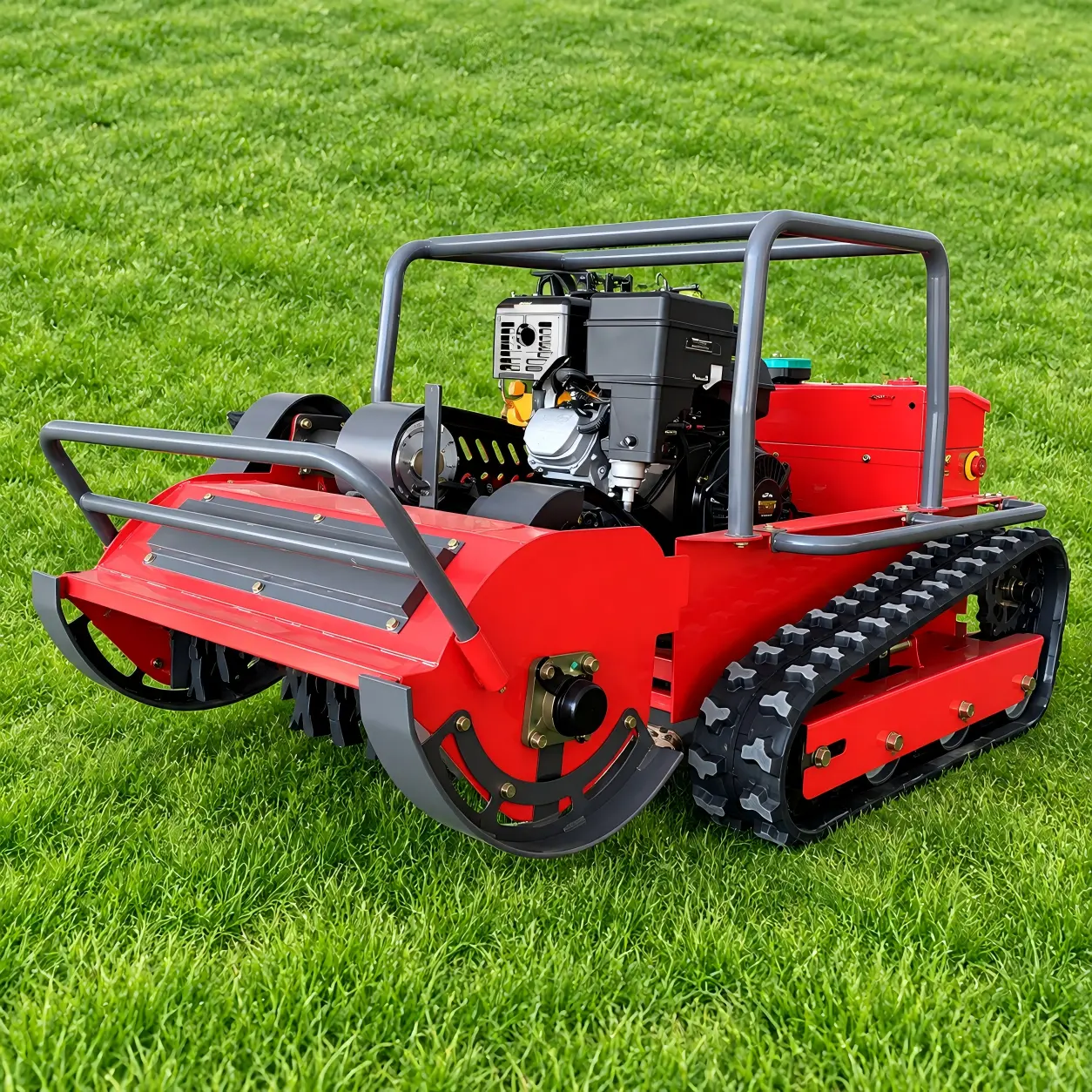

SDL Diesel 195-80 Tracked Remote Control Mower
800 mm diesel tracked remote control mower for tall grass, orchards, slopes and general vegetation management.
The SDL Diesel 195-80 combines an 800 mm cutting width, KOOP Diesel 195 engine and electric tracked drive in a 340 kg platform. Designed for remote vegetation management, it provides diesel power, tracked mobility and a 48-blade cutting system for grass, weeds and uneven working areas.
800 mm Cutting Width · KOOP Diesel 195 · Tracked Drive · 48 Swinging Blades
Standard 800 mm Diesel Tracked Mower
The SDL Diesel 195-80 provides an 800 mm cutting platform in a relatively straightforward diesel tracked configuration.
Compared with the larger or higher-specification diesel models, it offers a balance between cutting coverage, machine size and diesel power for orchards, landscaping, slopes and general vegetation management.
Key Features
800 mm Cutting Width
Provides efficient mowing coverage while maintaining a relatively compact machine width.
KOOP Diesel 195 Engine
Diesel-powered configuration for regular vegetation management applications.
Electric Tracked Drive
Tracked self-propelled system for operation across uneven terrain.
48 Swinging Blades
Multi-blade cutting system for grass, weeds and general vegetation.
Wireless Remote Control
Allows the operator to control movement and mowing functions from a distance.
Technical Specifications
| Specification | Details | Specification | Details |
| Model | SDL Diesel 195-80 | Product Type | Diesel Tracked Remote Control Mower |
| Cutting Width | 800 mm | Deck Lift Range | 0–450 mm |
| Travel Speed | 0–5 km/h | Max. Working Slope | <45°* |
| Operation | Wireless Remote Control | Drive System | Electric Tracked Self-Propelled |
| Drive Motor Rated Power | 800 W** | Drive Voltage | 24 V |
| Max. Remote Range | 680 m* | Charging System | Engine Self-Charging |
| Generator Output | 2,000 W | Fuel Tank Capacity | 5.5 L |
| Engine Brand | KOOP | Engine Model | Diesel 195 |
| Fuel Type | No. 0 Diesel | Starting System | Electric / Recoil Start |
| Track Type | Engineering Rubber Track | Transmission | V-Belt |
| Blade System | 48 Swinging Blades | Machine Weight | 340 kg |
| Machine Dimensions | 1600 × 1080 × 890 mm | Gross Weight | 430 kg |
| Package Dimensions | 1650 × 1230 × 1070 mm | Applications | Slopes, Orchards, Tall Grass, Landscaping |
Typical Applications
Tall Grass & Weeds
48-blade cutting system for general vegetation and overgrown grass.
Orchards
800 mm cutting width for vegetation management across orchard and agricultural areas.
Slopes & Uneven Terrain
Tracked propulsion and remote operation for challenging ground conditions.
Landscaping
Suitable for routine vegetation management across larger landscaped areas.
Find the Right Diesel Mower
Tell us your terrain, vegetation type, working slope, working area and required cutting width.
MecBase can help you compare gasoline and diesel remote control mower configurations for your application.
SDL Diesel 195-80 vs SDL Diesel 195-80B
| Specification | SDL Diesel 195-80 | SDL Diesel 195-80B |
| Cutting Width | 800 mm | 800 mm |
| Engine | KOOP Diesel 195 | KOOP Diesel 195 |
| Drive Motor(s) | 800 W* | 800 W × 2 |
| Electrical System | 24 V | To Be Confirmed |
| Generator | 2.0 kW | 2.5 kW |
| Deck Lift Range | 0–450 mm | 0–450 mm |
| Remote Deck Lift | Not Specified | Yes |
| Max. Working Slope | <45° | <50° |
| Machine Weight | 340 kg | 378 kg |
| Gross Weight | 430 kg | 468 kg |
| Positioning | Standard Diesel | Heavy-Duty Diesel |
SDL Diesel 195-80 — Standard 800 mm diesel configuration with a lighter 340 kg tracked platform.
SDL Diesel 195-80B — Heavier 800 mm configuration with higher generator output and specified remote deck adjustment.
How to Choose the Right Remote Control Mower
Before selecting the SDL196-50A or a larger tracked model, consider:
Terrain — lawn, uneven ground, slope or rough terrain?
Vegetation — maintained grass, weeds or dense vegetation?
Working slope — what angle will the machine normally work on?
Access width — does the machine need to pass through gates or narrow areas?
Cutting width — is maneuverability or mowing coverage more important?
Operating time — how many hours will the mower normally work?
For more demanding slopes, rough terrain or heavier vegetation, a tracked or heavier-duty mower configuration may be more appropriate.
