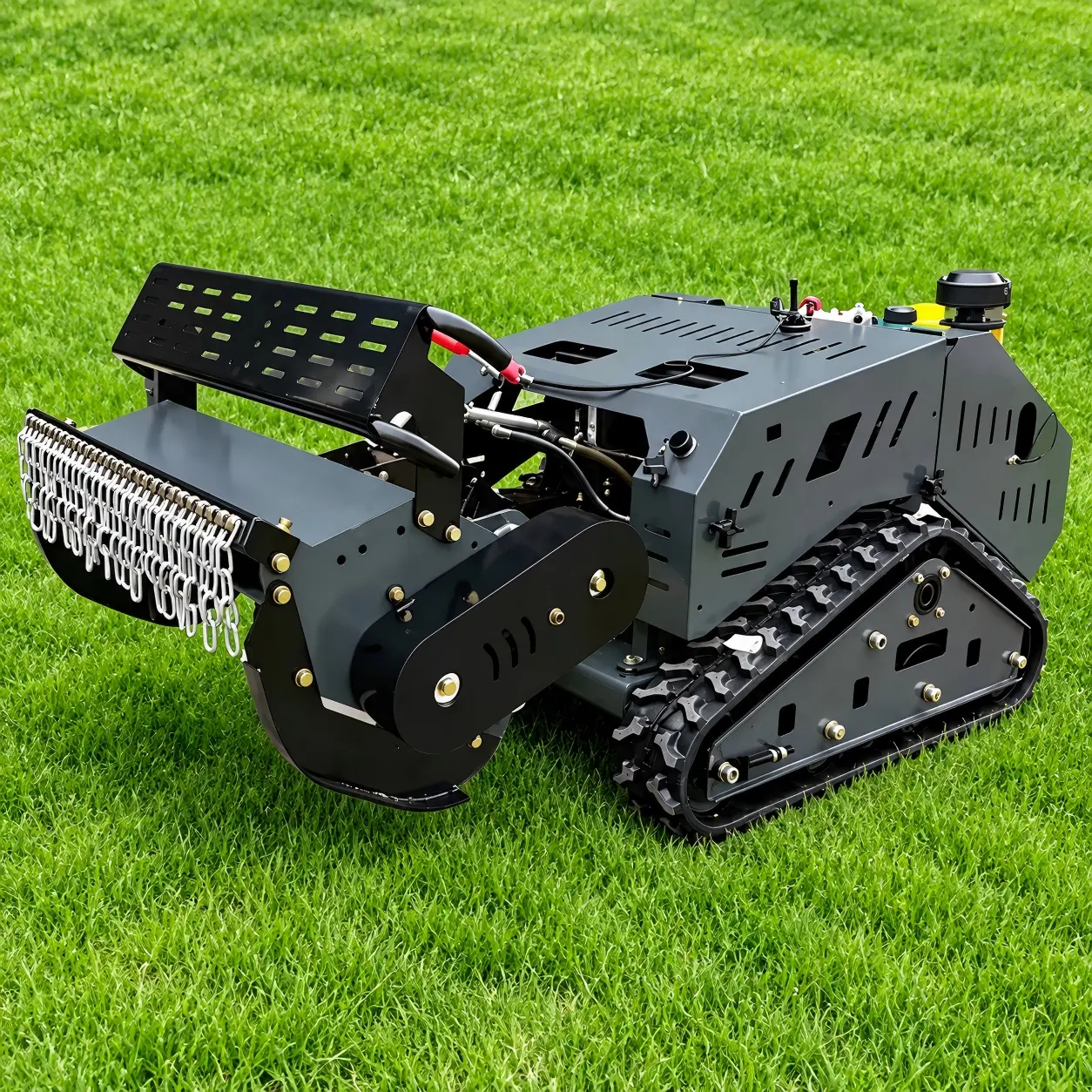

Remote Control Multi-Function Diesel Tiller
Remote-controlled multi-function diesel machine for mowing, rotary tilling, trenching and weeding.
The Remote Control Multi-Function Diesel Tiller is designed for orchards, farms, landscaping and agricultural land maintenance. Its interchangeable working attachments allow one tracked machine to perform multiple tasks, including grass cutting, rotary tilling, trenching and weeding.
Powered by a diesel engine and dual brushless electric track motors, the machine combines remote operation with a versatile attachment system for different field applications.
Mowing · Rotary Tilling · Trenching · Weeding · Remote Control
One Machine, Multiple Agricultural Tasks
Instead of using separate machines for mowing, soil preparation, trenching and weeding, this remote-controlled platform can be equipped with different working attachments according to the job.
The tracked chassis provides mobility across agricultural and orchard terrain, while the 200 m remote-control range allows the operator to control the machine from a distance.
Key Features
Multi-Function Attachment System
Supports mowing, rotary tilling, trenching and weeding operations.
800 mm Mowing Width
Suitable for grass and vegetation management in orchards, farms and landscaped areas.
900 mm Tilling Width
Rotary tilling attachment for soil preparation with a specified working depth of 130–250 mm.
260 mm Trenching Width
Trenching attachment provides a specified working depth of 200–300 mm.
Remote-Controlled Operation
Tracked movement and working functions can be controlled remotely, with electric attachment adjustment.
Technical Specifications
| Specification | Details | Specification | Details |
| Product Type | Remote Control Multi-Function Diesel Tiller | Drive System | Electric Tracked Self-Propelled |
| Main Functions | Mowing, Tilling, Trenching, Weeding | Remote Range | 200 m* |
| Mowing Width | 800 mm | Tilling Width | 900 mm |
| Tilling Depth | 130–250 mm | Trenching Width | 260 mm |
| Trenching Depth | 200–300 mm | Attachment Adjustment | Electric |
| Drive Motors | 800 W × 2 Brushless | Battery | 24 V / 55 Ah |
| Generator | 24 V / 75 A DC | Fuel Tank Capacity | 5.5 L |
| Engine | Diesel 1102** | Starting System | Electric / Recoil Start |
| Blade Shaft Speed | 360 rpm | Fuel Consumption | Approx. 1.5 L/h |
| Tilling Blades | 24 Total | Trenching Blades | 10 Total |
| Machine Dimensions | 1700 × 920 × 740 mm | Machine Weight | 400 kg |
| Applications | Orchards, Farms, Landscaping | Typical Terrain | Agricultural & Uneven Ground |
Typical Applications
Mowing
800 mm Working Width
For grass cutting and vegetation maintenance in orchards, farms and landscaped areas.
Rotary Tilling
900 mm Working Width · 130–250 mm Working Depth
For soil loosening and preparation before planting or other agricultural operations.
Trenching
260 mm Trench Width · 200–300 mm Working Depth
For creating narrow trenches in agricultural and landscaping applications.
Trenching
260 mm Trench Width · 200–300 mm Working Depth
For creating narrow trenches in agricultural and landscaping applications.
Interchangeable Attachments
| Attachment | Key Specification | Typical Use |
| Mowing Attachment | 800 mm Working Width | Grass & Vegetation Cutting |
| Rotary Tiller | 900 mm Width / 130–250 mm Depth | Soil Preparation |
| Trencher | 260 mm Width / 200–300 mm Depth | Agricultural Trenching |
| Weeding Wheel | 380 mm Length / 180 mm Radius | Mechanical Weeding |
Trenching Attachment
800 mm Length · 220 mm Radius · 10 Blades · 5.5 kg
Rotary Tilling Attachment
360 mm Length · 180 mm Radius · 24 Blades · 10.5 kg
Weeding Wheel
380 mm Length · 180 mm Radius · 10 Blades · 7.3 kg
One Machine for Multiple Field Operations
Need to perform more than just mowing?
Tell us your working area, soil conditions, required operations and attachment requirements. MecBase can help configure the machine and attachments for your application.
