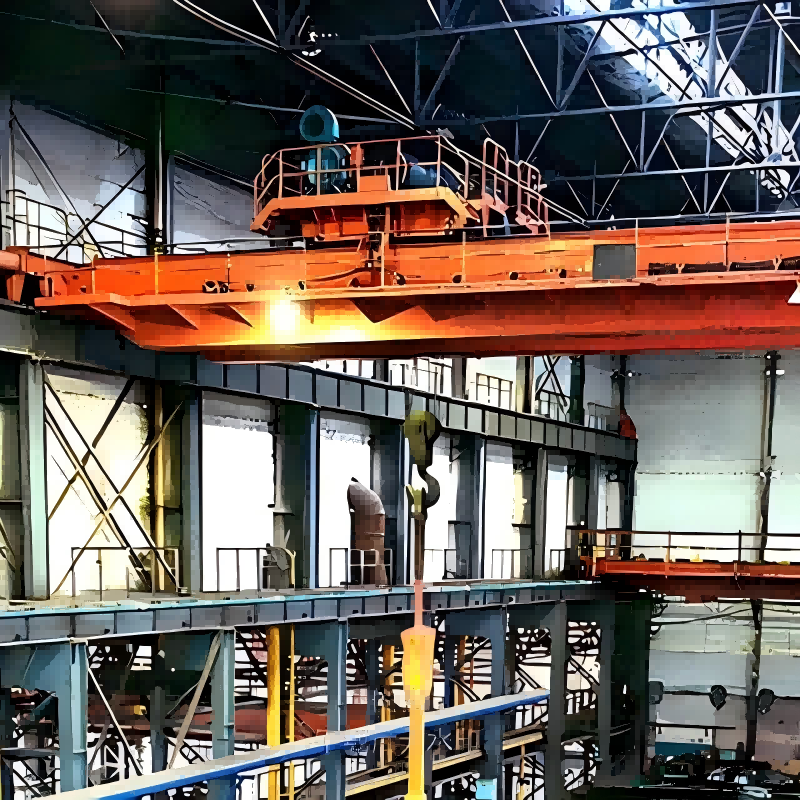

Quenching Overhead Crane Manufacturer for Heat Treatment Plants

A quenching overhead crane is a specialized high-temperature lifting system designed for heat treatment plants, steel mills, forging workshops, and industrial furnace operations. These cranes are engineered to safely handle red-hot workpieces, transfer heated metal components into quenching tanks, and operate continuously in extreme thermal environments with high heat radiation, dust, steam, and thermal shock conditions.

As a professional quenching overhead crane manufacturer, MecBase provides customized heat treatment crane solutions for furnace charging, quenching operations, forging production lines, and automated industrial heat treatment systems. Our cranes are designed for precise positioning, high operational safety, long service life, and minimal downtime under demanding heavy-duty working conditions.

Key Features of Quenching Overhead Crane

High-Temperature Insulation Design

Multi-layer heat shield between hoist and load hook
Ceramic fiber and radiation-reflective stainless steel cladding
Heat-resistant alloy steel hook rated for up to 800°C direct contact
Special high-temperature lubricants for all moving parts

Efficient Heat Dissipation and Reliable Operation

Forced air cooling system for electrical cabinets
Heat-resistant trailing cables with silicone rubber insulation
Dual-speed hoisting for smooth entry into quenching liquid
IP55–IP65 protection against dust and thermal particles

Advanced Safety System for High-Temperature Zones

The crane is equipped with:

Over-temperature shutdown protection
Overload and load moment limiting systems
Emergency descent system in case of power loss
Anti-sway mechanism for precise dipping operation
Limit switches with heat-resistant actuators

High Efficiency and Low Downtime

Fast lifting speed up to 12 m/min for reduced heat loss
Maintenance-friendly modular design
Quick-change heat shield panels
Optional dual-trolley configuration for simultaneous furnace charging and quenching

Specialized Quenching Duty Features

Controlled lowering speed to prevent steam pocket explosions
Anti-splash shielding around hoist drum
Remote operation from cooled operator cabin or wireless control station
Automatic dipping cycle with programmable depth and dwell time

Technical Specifications

Parameter	Specification
Lifting Capacity	32 t – 350 t
Span	20 m – 34 m
Lifting Height	15 m – 36 m
Hoisting Speed	0.8 – 12 m/min
Lowering Speed	0.8 – 16 m/min
Cross Travel Speed	10 – 40 m/min
Bridge Travel Speed	20 – 60 m/min
Duty Class	A6 – A8
Protection Level	IP55 – IP65
Working Temperature	-10°C to +80°C
Power Supply	380V / 415V / 440V / 690V

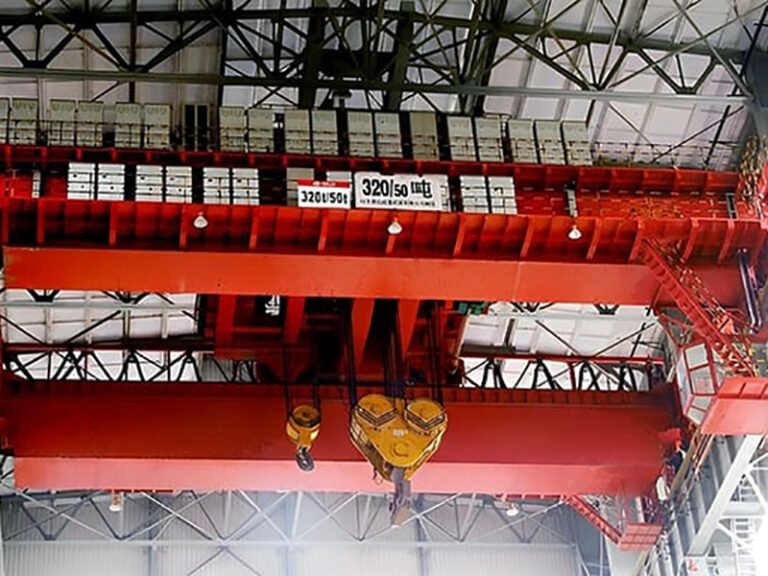

Components Of The Unit

The industrial quenching overhead crane mainly consists of five core systems: bridge structure, lifting mechanism, running mechanism, spreader system, and electrical control system. The crane adopts a double-girder double-rail design to meet high-load and high-precision industrial quenching requirements.

Bridge Structure

Box-type double-girder welded structure manufactured from Q345B high-strength steel for maximum rigidity and durability.

Lifting Mechanism

Double-reel motor system with brake assembly and wire rope leveling device for stable lifting operation.

Running Mechanism

Three-in-one drive motor system with anti-gouging wheel assemblies and horizontal guide wheels.

Spreader System

Optional spreader configurations include:

C-hook
Electromagnetic lifting magnet
Mechanical gripping fixture

Electrical Control System

Explosion-proof PLC control cabinet
Absolute encoder positioning system
Integrated temperature monitoring sensors

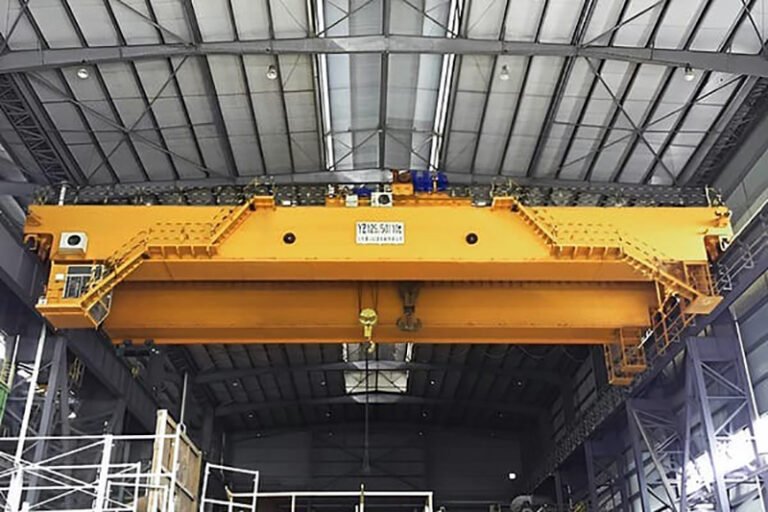

Applications of Quenching Overhead Crane

Our quenching overhead cranes are widely used in:

Heat treatment plants with batch and continuous furnaces
Automotive component manufacturing
Gear, shaft, and spring heat treatment
Forging and foundry workshops
Aerospace alloy heat treatment lines
Steel mills and metallurgical plants
Heavy machinery manufacturing industries
Large casting and forging quenching operations

Why Choose Our Quenching Overhead Crane?

Designed specifically for high-temperature intermittent duty cycles
Patented multi-layer heat shield technology
Reliable performance with minimal heat-related failures
Complete safety protection for operators and equipment
Fully customizable according to furnace layout and quenching tank arrangement
Global technical support and spare parts availability
Long service life with low maintenance requirements

Customization Options

We provide customized solutions according to your industrial heat treatment process requirements.

Feature	Options
Hook Heat Protection	Up to 1000°C specialized coating
Cabin Type	Air-conditioned / dust-sealed / remote-only
Control System	Manual / semi-automatic / fully automatic
Heat Shield Material	Ceramic fiber / stainless steel / water-cooled
Anti-Sway System	Mechanical or electronic
IoT Monitoring	Temperature, load, cycle logging
Explosion-Proof Level	Ex dⅡBT4 / Ex dⅡCT4

Get a Quote for Your Quenching Overhead Crane

Looking for a reliable quenching overhead crane supplier or manufacturer for your heat treatment plant or forging workshop?

We provide:

Customized high-temperature crane solutions
Competitive factory pricing
Professional engineering support
Fast delivery and installation supervision
24/7 after-sales service and spare parts support

FAQs About Quenching Overhead Cranes

How does the crane protect against radiant heat from red-hot workpieces?

The crane uses a multi-layer thermal shield system combined with ceramic fiber insulation and reflective stainless steel panels. Electrical components are installed inside cooled and sealed cabinets to ensure stable operation in high-temperature environments.

Can the crane handle immersion into water or oil quenching tanks?

Yes. The lifting mechanism and hook system are designed for thermal shock resistance. Controlled lowering speed and anti-splash protection ensure safe operation during immersion into quenching media.

What happens if the crane loses power during quenching operation?

An emergency descent system allows controlled lowering of the workpiece into the quenching tank, helping prevent product damage and operational hazards.

Is the crane suitable for both air quenching and salt bath quenching?

Yes. Additional corrosion-resistant protection and enhanced heat resistance are available for salt bath quenching environments.

Can the crane be customized for existing workshops?

Absolutely. We provide customized crane span, lifting height, rail positioning, and structural configurations according to your workshop layout and production process.
