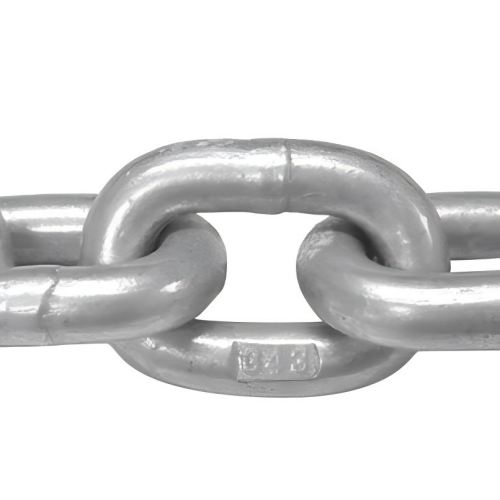

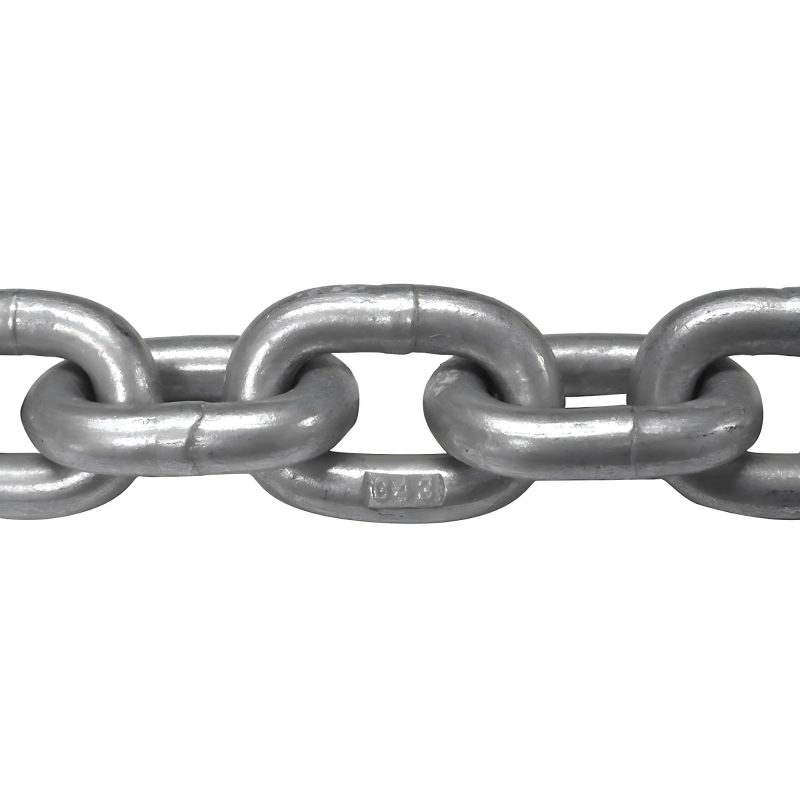

NACM 2010 G43 High Test Chain Manufacturer & Supplier
NACM 2010 Grade 43 High Test Chain is a high-strength welded carbon steel chain manufactured in accordance with NACM (National Association of Chain Manufacturers) specifications. Grade 43 chain offers significantly higher working load limits than Grade 30 Proof Coil Chain and is widely used in construction, agriculture, transportation, logging, towing, cargo securement, and industrial applications.
Designed for heavy-duty service, G43 High Test Chain provides excellent tensile strength, wear resistance, and durability while maintaining a lighter weight than higher-grade transport chains.
Important: Grade 43 High Test Chain is NOT intended for overhead lifting applications. For lifting operations, Grade 80 or Grade 100 alloy chains should be used.
Product Specifications
| Item | Specification |
| Standard | NACM 2010 |
| Grade | G43 High Test |
| Material | High Strength Carbon Steel |
| Manufacturing | Electric Welded |
| Surface Finish | Self Color, Zinc Plated, Hot Dip Galvanized |
| Chain Type | Welded Link Chain |
| Working Load Limit | Per NACM Specification |
| Marking | G43 / 43 Marked |
| Application | Cargo Securement, Agriculture, Construction, Towing |
| Lifting Use | Not Permitted |
Features
- Manufactured according to NACM 2010 specifications
- Higher strength than Grade 30 Proof Coil Chain
- Excellent abrasion and wear resistance
- Available in self-colored, zinc plated, or galvanized finish
- Suitable for trucking, agriculture, industrial, and construction applications
- Consistent dimensional tolerances
- Durable welded link construction
- Available in bulk reels, drums, or cut lengths
Grade 43 chain is commonly used for cargo lashing, tow chains, log chains, pipeline hanging, tailgate chains, and general industrial securing applications.
Â
Typical Working Load Limits
| Chain Size | Working Load Limit |
| 1/4″ (7 mm) | 2,600 lbs (1,180 kg) |
| 5/16″ (8 mm) | 3,900 lbs (1,770 kg) |
| 3/8″ (10 mm) | 5,400 lbs (2,450 kg) |
| 1/2″ (13 mm) | 9,200 lbs (4,170 kg) |
| 5/8″ (16 mm) | 13,000 lbs (5,910 kg) |
| 3/4″ (20 mm) | 20,200 lbs (9,180 kg) |
Actual values may vary depending on chain size and manufacturer specifications.
Surface Finish Options
Self Color
Economical finish suitable for indoor applications.
Zinc Plated
Provides moderate corrosion resistance for outdoor use.
Hot Dip Galvanized
Offers superior corrosion protection for marine and harsh environments.
Why Choose Grade 43 High Test Chain?
Compared with standard Proof Coil Chain, Grade 43 High Test Chain provides approximately twice the working load capacity for the same chain size, making it a preferred choice for demanding industrial and transportation applications.

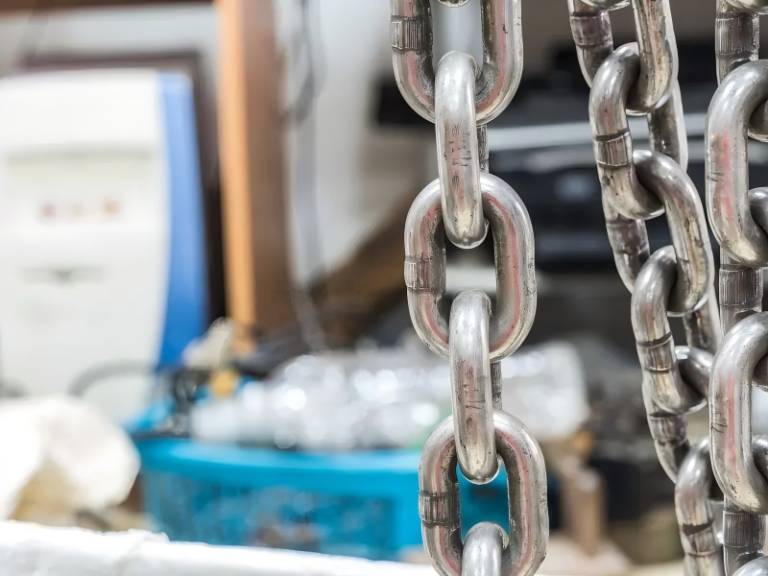

Applications
Construction Industry
- Equipment securing
- Material handling
- Temporary anchoring
Agriculture
- Farm equipment
- Tractor towing
- Livestock and gate chains
Transportation
- Cargo securement
- Trailer tie-downs
- Load restraint systems
Industrial Use
- Pipeline hanging
- Guard rail chains
- General utility applications
Forestry & Logging
- Log chain
- Skidding operations
- Timber handling
Get A Quote Today
We supply NACM 2010 Grade 43 High Test Chain for cargo securement, towing, agricultural, construction, and general industrial applications.
Why Choose Us?
âś“ NACM 2010 Compliant Grade 43 Chain
âś“ Carbon Steel Welded Construction
âś“ Self Color, Zinc Plated, or Hot Dip Galvanized Finish
âś“ Custom Chain Lengths Available
âś“ Bulk Reel and Cut Length Supply
âś“ OEM Marking and Packaging Support
âś“ Material Certification Available
âś“ Competitive Pricing
âś“ Fast Worldwide Delivery
FAQs About Grade 43 High Test Chain
Grade 43 High Test Chain is a high-strength welded carbon steel chain manufactured according to NACM standards and commonly used for towing, cargo securement, agriculture, and industrial applications.
Yes. Grade 43 offers substantially higher working load limits than Grade 30 Proof Coil Chain of the same size.
No. Grade 43 chain is not approved for overhead lifting applications. Only Grade 80 or Grade 100 alloy chains should be used for lifting.
Yes. Grade 43 chain is commonly available in self-colored, zinc-plated, and hot-dip galvanized finishes.
