Low Headroom Wire Rope Electric Hoist

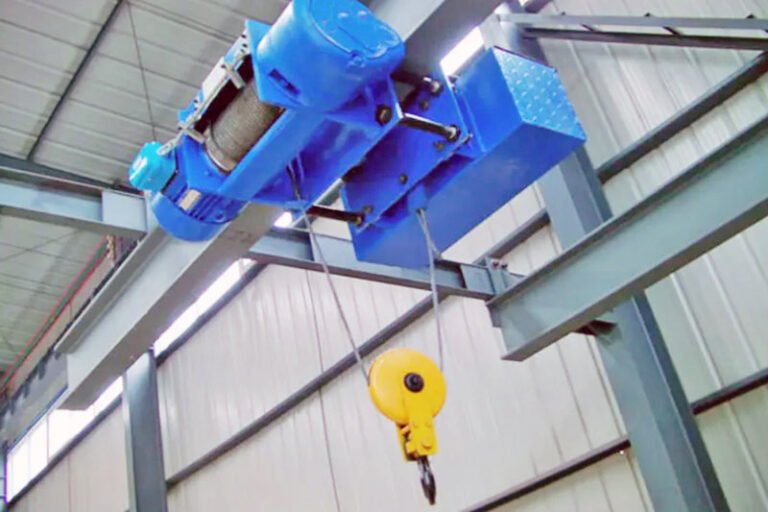

Low Headroom Wire Rope Electric Hoist is a kind of compact lifting equipment specially designed for limited height space, which can be matched with single-girder overhead cranes, single-girder gantry cranes and other lifting machinery, widely used in low-height workshops, warehouses, stockyards, underground garages, assembly workshops and other places.

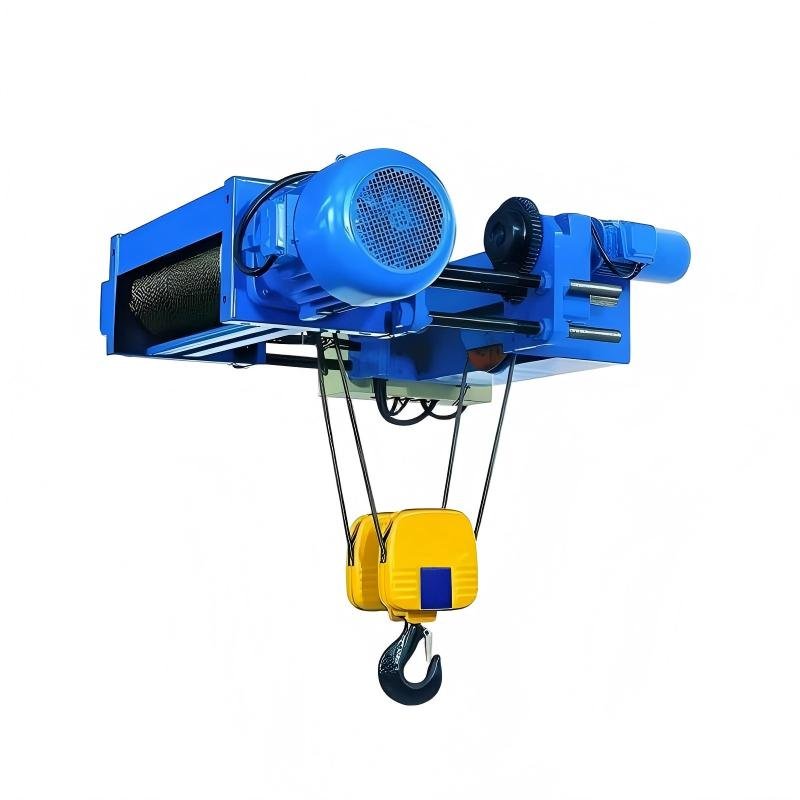

The complete machine is mainly composed of hoisting mechanism, low-headroom traveling trolley, traveling mechanism and electrical control system. It can realize vertical lifting and horizontal reciprocating movement of goods, featuring compact structure, small headroom distance, large effective lifting height and stable operation, and is specially suitable for working conditions with restricted vertical space.

As the core hoisting component, the low headroom wire rope electric hoist adopts an optimized side-mounted drum structure. The motor drives the reducer and the drum to rotate, realizing the winding and unwinding of the steel wire rope to complete the lifting and lowering of heavy loads.

The traveling trolley is closely attached to the lower part of the main beam rail, and its wheels move horizontally along the beam under the drive of the traveling motor. Coordinated with the hoisting movement, it can maximize the use of limited space to achieve material lifting and transportation at different positions, effectively solving the problem of insufficient lifting height in narrow spaces.

MecBase is a professional Chinese manufacturer, supplier and exporter of low headroom wire rope electric hoists, providing reliable, space-saving and cost-effective lifting solutions for industries such as machinery processing, warehousing, manufacturing, automobile manufacturing, logistics and storage.
