Flanged Wheels for Crane & Rail Systems
Flanged wheels are essential components in crane and rail-mounted systems, designed to ensure precise alignment and smooth movement along tracks. Featuring a raised flange on one or both sides, flanged wheels prevent derailment and enhance operational stability in heavy-duty industrial applications.
With high load-bearing capacity and excellent wear resistance, flanged wheels are widely used in overhead cranes, gantry cranes, transfer carts, rail-mounted equipment, and various material handling systems in factories, warehouses, ports, and steel plants.
Chinese Supplier & Global Exporter of Flanged Wheels
MecBase is a professional China flanged wheels manufacturer and supplier, specializing in crane wheel design, engineering calculation, and custom production. We provide high-quality flanged wheel solutions tailored to meet the demands of global industrial applications.
Whether you need single flange wheels, double flange wheels, or custom rail wheels, our engineering team can deliver optimized solutions based on your project requirements.
Technical Specifications of Flanged Wheels
The following technical specifications apply to our flanged wheels, designed for durability, precision, and long service life in demanding environments.
| Parameter | Specification |
|---|---|
| Material Grade | 4140/SCM440/42CrMo, 65Mn, 50SiMn, ZG35SiMn, QT800 |
| Rated Loading Capacity | 1 – 160 ton per wheel |
| Wheel Diameter | 250, 350, 400, 500, 600, 700, 800, 1000, 1200 mm |
| Flange Configuration | Single Flange (SF) / Double Flange (DF) |
| Heat Treatment | Quenching and Tempering |
| Quenching Depth | No less than 20mm |
| Working Temperature | -25℃ to +40℃ |
| Price Range | $750 – $4,500 per set |
Key Features of Flanged Wheels
✔ High Load-Bearing Capacity
Designed for heavy-duty industrial applications, supporting high wheel loads with stable performance.
✔ Excellent Wear Resistance
Manufactured from high-quality alloy steel with advanced heat treatment to ensure long service life.
✔ Precise Rail Guidance
Flanged design ensures accurate tracking on rails, reducing misalignment and operational risk.
✔ Anti-Derailment Design
Raised flanges effectively prevent wheel derailment and improve safety in crane operations.
✔ Low Maintenance Cost
Durable materials and optimized design reduce wear, downtime, and maintenance frequency.
Types of Flanged Wheels We Can Supply
Based on our manufacturing capabilities, we can supply the following types of flanged wheels for your rail system and material handling applications.

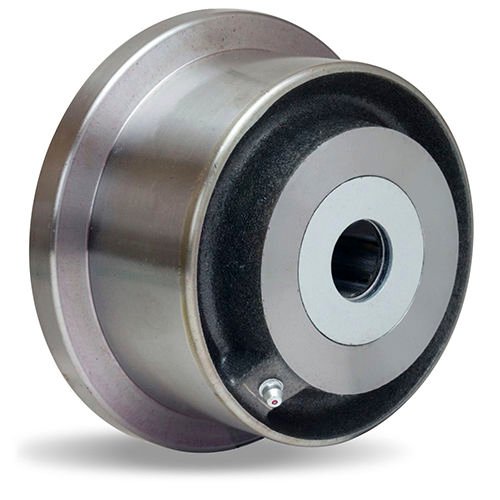

Single Flanged Wheel
Designed with one flange, suitable for applications where guidance is controlled by rail systems or side rollers.

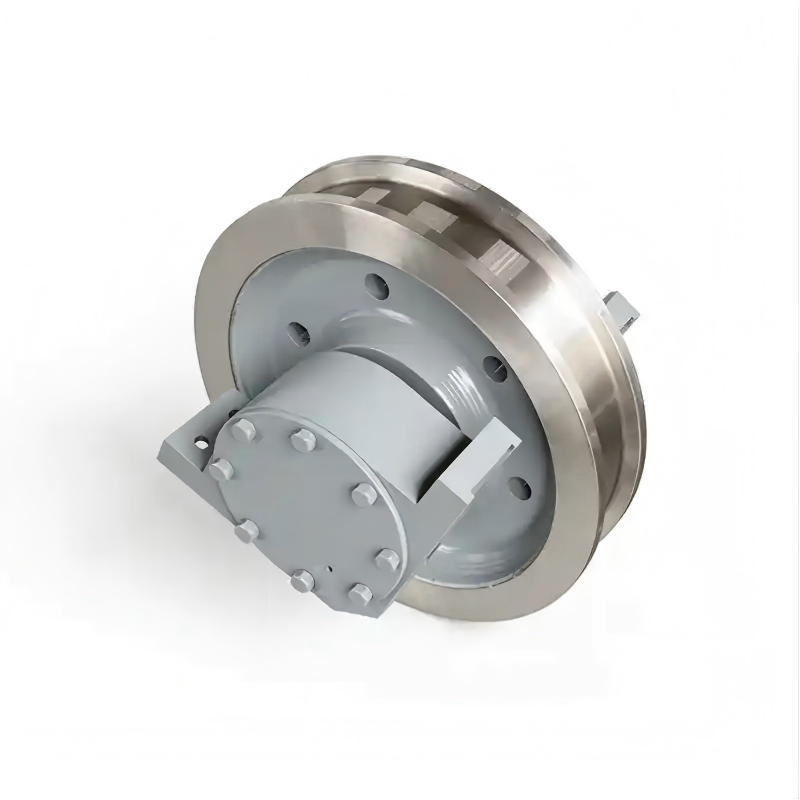

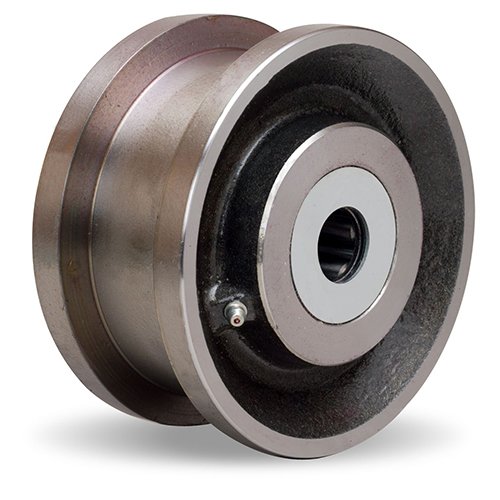

Double Flanged Wheel
Featuring flanges on both sides, providing maximum stability and commonly used in overhead and gantry cranes.
Transfer Cart Wheels
Used in rail-guided transport systems, ensuring smooth and accurate movement.

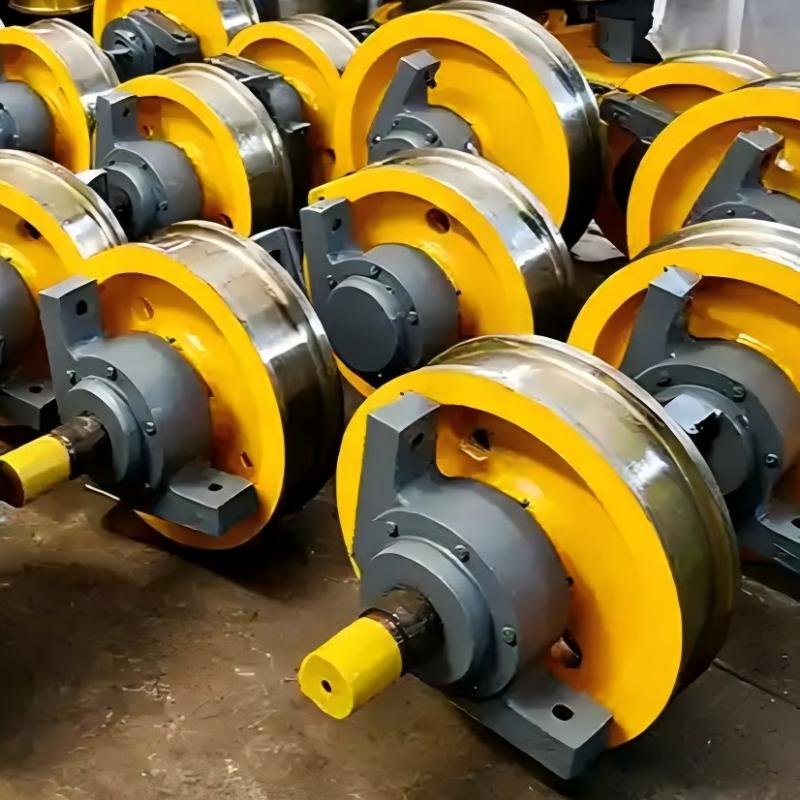

Crane Rail Wheels
Specially engineered for crane travel mechanisms, offering high strength and durability.
Applications of Flanged Wheels
Flanged wheels are widely used in:

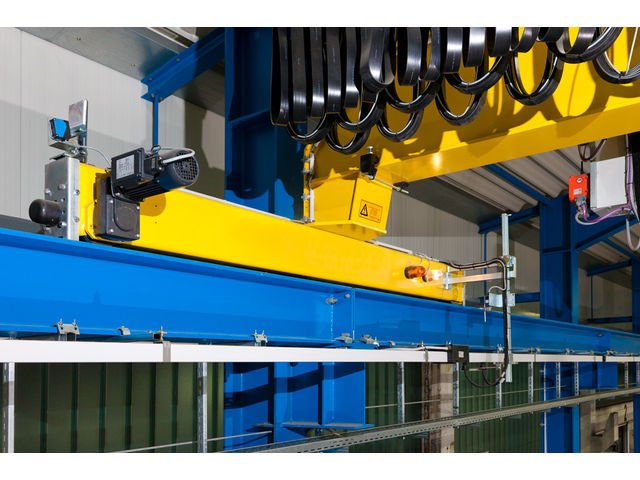

- Overhead crane systems
- Gantry crane systems
- Steel mills and heavy industries
- Port and shipyard equipment
- Rail transfer carts and automated systems
These wheels play a critical role in ensuring safe, efficient, and reliable operation of material handling equipment.
Flanged Wheels Manufacturing & Materials
Our flanged wheels are manufactured using high-quality materials such as:
- Forged steel (42CrMo, 65Mn)
- Cast steel (ZG55, 50SiMn)
- Alloy steel for heavy-duty applications
Advanced processes include:
- Precision machining
- Heat treatment (quenching & tempering)
- Surface hardening for wear resistance
These processes ensure high strength, durability, and long operational life.
Get Your Flanged Wheels Quote Today
If you are looking for:
- Flanged wheels manufacturers
- Crane flanged wheels
- Custom rail wheels
- Heavy-duty industrial wheels
👉 Contact us now for a free quotation and technical consultation.
FAQs About Flanged Wheels
A flanged wheel is a type of wheel with a raised edge (the "flange") protruding from the circumference, typically on one or both sides. This flange is designed to keep the wheel securely on a track or rail, providing lateral guidance and preventing derailment. Flanged wheels are also commonly known as track wheels, rail wheels, or channel wheels .
They are generally made up of a steel or cast iron outer tread, with the flange section carefully designed to enable the wheel to become self-guiding along the rail
Single flange provides basic guidance, while double flange offers higher stability for heavy-duty applications.
The flange serves as the primary safety and guidance feature of the wheel. Its core functions are:
- Lateral Guidance: The flange engages the side of the rail, keeping the wheel aligned and preventing it from slipping off the track, especially during cornering or when encountering track irregularities .
- Derailment Prevention: By acting as a mechanical stop, the flange ensures the wheel remains captured on the rail, which is critical for safety in overhead cranes and high-speed rail applications .
- Load Distribution: In certain designs, the flange helps distribute lateral loads encountered during operation.
Selecting the correct flanged wheel requires careful consideration of several factors :
Load Capacity: Calculate the total load per wheel using a safety factor (typically 1.5x to 2x the expected load). Formula:
[(Vehicle Weight + Max Load) × Safety Factor] / Number of Wheels.Rail Type and Size: The wheel profile must match your rail (e.g., flat-bottom, grooved, crane rail per DIN 536). The tread width should be slightly wider than the rail head .
Operating Environment: Consider temperature extremes, moisture, chemicals, or abrasive dust. Steel or nylon may be required for corrosive environments .
Speed and Duty Cycle: Higher speeds generally require steel wheels with precision bearings. Slower, heavy-load applications may favor cast iron or double-flanged designs .
Flange Configuration: Choose single flange for higher speeds and standard tracking; double flange for stability on uneven tracks or safety-critical overhead applications
