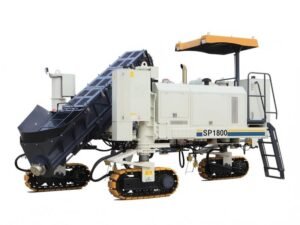

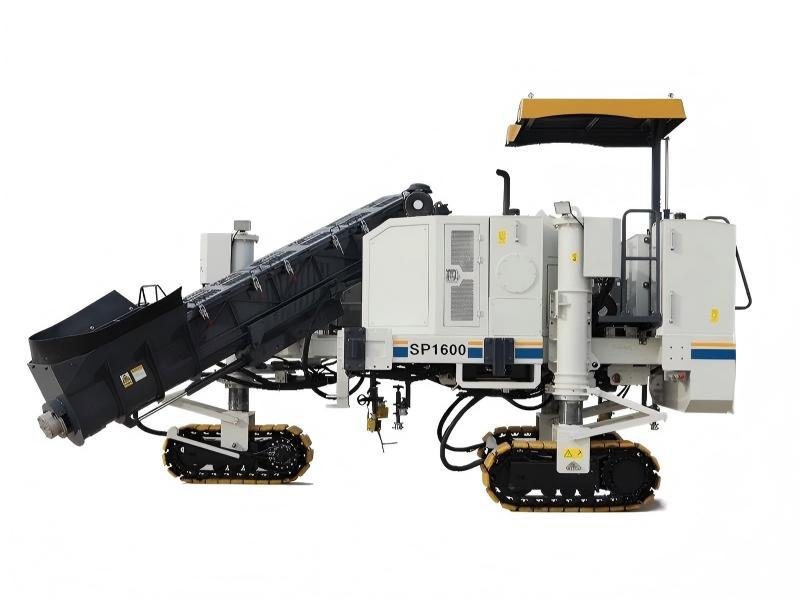

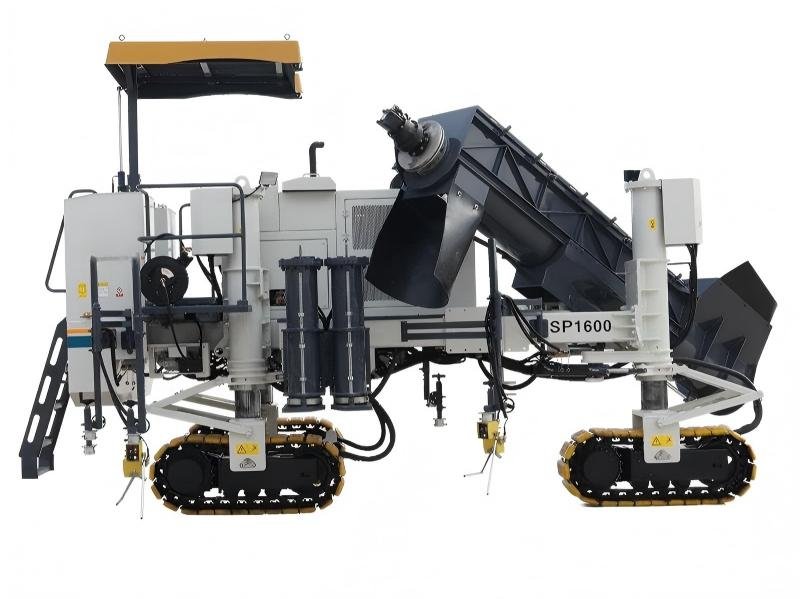

High-Efficiency Intelligent Concrete Slipform Curb Paver | Inset/Offset Dual-Purpose | Continuous Construction Solution
Looking for a solution to significantly improve the efficiency and quality of curb and gutter construction? Our Concrete Slipform Curb Paver is your ideal choice. Designed for highways, municipal projects, airports, and large parking lots, this machine utilizes advanced slipform paving technology to achieve continuous, automated, and high-precision forming of concrete structures.
MecBase Concrete Slipform Curb Paver Product Specifications Overview
| Category | Parameter | Value | Category | Parameter | Value |
|---|---|---|---|---|---|
| Basic Info | Brand | MecBase | Performance | Typical Paving Speed | 2-3 m/min |
| Place of Origin | China | Max. Paving Speed | 0-15 m/min | ||
| Machine Weight | 14,000 kg | Max. Paving Thickness | 1000 mm | ||
| Package Size | 7200*2900*3000 mm | Travelling Speed | 0-25 m/min | ||
| Single Gross Weight | 68,000 kg | Turning Radius | 0-100 cm | ||
| Selling Units | Single item | ||||
| Power System | Engine Brand | Yuchai | Quality & Service | Warranty | 1 Year |
| Engine Power | 36.8 kW / 2400 rpm | Video Inspection | Provided | ||
| Rated Power | 13 HP | Test Report | Provided | ||
| Diesel Tank | 90 L | Core Components | Listed Components | Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | |
| Hydraulic Tank | 110 L | Emphasized | Engine, Motor |
Why Choose Our Slipform Paver?
- Versatile and Adaptable: Unique modular design allows for quick mold changes, enabling easy pouring of various specifications of curbs, gutters, sidewalks, and safety barrier foundations. Compatible with both inset and offset construction, it performs flawlessly whether adjacent to existing pavement or on an independent subgrade.
- Extremely Efficient, Cost-Effective: Say goodbye to the tedious process of traditional formwork and segmental pouring. With a paving speed of 3-10 meters per minute and a daily output exceeding one kilometer, this machine reduces labor costs by over 70%, significantly shortens project timelines, and delivers outstanding comprehensive economic benefits.
- Superior, Consistent Quality: Full hydraulic drive and a high-precision vibration system ensure thorough concrete consolidation, free from honeycombing or surface defects. The automatic laser/sonar/GPS grade and slope control system guarantees exceptional alignment and elevation accuracy, resulting in high-strength, dimensionally uniform, and aesthetically straight finished products.
- Intelligent Operation, Rugged Durability: User-friendly control interface lowers the learning curve for operators. The chassis is constructed from high-strength steel, with key components sourced from internationally renowned brands, ensuring long-term stable operation and low failure rates even in harsh working conditions.
Core Application Scenarios:
- Curbs and gutters for expressways and national highways
- Urban road renovation and new construction projects
- Airport runway perimeter facilities
- Linear structures for large industrial parks and parking lots
- Landscape paths and bicycle lane construction
Contact us today for a customized solution and quote. Let our reliable equipment and professional technical support help you build your next landmark project!
