Chain Hoist
Chain hoists are compact lifting devices designed for overhead material handling systems. They consist of a motor (or manual hand chain wheel), gearbox, load chain, hook assembly, and braking system, enabling precise vertical lifting and lowering of loads. These hoists deliver efficient and reliable lifting solutions across a wide range of industrial environments. Whether referred to as a chain block, manual chain hoist, electric chain hoist, or chain pulley block, the core function remains consistent: safe and accurate load handling.
Chinese Supplier & Global Exporter of Chain Hoists
MecBase is a professional manufacturer, supplier, and exporter of chain hoists headquartered in China. We are committed to providing high-quality, versatile lifting solutions for workshops, warehouses, logistics centers, and industrial facilities worldwide. Our product range includes electric chain hoists, manual chain hoists, low-headroom chain hoists, stainless steel chain hoists, and explosion-proof chain hoists for hazardous areas.
Our chain hoists are engineered with maximum safety, stability, and durability as core principles. Manufactured in compliance with international standards (ISO, FEM, ASME B30.20), they ensure reliable performance, smooth lifting, and extended service life under continuous operation. We also supply chain hoists with trolley combinations and integrated hoist and crane systems.
Key Features of MecBase Chain Hoists
Load capacity from 0.25 ton to 20 ton (custom up to 50 ton)
Smooth lifting speed: 0.8–8 m/min
High working class: FEM 2M / 3M (ISO M5 / M6)
High-strength alloy steel load chain
Compact and lightweight design
Advanced safety features:
- Mechanical load brake
- Overload protection
- Limit switches
Low noise and high efficiency transmission
Easy installation and maintenance
Suitable for continuous industrial operation
Technical Specifications
| Parameter | Specification |
| Capacity | 0.25t – 20t (custom up to 50t) |
| Lifting Speed | 0.8 – 8 m/min |
| Working Class | FEM 2M / 3M (ISO M5 / M6) |
| Power Supply | 380V / 400V / 415V / 460V |
| Motor Power | 0.2 kW – 7.5 kW |
| Protection | IP54 / IP55 (optional IP65) |
| Control | Pendant / Remote / Manual |
Â
Types of Chain Hoists

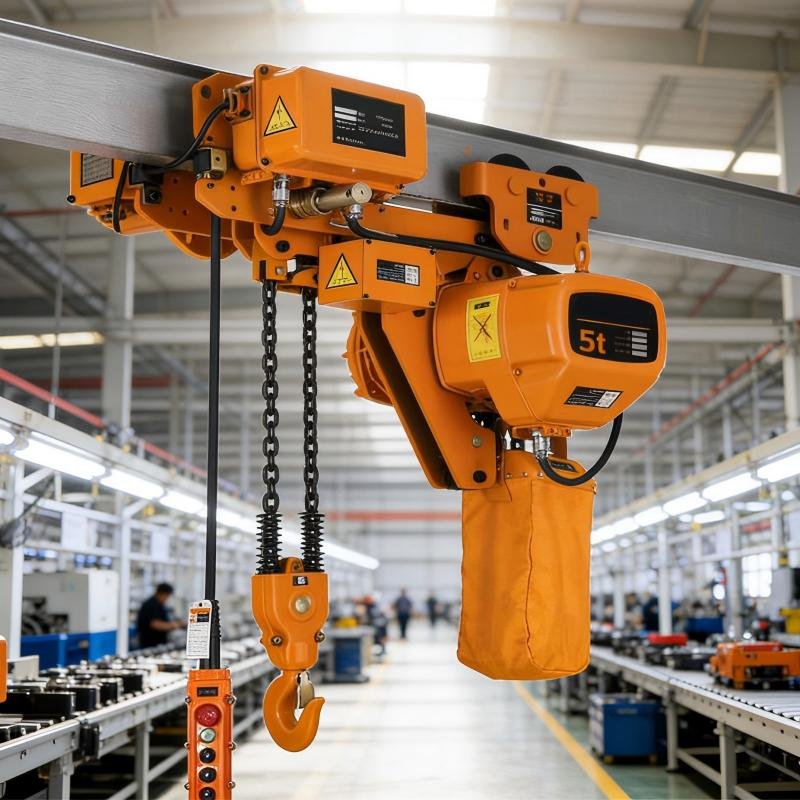

Electric Chain Hoist
The most commonly used type, ideal for frequent lifting operations in industrial environments.
Manual Chain Hoist (Chain Block)
Cost-effective and does not require power supply, suitable for remote or temporary applications.
Low-Headroom Chain Hoist
Designed for limited vertical space, maximizing lifting height in low-clearance environments.
Explosion-Proof Chain Hoist
Suitable for hazardous environments such as oil & gas, chemical plants, and mining industries (ATEX compliant).
Stainless Steel Chain Hoist
Designed for corrosive environments such as marine, food processing, and chemical industries.
Trolley-Mounted Chain Hoist
Allows horizontal movement along beams or crane systems for flexible material handling.
Applications of Chain Hoists
Chain hoists are widely used in:
- Manufacturing workshops (equipment maintenance, part handling)
- Warehouses and logistics centers (cargo lifting and storage)
- Construction sites (material lifting)
- Power plants and industrial facilities
- Ports, shipyards, and railway yards
- Crane systems (jib cranes, gantry cranes, monorails)
- Oil & gas and chemical industries
Core Components of Chain Hoists
- Load chain (alloy steel)
- Electric motor / manual drive system
- Gear reducer
- Brake system
- Hook assembly
- Frame / housing
- Limit switches
- Electrical control box
All components are engineered for safe and stable lifting performance.
Chain Hoist vs Wire Rope Hoist
| Feature | Chain Hoist | Wire Rope Hoist |
| Lifting Medium | Chain | Wire rope |
| Structure | Compact | Larger |
| Best For | Medium height, frequent use | High lift, heavy loads |
| Maintenance | Simple | More complex |
Get Your Chain Hoist Today
Looking for a reliable chain hoist supplier in China?
MecBase provides customized lifting solutions tailored to your application.
👉 Contact us now for a competitive quotation and expert support
FAQs About Chain Hoists
Electric chain hoists operate at 0.8–8 m/min, depending on configuration.
Consider load capacity, lifting height, working environment, and frequency of use.
Yes, explosion-proof chain hoists are designed for hazardous areas such as oil & gas and chemical industries.
